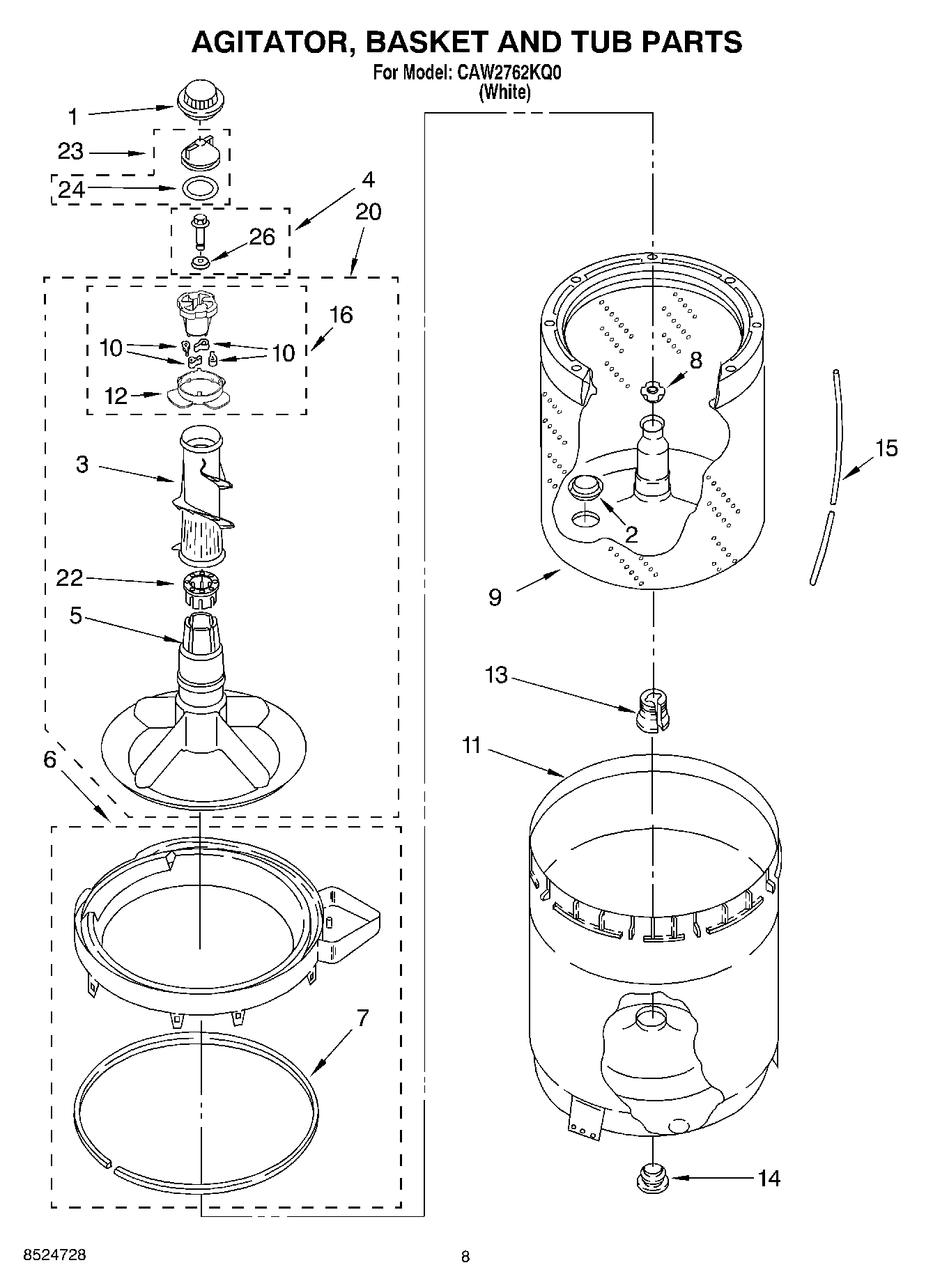

CAW2762KQ0 06 – AGITATOR, BASKET AND TUB

CAW2762KQ0 06 – AGITATOR, BASKET AND TUB

Written by

in

CAW2762KQ0 06 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2Snap-In-Plugs (4)
3WP3363003 Whirlpool Agitator Mover
4WP358237 Whirlpool Agitator Bolt
5AGITATOR
6Tub Ring & Gasket
7WP3976308 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9W10389329 Whirlpool Microwave Basket
1080040 Whirlpool Washer Agitator Dog Kit
1163849 Whirlpool Outer Tub Primary Assembly
12WP3363661 Whirlpool Bearing Cam
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
16285811 Whirlpool Washer Agitator Repair Kit
20Agitator, Asy (Complete)
22285587 Whirlpool Thrust Washer
23WPW10074580 Whirlpool Agitator Inner Cap and Seal
24WPW10072840 Whirlpool Seal Assembly
26WP3949550 Whirlpool Gasket Assembly
