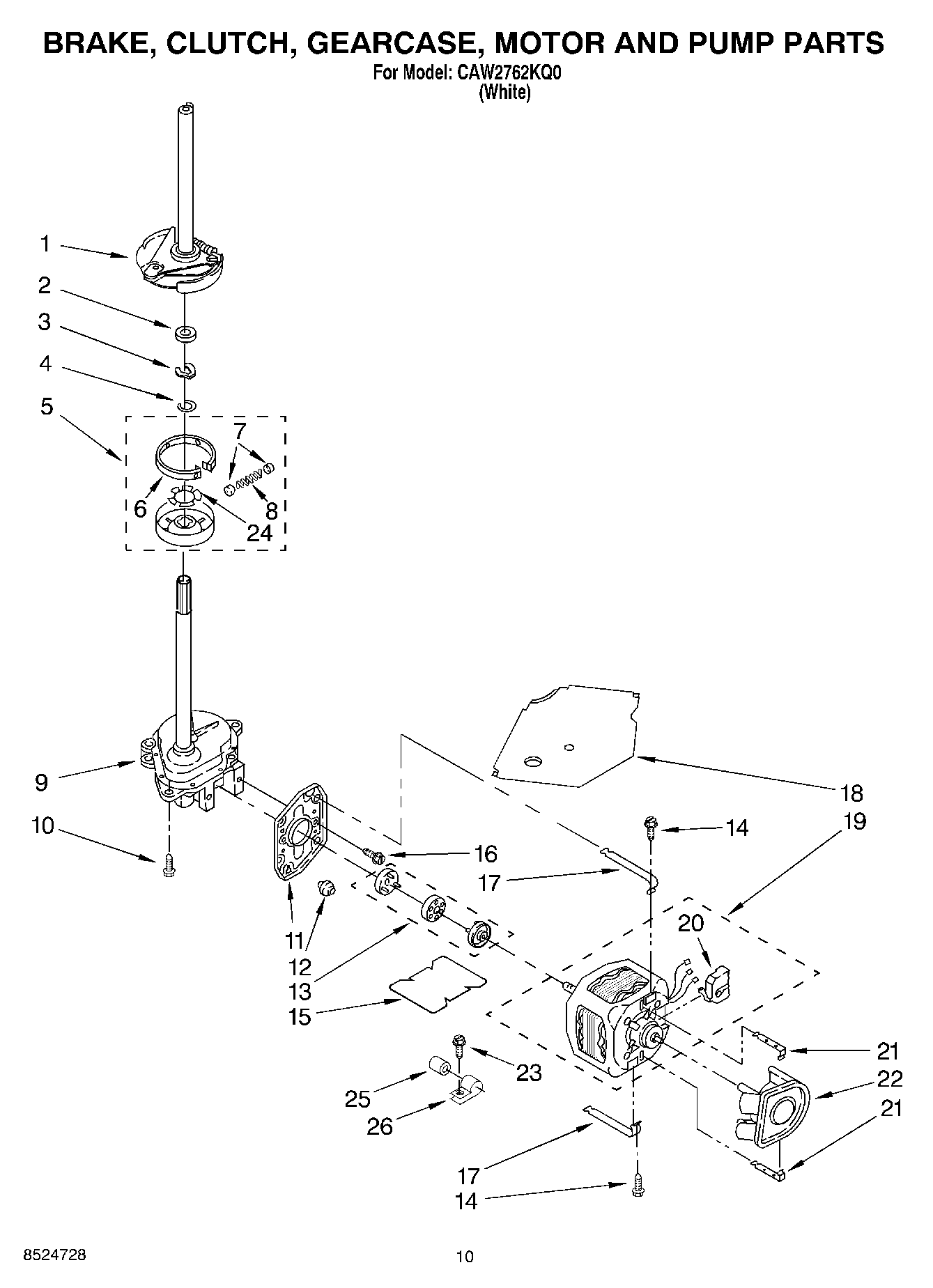

CAW2762KQ0 07 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Products

Position	Product
1	W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2	WP63292 Whirlpool Washer
3	WPW10080230 Whirlpool Ring
4	285353 Whirlpool Ring
5	WP8299642 Whirlpool Clutch
6	W10817888 Whirlpool Lining
7	WP62646 Whirlpool Cap
8	WP8559387 Whirlpool Spring
9	3360629 Whirlpool Washer Gearcase Transmission
10	WP3400516 Whirlpool Screw
11	WP62611 Whirlpool Plate
12	WP62691 Whirlpool Grommet
13	285852A Whirlpool Washer Direct Drive Heavy Duty Motor Pump Coupling
14	WP273556 Whirlpool Screw
15	WP3946532 Whirlpool Shield
17	WPW10086010 Whirlpool Motor Retainer Clip
18	W10838408 Whirlpool Motor Shield
19	WP661600 Whirlpool Drive Motor
20	Switch, Main Drive Motor
21	WP8546127 Whirlpool Retainer Clip
22	WP3363892 Whirlpool Water Pump
23	WP3390631 Whirlpool Screw
24	Clip, Anti-Rattle
25	CAPACITOR
26	357030 Whirlpool Clamp
