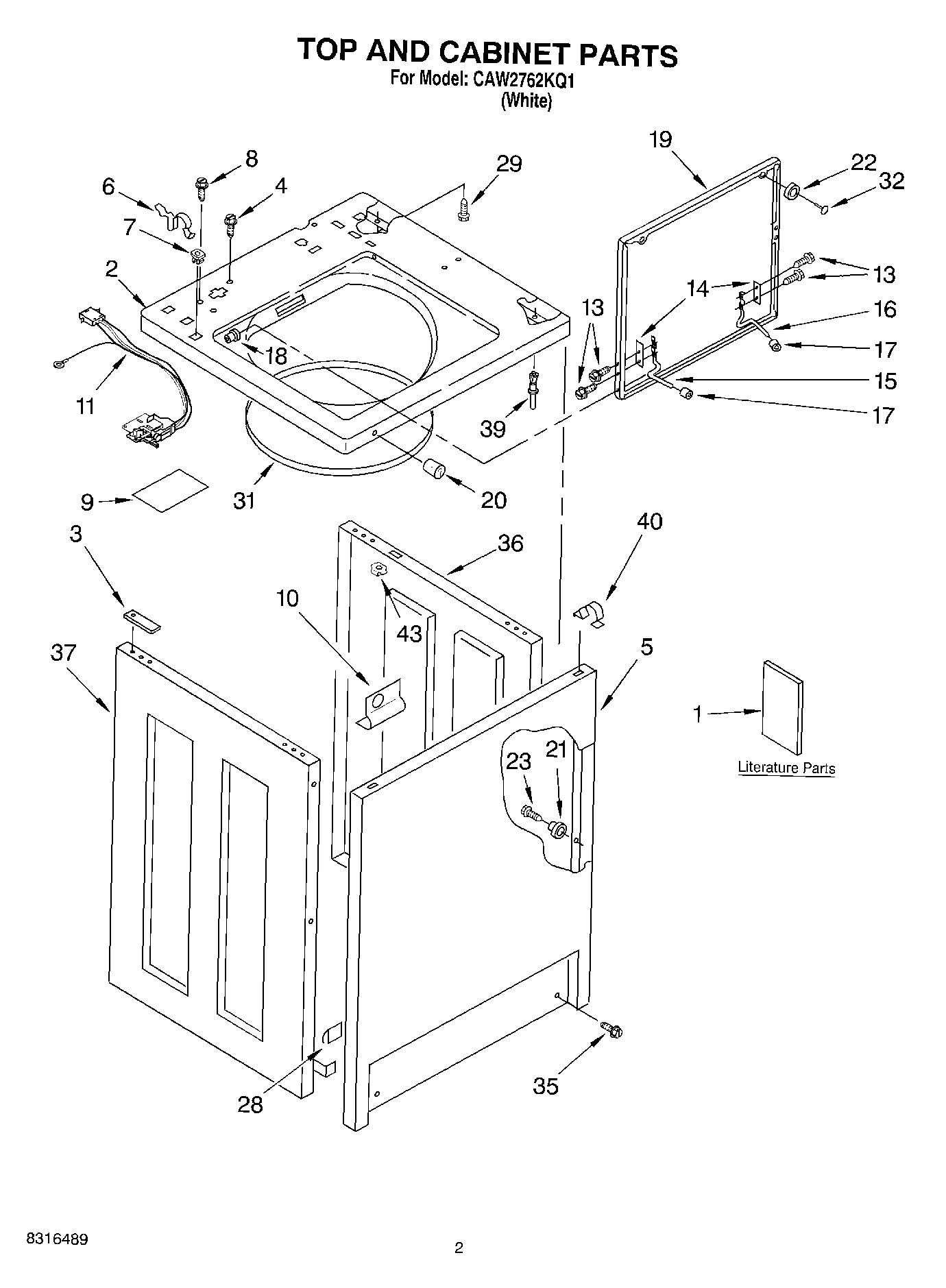

CAW2762KQ1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Literature Parts (Repair Parts List)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Installation Instructions)
2	Top
3	Spacer, Cabinet To Top (4)
4	WP3351614 Whirlpool Screw
5	WP3358500 Whirlpool Panel
6	WP62780 Whirlpool Cabinet Clip
7	Nut, Push-In (2)
8	Screw, Lid Switch (2)
9	Shield, Pressure Switch
10	Bracket, Lock
11	WP8054980 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP8524784 Whirlpool Hinge Assembly
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WPW10193854 Whirlpool Lid Assembly
20	WP387371 Whirlpool Plug
21	Locator (4)
22	BUMPER
23	WP9741232 Whirlpool Dishwasher Screw
28	WP98234 Whirlpool Nut
29	Screw (2)
31	WP8271956 Whirlpool Shield
32	WP356907 Whirlpool Rivet
35	WP3373329 Whirlpool Dishwasher Screw
36	Panel, R. H. (White)
37	Panel, L. H. (White)
39	Pin, Locator (2)
40	WP18776 Whirlpool Lock
43	WP90406 Whirlpool Nut
