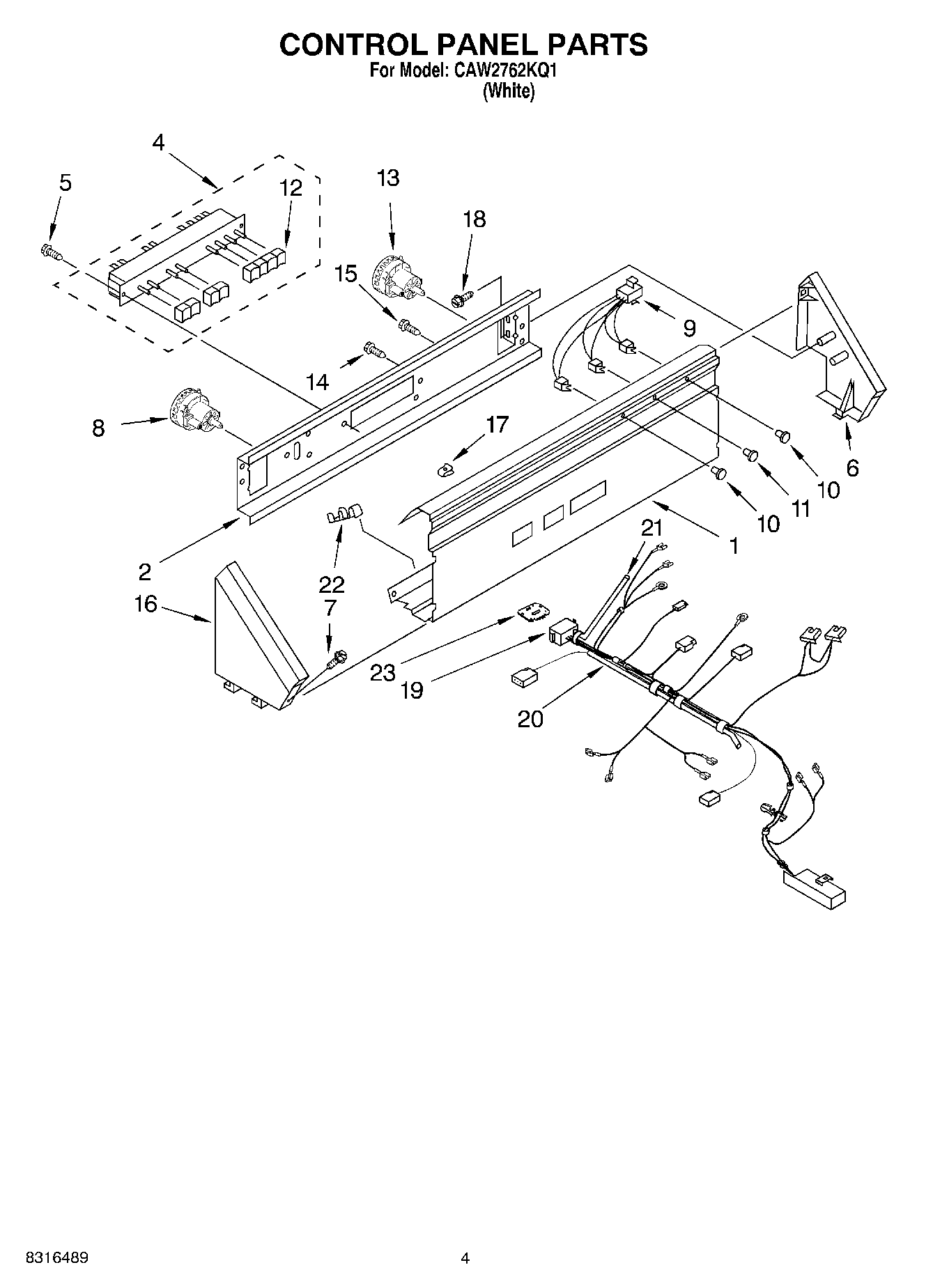

CAW2762KQ1 02 – CONTROL PANEL PARTS

CAW2762KQ1 02 – CONTROL PANEL PARTS

Written by

in

CAW2762KQ1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Console
2Bracket, Control
4Switch, Cycle Selector (Includes Illus. No. 12)
5WPW10139210 Whirlpool Screw
6End Cap (R.H.)
7WP8281182 Whirlpool Screw Assembly
8W10339319 Whirlpool Washer Water Level Switch
10WP3348109 Whirlpool Light Lens
11WP3348110 Whirlpool Light Lens
12SWITCH-PB
13Assembly, Pressure Switch-T
143400073 Whirlpool Screw
15WP90767 Whirlpool Screw
16W11686050 Whirlpool Drive Motor
17WP689559 Whirlpool Nut
18WPW10109200 Whirlpool Screw
19Harness, Wiring (For Detail See Page 12.) Als
21WP353244 Whirlpool Hose
22W10113937 Whirlpool Clamp
23Control, Automatic Temp. (ATC)
