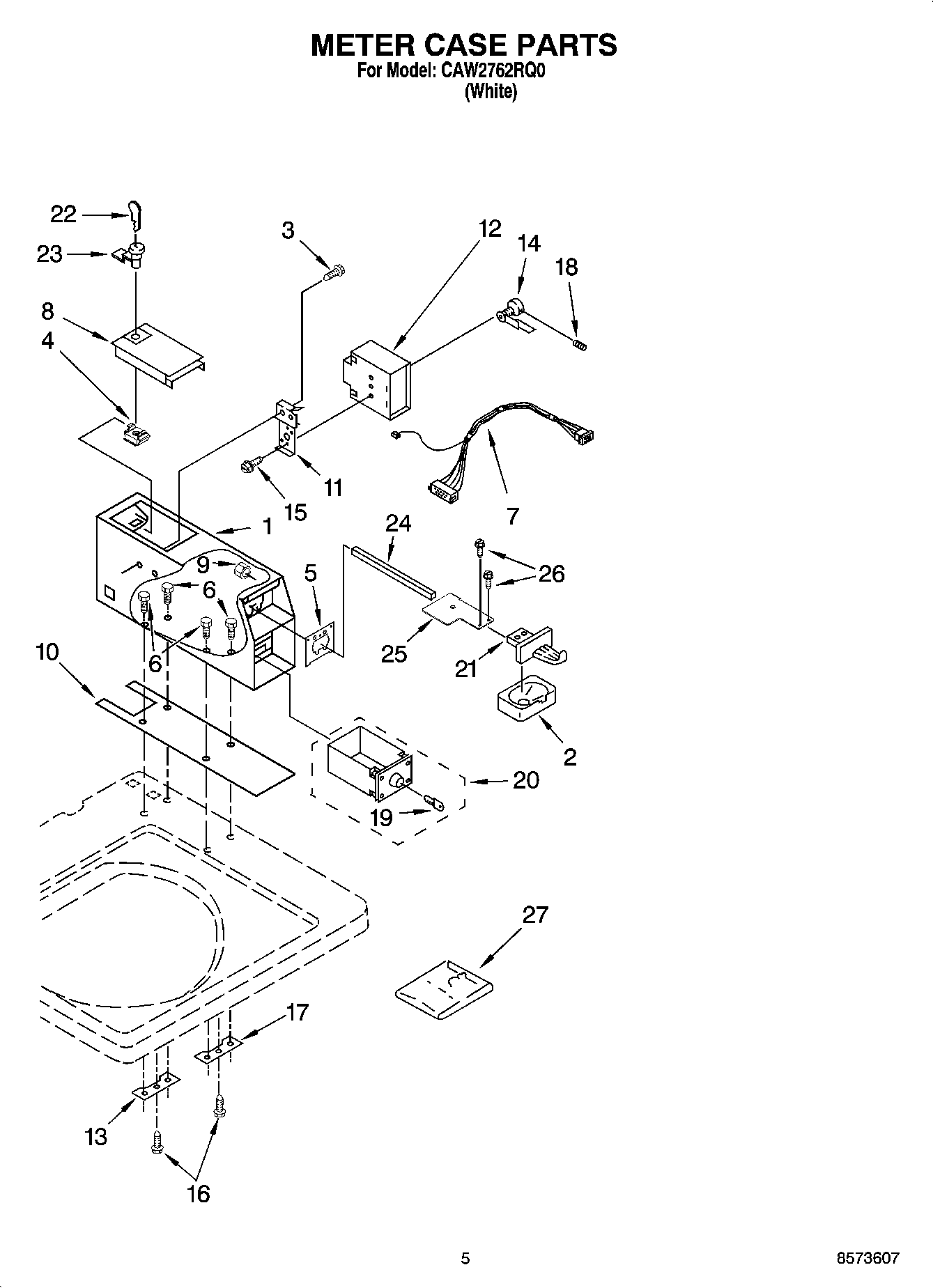

CAW2762RQ0 03 – METER CASE PARTS

Products

Position	Product
1	WPW10461200 Whirlpool Case
2	WP385421 Whirlpool Coin Operated Laundry Funnel
3	339805 Whirlpool Screw
4	WP90406 Whirlpool Nut
6	3353994 Whirlpool Screw Assembly
6	W11715721 Whirlpool Screw Assembly
7	Wire Harness, Timer
8	W11283272 Whirlpool Washer Dryer Meter Case Access Door
9	WP3400029 Whirlpool Dishwasher Nut
10	WP3954812 Whirlpool Cushion
11	Bracket, Timer
12	WP8575004 Whirlpool Timer
13	Plate, Mounting
14	Clutch, Timer
14	WP354987 Whirlpool C-Clip
15	WP3400064 Whirlpool Screw
16	W10841059 Whirlpool Screw
17	3347825 Whirlpool Plate
18	W10169313 Whirlpool Door Switch Kit
18	Setscrew, 10-32
19	Key, Money Box
20	W11190039 Whirlpool Coin Box Assembly
21	W11126319 Whirlpool Washer Dryer Coin Chute
22	4396669 Whirlpool Washer Dryer Door Key
23	W11315637 Whirlpool Lock Assembly
24	WP8576635 Whirlpool Bolt
25	W11318367 Whirlpool Extension
26	WPL 3400086
27	WPL 8316524
