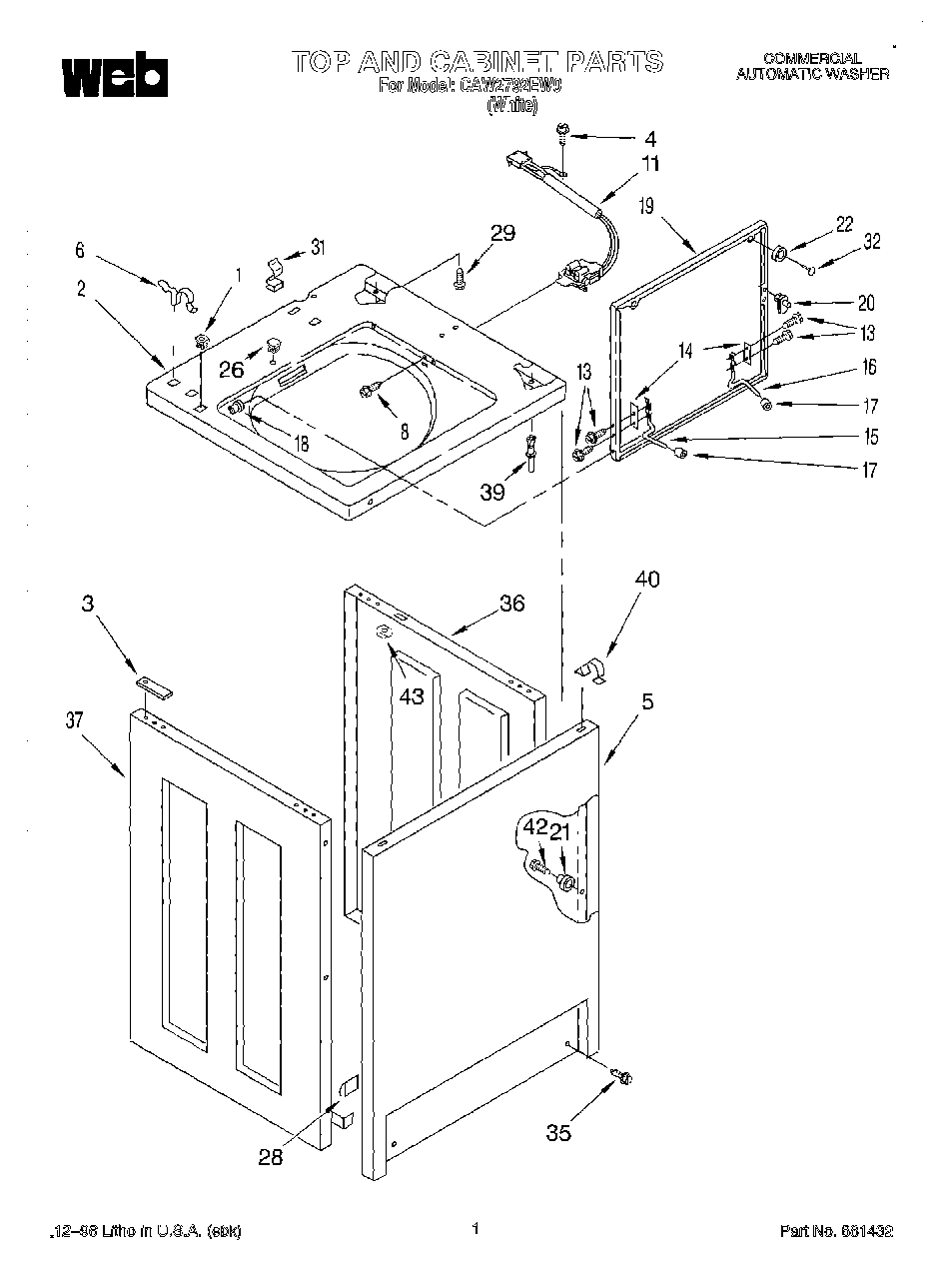

CAW2792EW0 01 – TOP AND CABINET

Products

Position	Product
1	Nut, Push-In (2)
2	Top (White)
3	Spacer, Cabinet To Top (4)
4	SCREW
5	Panel, Front (Almond)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	Switch, Lid
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (White)
20	WP358684 Whirlpool Strike Assembly
21	Locator (4)
22	BUMPER
26	Stop, Push-In Top
28	WP98234 Whirlpool Nut
29	Screw (2)
31	WP90016 Whirlpool Clip
32	WP356907 Whirlpool Rivet
35	WP3373329 Whirlpool Dishwasher Screw
36	Panel, R. H. (White)
37	Panel, L. H. (White)
39	Pin, Locator (2)
40	WP18776 Whirlpool Lock
42	WP9741232 Whirlpool Dishwasher Screw
43	WP90406 Whirlpool Nut
