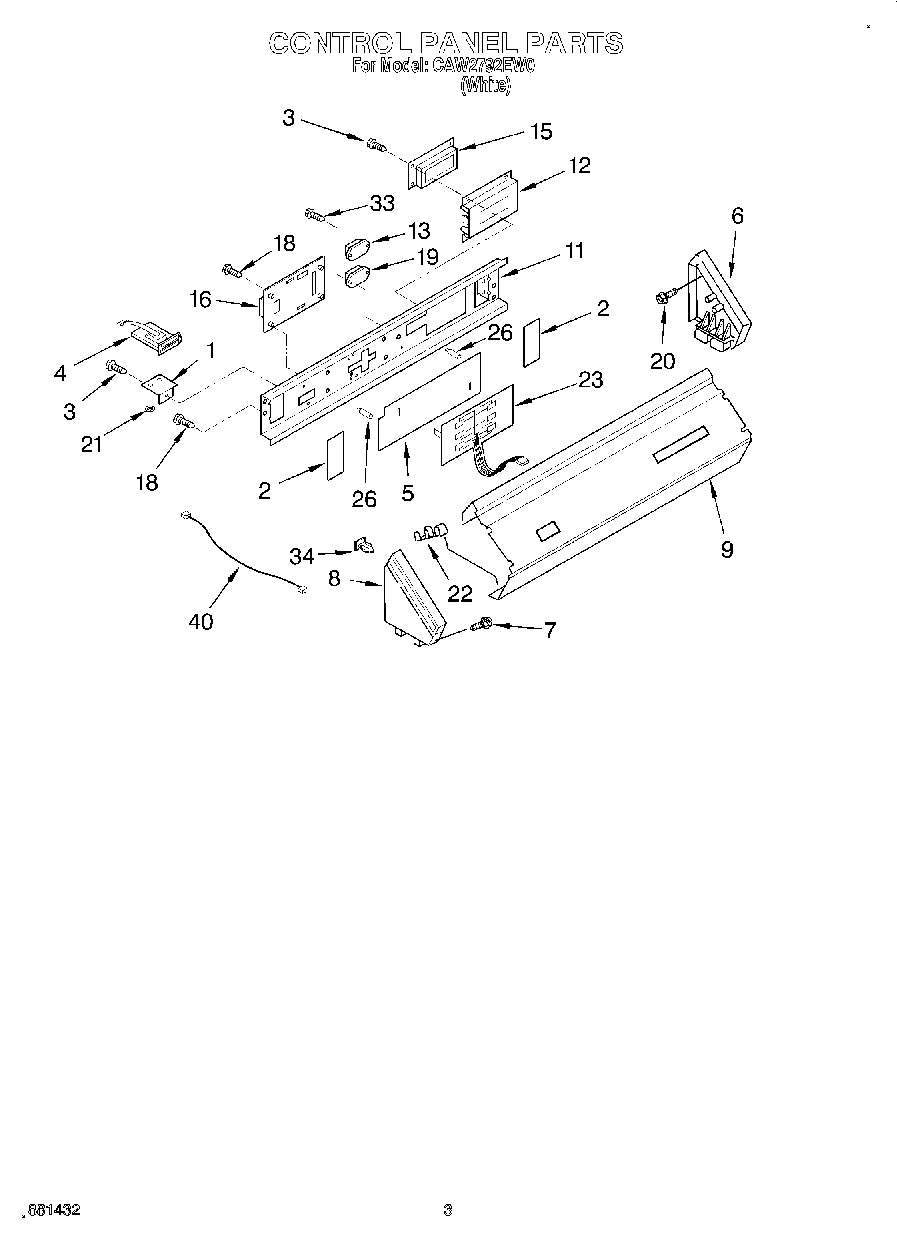

CAW2792EW0 02 – CONTROL PANEL

CAW2792EW0 02 – CONTROL PANEL

Written by

in

CAW2792EW0 02 – CONTROL PANEL

Products

PositionProduct
1Bracket, Card Reader
2Backer Plate, Side (2)
3WP90767 Whirlpool Screw
43949598 Whirlpool CD Reader
5Backer Plate
6Cap, End (R.H.)
7WP388326 Whirlpool Screw
8W11686050 Whirlpool Drive Motor
9Panel, Control
11Bracket, Control
12Bezel, Display
13Relay, Power 12VAC
15Display, Eletronic
16Board, Control
18WPW10366705 Whirlpool Screw
19Relay, Power (2)
20WPW10109200 Whirlpool Screw
21Nut, Push-In
22W10113937 Whirlpool Clamp
23Switch, Membrane
26Mounting Stud
33SCREW
34WP689559 Whirlpool Nut
40VFD Cable
