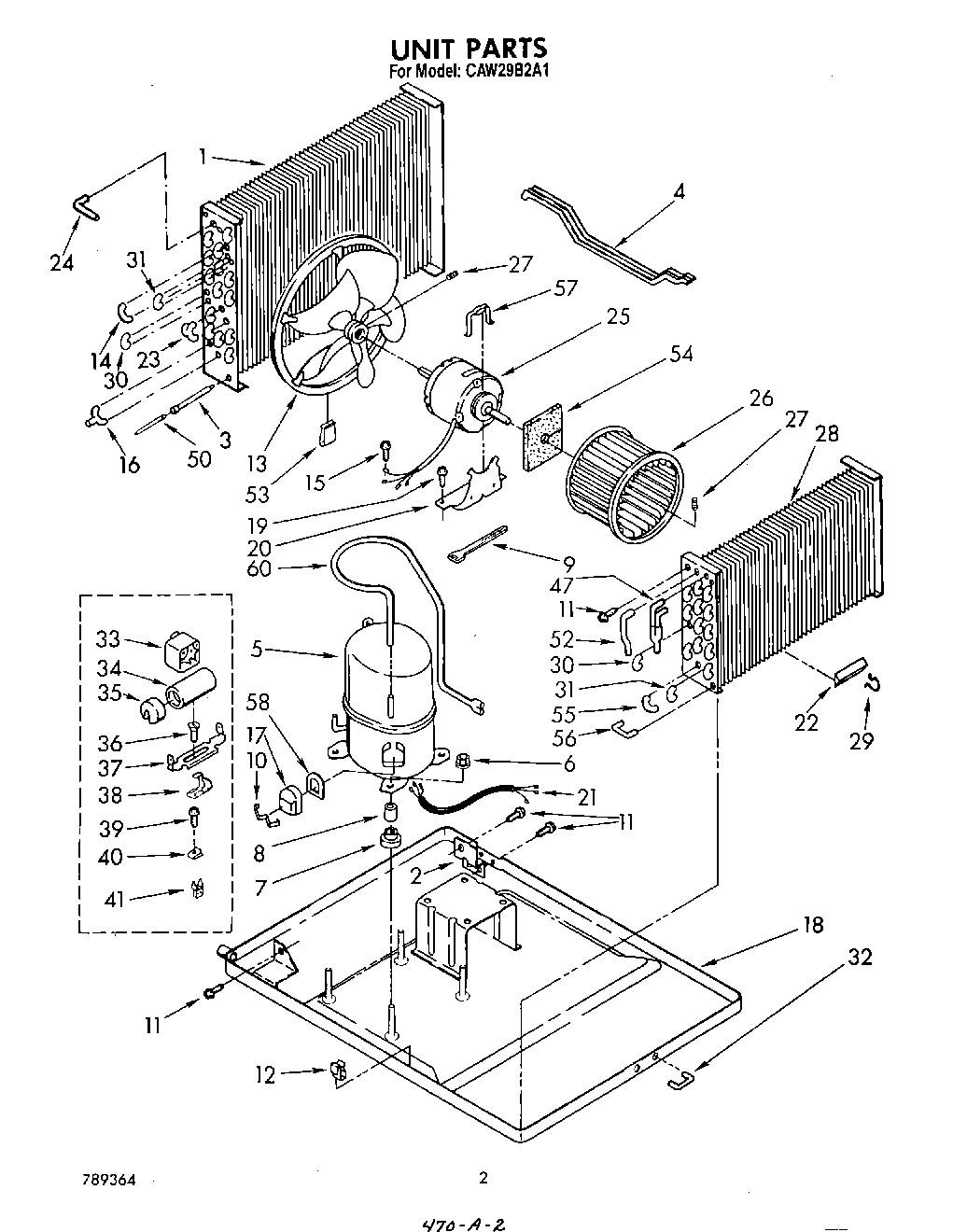

CAW29B2A1 02 – UNIT

Products

Position	Product
1	Condenser
2	Support, Condenser (RS)
3	Tube & Strainer (Includes Item 23)
4	Tube, Restrictor (3)
5	Compressor
6	Locknut (3)
7	Grommet (4)
8	Sleeve (4)
9	WPW10339879 Whirlpool Wire Tie
10	Strap, Terminal Cover
11	WP308685 Whirlpool Microwave Screw
11	WP489069 Whirlpool Compactor Screw
12	Clamp, Restrictor Tube
13	Blade
14	Bend, Return Evaporator (4)
15	WPW10141604 Whirlpool Screw
16	Bend, Return (3-Way)
17	Cover, Terminal
18	Base
19	Screw, 1/4 x 5/8
20	Cradle, Motor (2)
21	Harness, Wiring
22	Anticipator
23	Bend, Return 3-Way
24	Tube, 90~ Connect (2)
25	Motor, Fan
26	Wheel, Blower
27	Setscrew, 5/16 x 1/4
28	Evaporator Assembly
29	Clip (2)
30	Bend, Return Evaporator (11)
31	Bend, Return Evaporator (4)
32	WPL 647971
33	Relay (Component Of Start Kit)
34	Capacitor (Component Of Start Kit)
35	Cap, Capacitor (Component Of Start Kit)
36	Screw, 10 x 5/8 (Component Of Start Kit)
37	Bracket, Capacitor (Component Of Start Kit)
38	Multiplier, Terminal (Component Of Start Kit)
39	WP965173 Whirlpool Dishwasher Screw
40	488660 Whirlpool Refrigerator Nut
41	Clip, Terminal (Component Of Start Kit)
47	Tube, Outlet Assembly
50	Strainer
52	Tube, Outlet (Rear)
53	Clip, Balancing
54	Seal, Shaft
55	Bend, Return
56	Bend, Return
57	WPY015825 Whirlpool Motor Clip
58	Gasket, Term Cover
60	Oil, Turbine 1 Fl. Oz.
60	WPL 484220
60	VALVE, ACCESS (5/8“)
60	978026 Whirlpool Refrigerator Primary Valve
60	Tube, Suction
60	978027 Whirlpool Refrigerator Primary Valve
60	WP978025 Whirlpool Refrigerator Valve
60	No Drip Tape (For Sweating Tubes)
60	Kit, Evaporator Repair (Aluminum Epoxy)
60	978030 Whirlpool Refrigerator Valve
60	VALVE, ACCESS (1/2“)
60	WPL 485883
