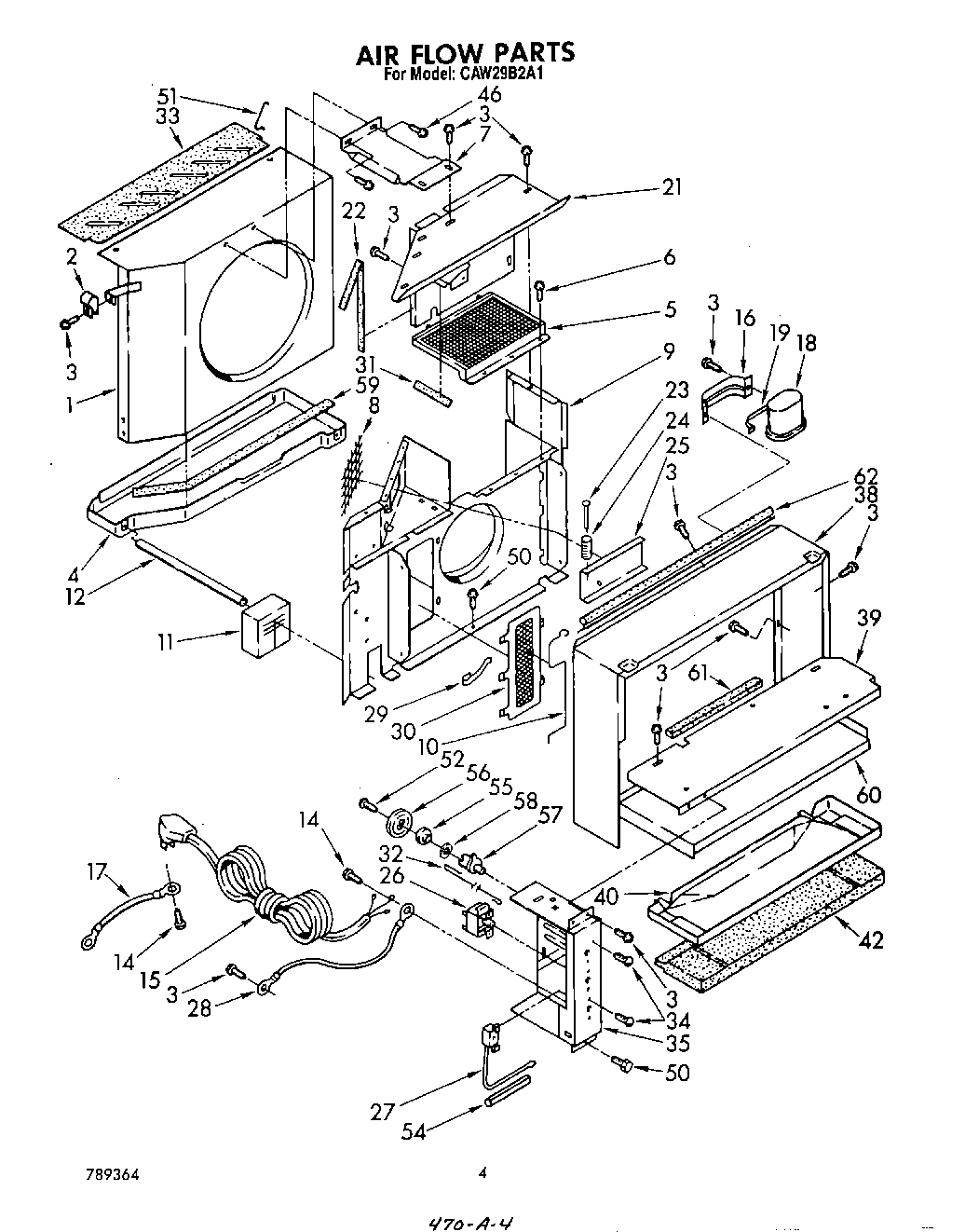

CAW29B2A1 03 – AIR FLOW

Products

Position	Product
	WPL LIT951026
	Guide, Use And Care
	WPL LIT789364
	WPL LIT953092
1	xShroud
2	Clamp
3	WP308685 Whirlpool Microwave Screw
3	WP489069 Whirlpool Compactor Screw
4	Pan, Condenser (Includes Illus. 59)
5	Guard, Evaporator Impeller
6	WP488729 Whirlpool Refrigerator Door Screw
7	Support, Unit
8	Screen
9	Wall, Dividing
10	Actuator, Fresh Air Door
11	Seal, Tube Line
12	Tube, Right
12	Tube, Left
14	WPW10141604 Whirlpool Screw
15	Cable, Appliance
17	Ground Wire
18	Capacitor, Running
19	Bracket (Upper)
21	Plate, Back
22	Seal, Lower (R.S.)
22	Seal, Top (L.S.)
23	Pin
24	Spring, Hinge
25	Door
26	Switch, Rotary
27	Control, Temperature
28	Wire, Ground
29	Spring, Fresh Air Door
30	Fresh Air Door Assembly
31	WP854334 Whirlpool Air Conditioner Sealing Strip
32	Wire, Fresh Air Control
32	Wire, Exhaust Control
33	Insulation, Condensate Shroud
34	Screw, 6-32 x .175
35	Box, Control
38	Cover, Air Duct
39	Cover, Evaporator
40	Pan, Evaporator
42	Insulation
46	Screw, 8 x 3/8
50	WP965173 Whirlpool Dishwasher Screw
51	Clip, Shroud (2)
52	WP98165 Whirlpool Screw
54	Insulation, Sleeve
55	Bushing, Shaft
56	Cam, Fresh Air & Exhaust
57	Shaft, Fresh Air & Exhaust
58	Washer
59	Seal (2)
60	Cover (Includes Illus. 61)
61	Seal, Strip
62	WPL 649939
62	Lacquer, Starlight Gray (1/2 Pt. Uncut)
62	212643 Whirlpool Refrigerator Permagum Sealer
62	Wire, Red, (25 Ft.)
62	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
62	Insulation, Fiberglass (1/4“ x 24“ x 48“)
62	Wire, 25“ Roll (White 12 GA.)
62	Wire, 25“ Roll (Black 12 GA.)
62	Seal, Cabinet Top
62	Cover, Winter (28 x 19 x 31“)
