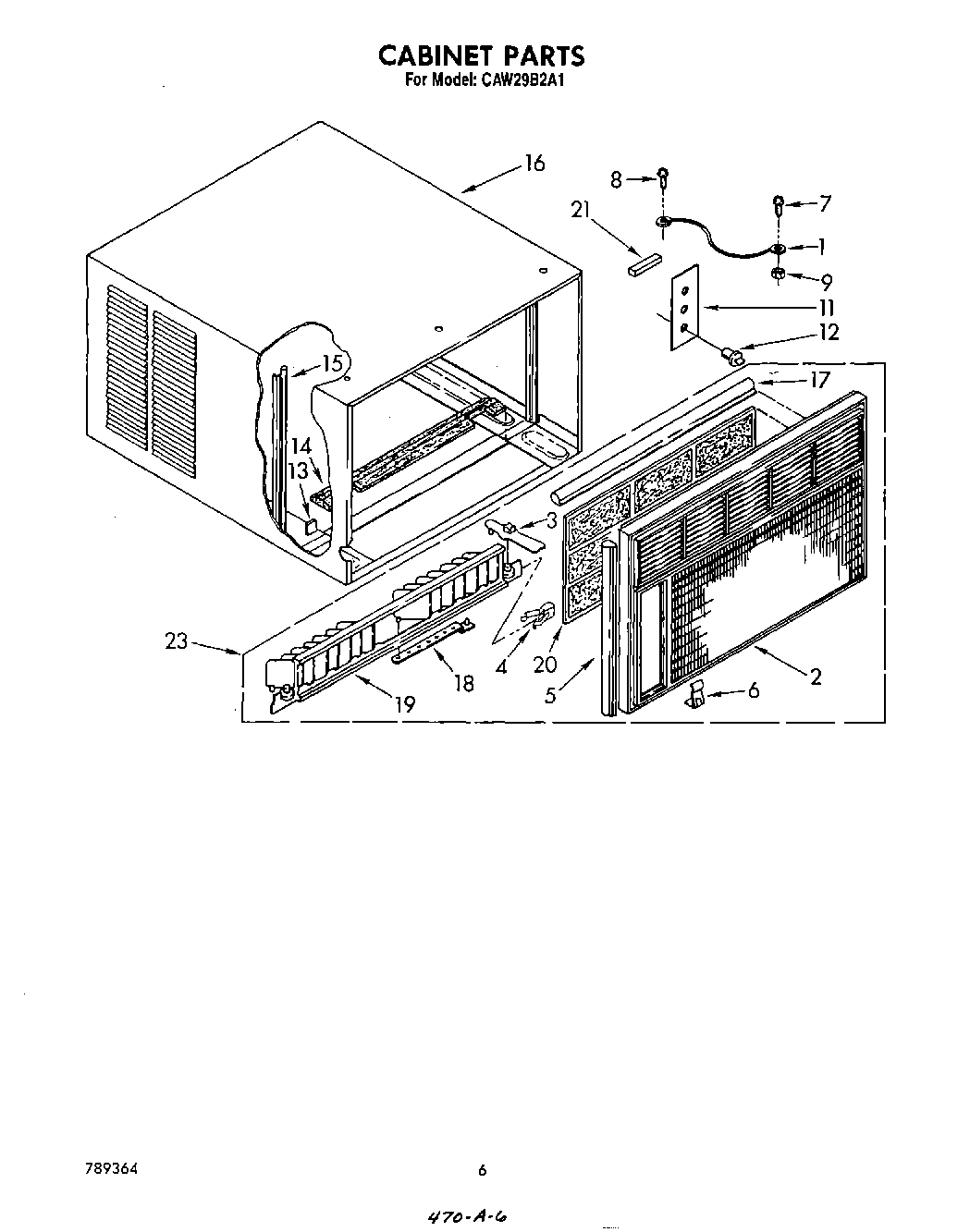

| 1 | Wire, Ground |
| 2 | Cabinet Front |
| 4 | Detent Spring (2) |
| 5 | Seal, Side (2) |
| 6 | Clip, Front (4) |
| 7 | Screw, 8 x 3/8 |
| 8 | Screw, 8 x 3/8 |
| 9 | WP486255 Whirlpool Air Conditioner Nut |
| 11 | Plate, Escutcheon |
| 12 | Knob, Control (3) |
| 13 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 14 | Seal, Bottom |
| 15 | Seal, Side (2) |
| 16 | Cabinet |
| 17 | Seal, Top & Bottom (2) |
| 18 | Link (2) |
| 19 | Handle, Vertical Louver |
| 20 | Filter |
| 21 | Spacer, Escutcheon (2) |
| 23 | Front, Complete |
