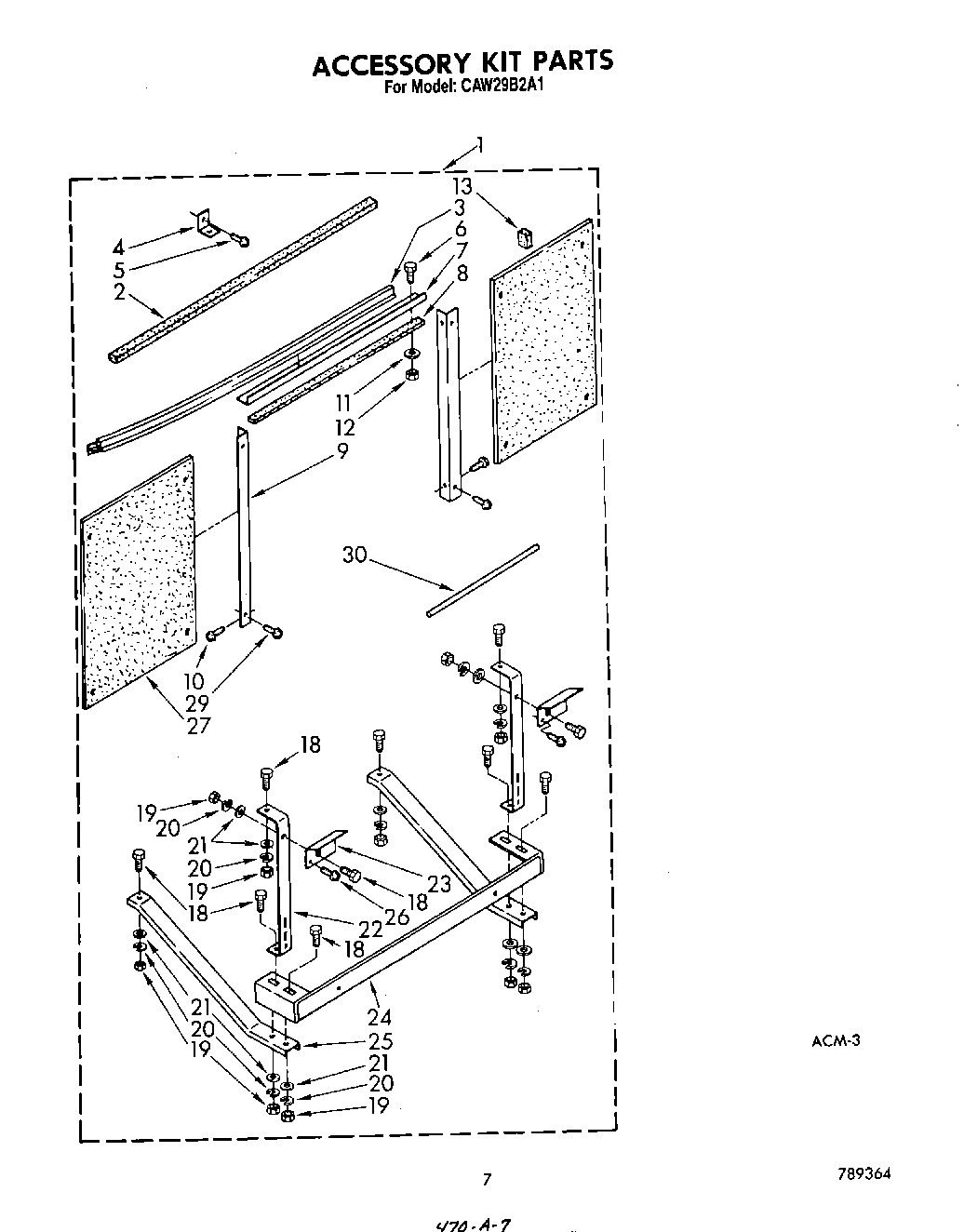

CAW29B2A1 05 – ACCESSORY KIT , LIT/OPTIONALadmin2025-04-26T12:08:13+00:00CAW29B2A1 05 – ACCESSORY KIT , LIT/OPTIONAL
Products
| Position | Product |
|---|
| Installation Instructions (Standard Installation Kit) |
| 1 | Standard Installation Kit |
| 2 | Gasket, Meeting Rail |
| 3 | Gasket, Sash |
| 4 | Bracket |
| 5 | Screw, Wood 8-15 x .750 |
| 6 | Bolt, 10 x 3/8 |
| 7 | Angle, Top |
| 8 | Strip, Seal |
| 9 | Angle (2) |
| 10 | Screw, Repair |
| 11 | Washer (3) |
| 12 | Nut, Hex |
| 13 | Spacer, Block (4) |
| 18 | Bolt, 1/4 x 3/4 (6) |
| 19 | Nut, Hex (6) |
| 20 | Lockwasher (6) |
| 21 | WP120393 Whirlpool Washer Assembly |
| 22 | Support, Extension (2) |
| 23 | Bracket, Sill Mounting (2) |
| 24 | Bracket, Support |
| 25 | Support, Caninet (2) |
| 26 | Wood Screw, 10 x 1 |
| 27 | Board, Filler |
| 29 | WP965173 Whirlpool Dishwasher Screw |
| 30 | 212643 Whirlpool Refrigerator Permagum Sealer |
