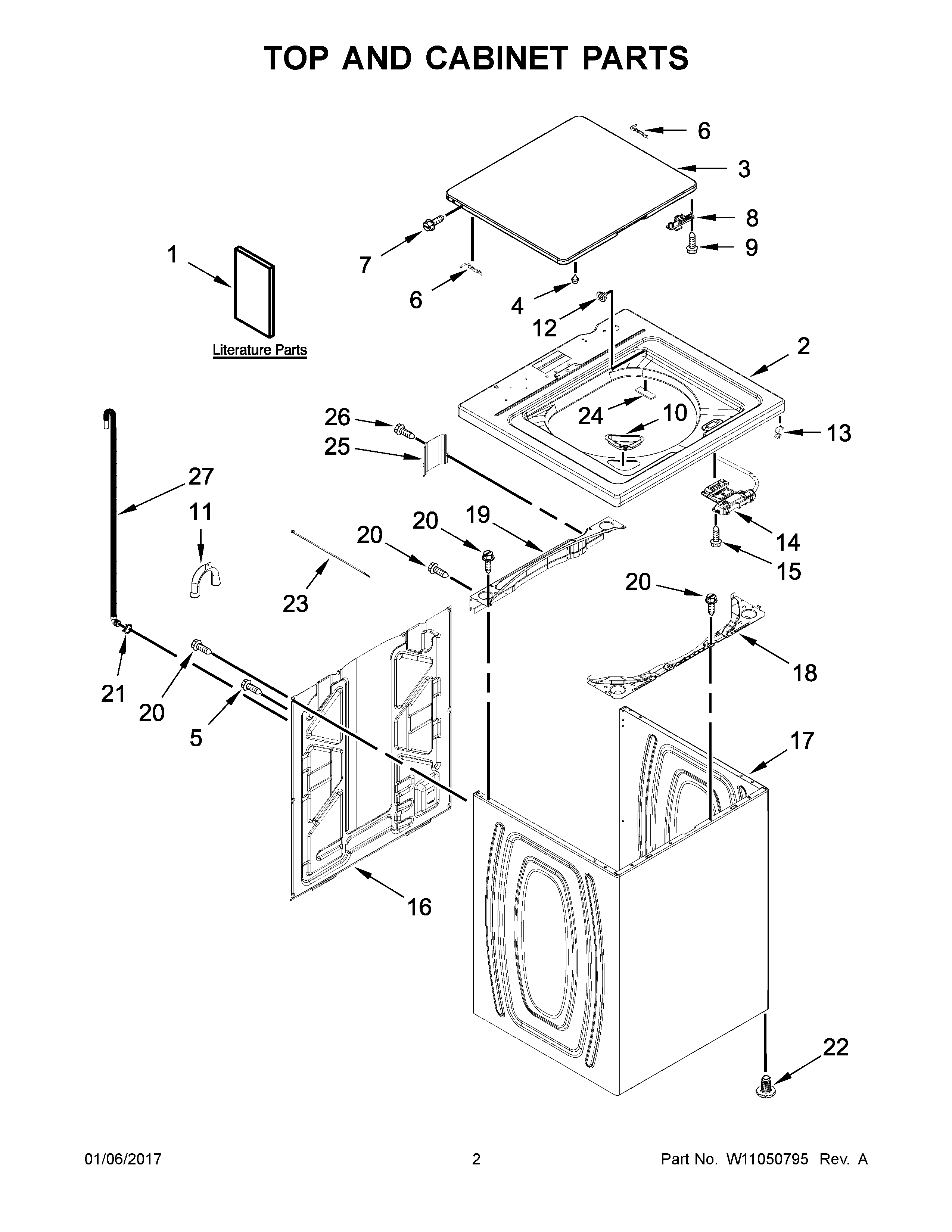

CAW42114GW0 02 – TOP AND CABINET PARTS

CAW42114GW0 02 – TOP AND CABINET PARTS

Written by

in

CAW42114GW0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1DENERGY GUIDE
1BQUICK START GUIDE
1AUSE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
1CTECH SHEET
2W11211509 Whirlpool Top Assembly
3W10860912 Whirlpool Lid
4WP9724509 Whirlpool Bumper
5WP9740848 Whirlpool Dishwasher Screw
6AWP54583 Whirlpool Hinge
6WP91770 Whirlpool Hinge
7SCREW
8W10837741 Whirlpool Washer Lid Strike
9WPW10273971 Whirlpool Screw
10WPW10192089 Whirlpool Washer Bleach Dispenser
11WPW10280024 Whirlpool Retainer
12WP21258 Whirlpool Washer Lid Hinge Bearing
13WP90016 Whirlpool Clip
14LATCH-WASHER LID
15W11568617 Whirlpool Screw
16W11417171 Whirlpool Rear Panel
17W10676680 Whirlpool Cabinet
18W11695476 Whirlpool Brace Support
19W11712680 Whirlpool Commercial Part Brace
20WP489069 Whirlpool Compactor Screw
21WP356138 Whirlpool Hose Clamp
22WPW10687506 Whirlpool Washer Leveling Leg
23WPW10339879 Whirlpool Wire Tie
24W10684258 Whirlpool Pad
25W10648853 Whirlpool Cover Assembly
26W10846509 Whirlpool Screw
27W11244231 Whirlpool Hose
