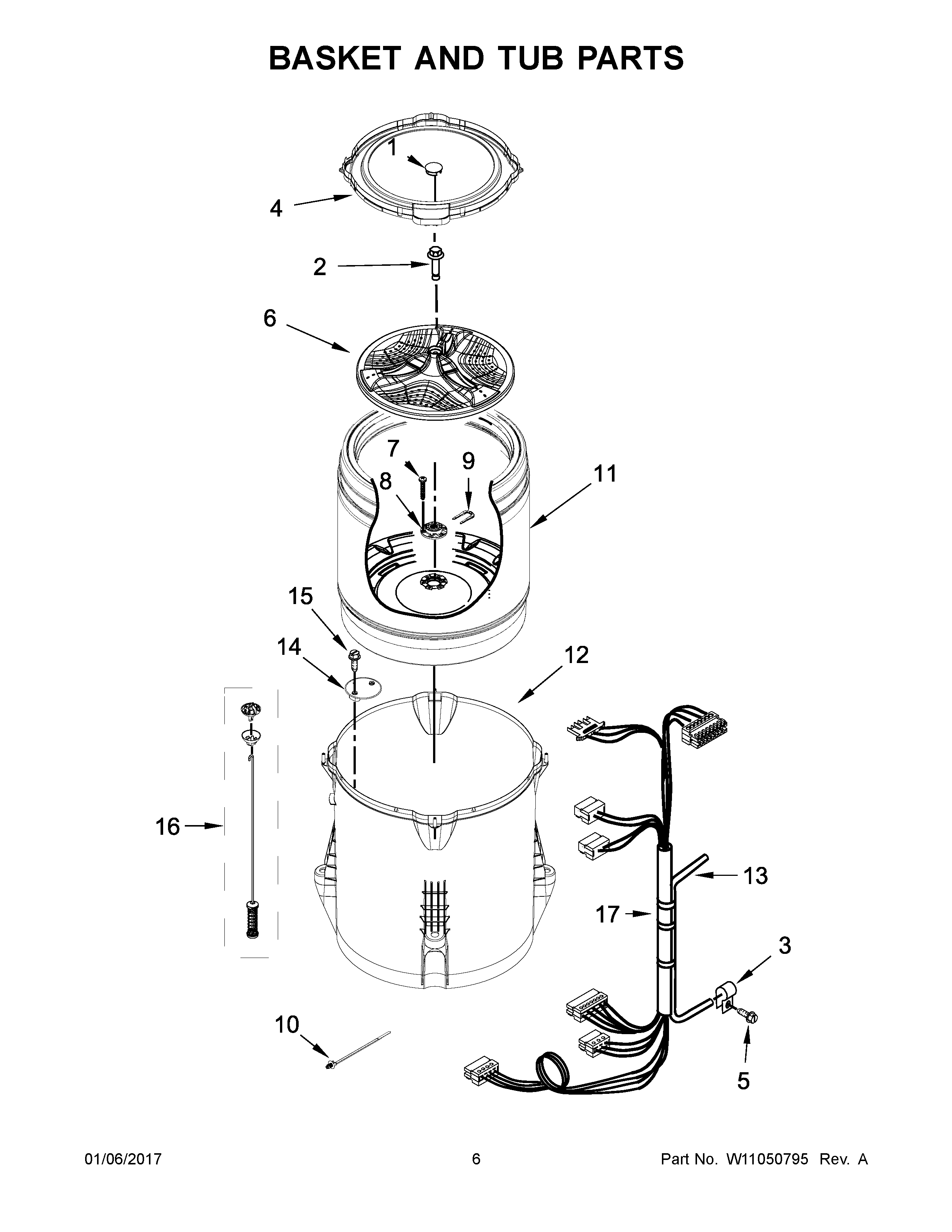

CAW42114GW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W10793634 Whirlpool Dispenser
2W10752187 Whirlpool Screw
3W10005430 Whirlpool Clamp
4W10849477 Whirlpool Tub Ring
5WPW10109200 Whirlpool Screw
6AGITATOR
7WP8533953 Whirlpool Screw
8W10528947 Whirlpool Washer Drive Hub Assembly
9RETAINER
10WPW10339879 Whirlpool Wire Tie
11W10752719 Whirlpool Basket Assembly
12W11219115 Whirlpool Outer Tub
13WP353244 Whirlpool Hose
14WPW10215093 Whirlpool Filter
15WP8533928 Whirlpool Refrigerator Screw
16SUSPENSION
17W11095106 Whirlpool Wire Harness
