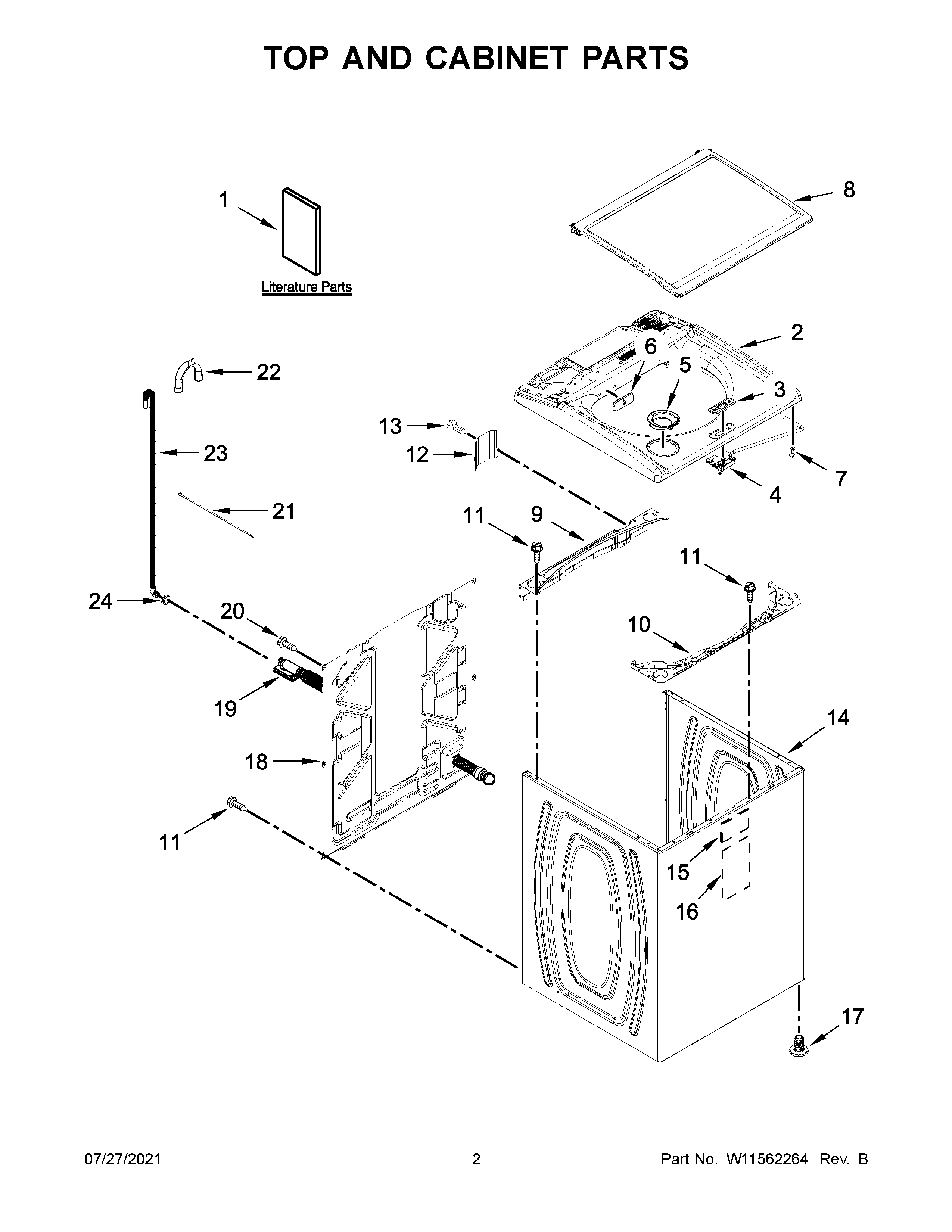

CAW45125LW0 02 – TOP AND CABINET PARTS

CAW45125LW0 02 – TOP AND CABINET PARTS

Written by

in

CAW45125LW0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CQUICK START GUIDE
1BENERGY GUIDE
1ATECH SHEET
1OWNERS MANUAL
2W11513254 Whirlpool Top
3W11643703 Whirlpool Bezel
4LATCH
5W11234069 Whirlpool Dispenser
6W11396263 Whirlpool Bezel
7WP90016 Whirlpool Clip
8W11513252 Whirlpool Lid Assembly
9W11712680 Whirlpool Commercial Part Brace
10W11381327 Whirlpool Brace
11W11685943 Whirlpool Screw
12W10676061 Whirlpool Cover Assembly
13W10846509 Whirlpool Screw
14W10676680 Whirlpool Cabinet
15WP8564458 Whirlpool Absorber
16W11611669 Whirlpool Absorber
17W11213957 Whirlpool Dishwasher Leveling Leg
18W11486091 Whirlpool Rear Panel
19W10899966 Whirlpool Hose Assembly
20WP9740848 Whirlpool Dishwasher Screw
21WPW10339879 Whirlpool Wire Tie
22WPW10280024 Whirlpool Retainer
23W11244231 Whirlpool Hose
24WP356138 Whirlpool Hose Clamp
25W11638180 Whirlpool Bearing
26W11638181 Whirlpool Bearing
