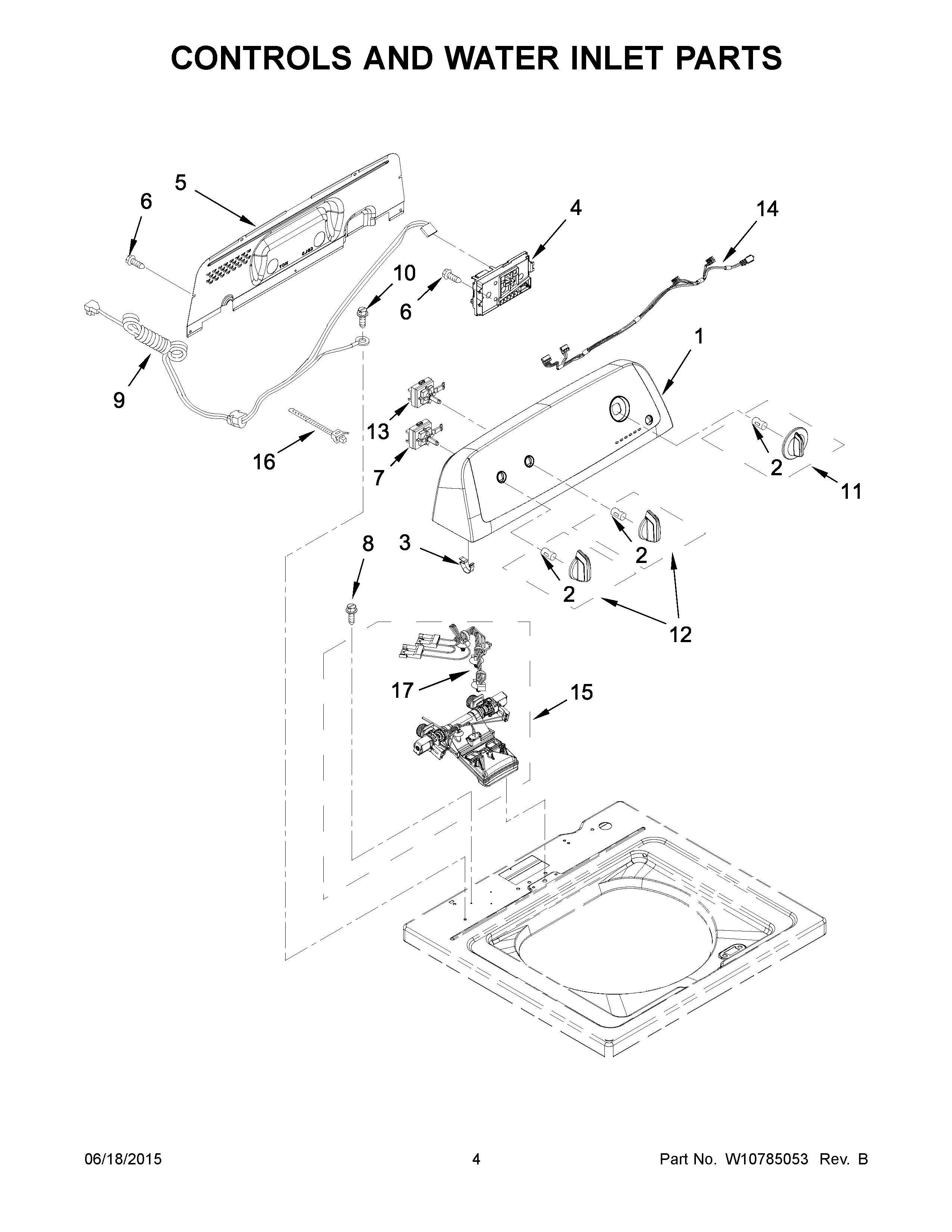

CAW8350EW0 03 – CONTROLS AND WATER INLET PARTS

CAW8350EW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

CAW8350EW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WP8312709 Whirlpool Endcap Clip
4WPW10710928-includeCORE Whirlpool WPW10710928 Washer Electronic Control Board + Core
5W10409320 Whirlpool Rear Panel
6WP489069 Whirlpool Compactor Screw
7WPW10414397 Whirlpool Cycle Switch
8WPW10213953 Whirlpool Screw
9W10850133 Whirlpool Power Cord
10W10846509 Whirlpool Screw
11WPW10711289 Whirlpool Washer Control Knob Dryer
12WPW10453947 Whirlpool Knob
13W10859568 Whirlpool Cycle Switch
14W11256701 Whirlpool Wire Harness
15W11210459 Whirlpool Washer Water Inlet Valve
16WPW10339879 Whirlpool Wire Tie
17W10678671 Whirlpool Wire Harness
