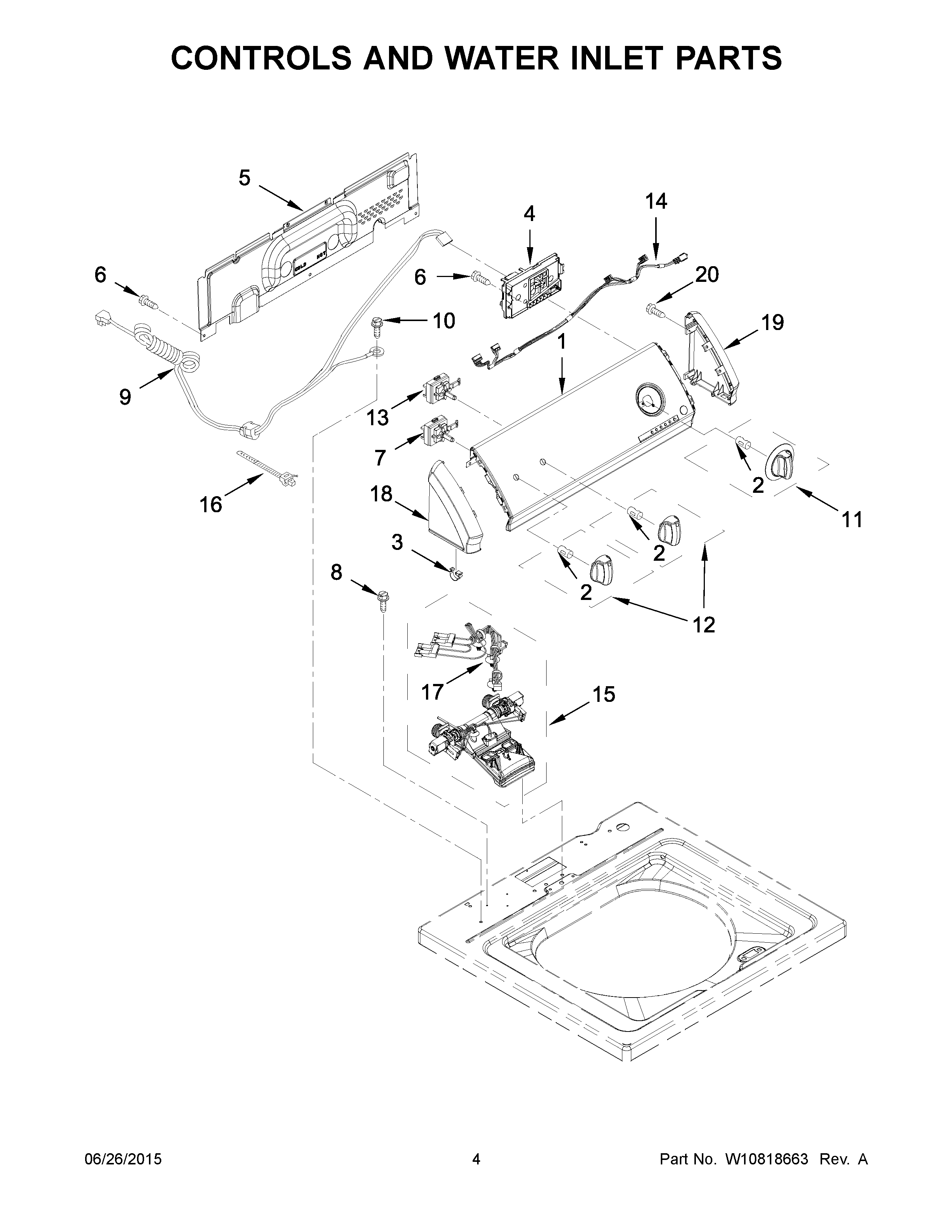

CAW8350EW1 03 – CONTROLS AND WATER INLET PARTS

CAW8350EW1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

CAW8350EW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1W10740635 Whirlpool Control Panel
2WP8536939 Whirlpool Spring Clip
3WP8312709 Whirlpool Endcap Clip
4W11116519 Whirlpool Electronic Control Board + Core
5WPW10461159 Whirlpool Rear Panel
6WP489069 Whirlpool Compactor Screw
7WPW10285517 Whirlpool Cycle Switch
8WPW10213953 Whirlpool Screw
9W10877409 Whirlpool Power Cord
10W10846509 Whirlpool Screw
11W10317457 Whirlpool Knob
12W10317458 Whirlpool Knob
13WPW10285518 Whirlpool Cycle Switch
14HARNESS, UPPER
15W11210459 Whirlpool Washer Water Inlet Valve
16WPW10339879 Whirlpool Wire Tie
17W10678671 Whirlpool Wire Harness
18WP8559502 Whirlpool Endcap Assembly
19WP8559501 Whirlpool Endcap
20WP90767 Whirlpool Screw
