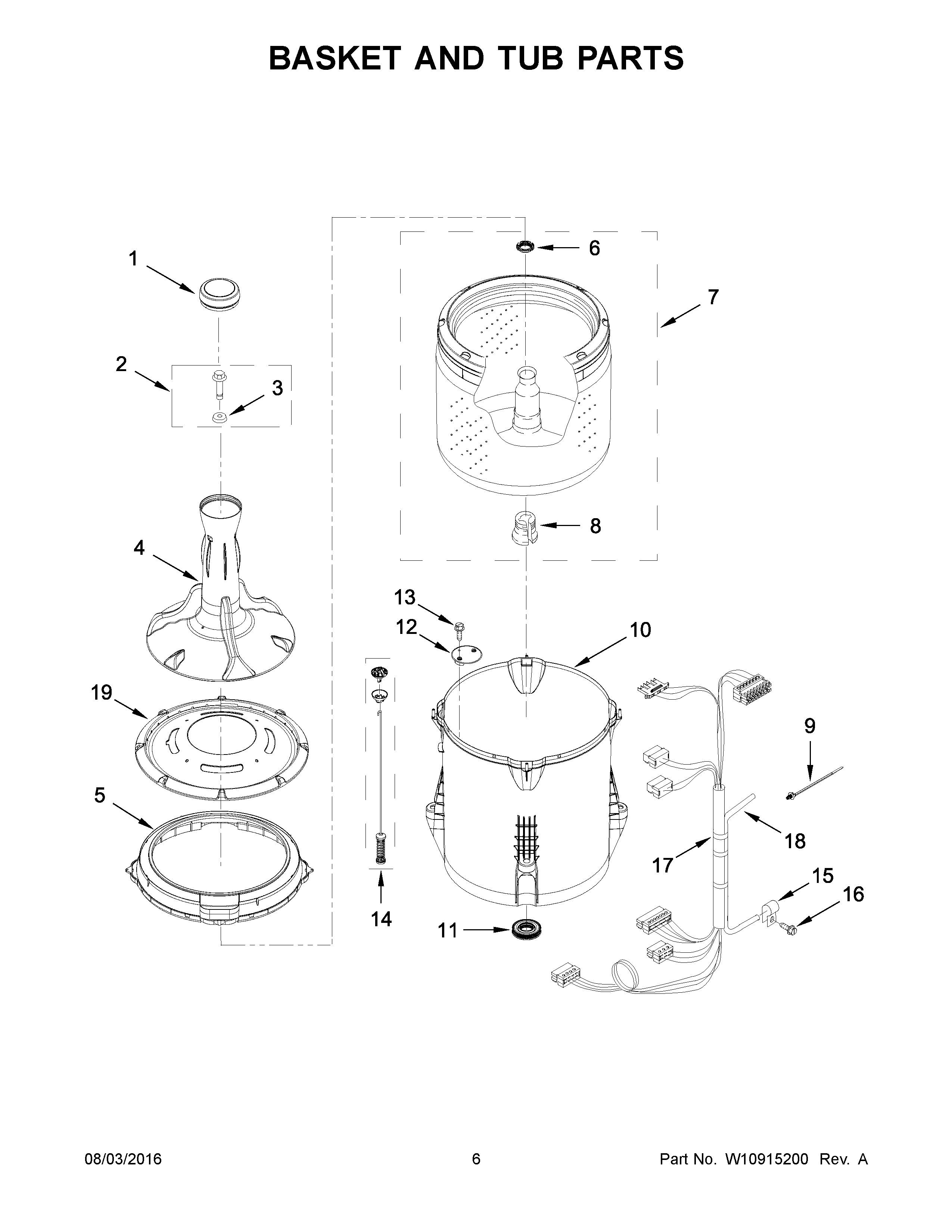

CAW8350EW2 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W10680189 Whirlpool Cap
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4AGITATOR
5WPW10531289 Whirlpool Tub Ring
6WP21366 Whirlpool Spanner Nut
7W10554251 Whirlpool Basket
8WP389140 Whirlpool Drive Block or Bell
9WPW10339879 Whirlpool Wire Tie
10W10371566 Whirlpool Outer Tub
11W10324647 Whirlpool Seal Tub
12WPW10215093 Whirlpool Filter
13WP8533928 Whirlpool Refrigerator Screw
14W10780045 Whirlpool Suspension Rod
15W10005430 Whirlpool Clamp
16WPW10109200 Whirlpool Screw
17HARNESS, LOWER
18W10846364 Whirlpool Hose
19W11085570 Whirlpool Shield
