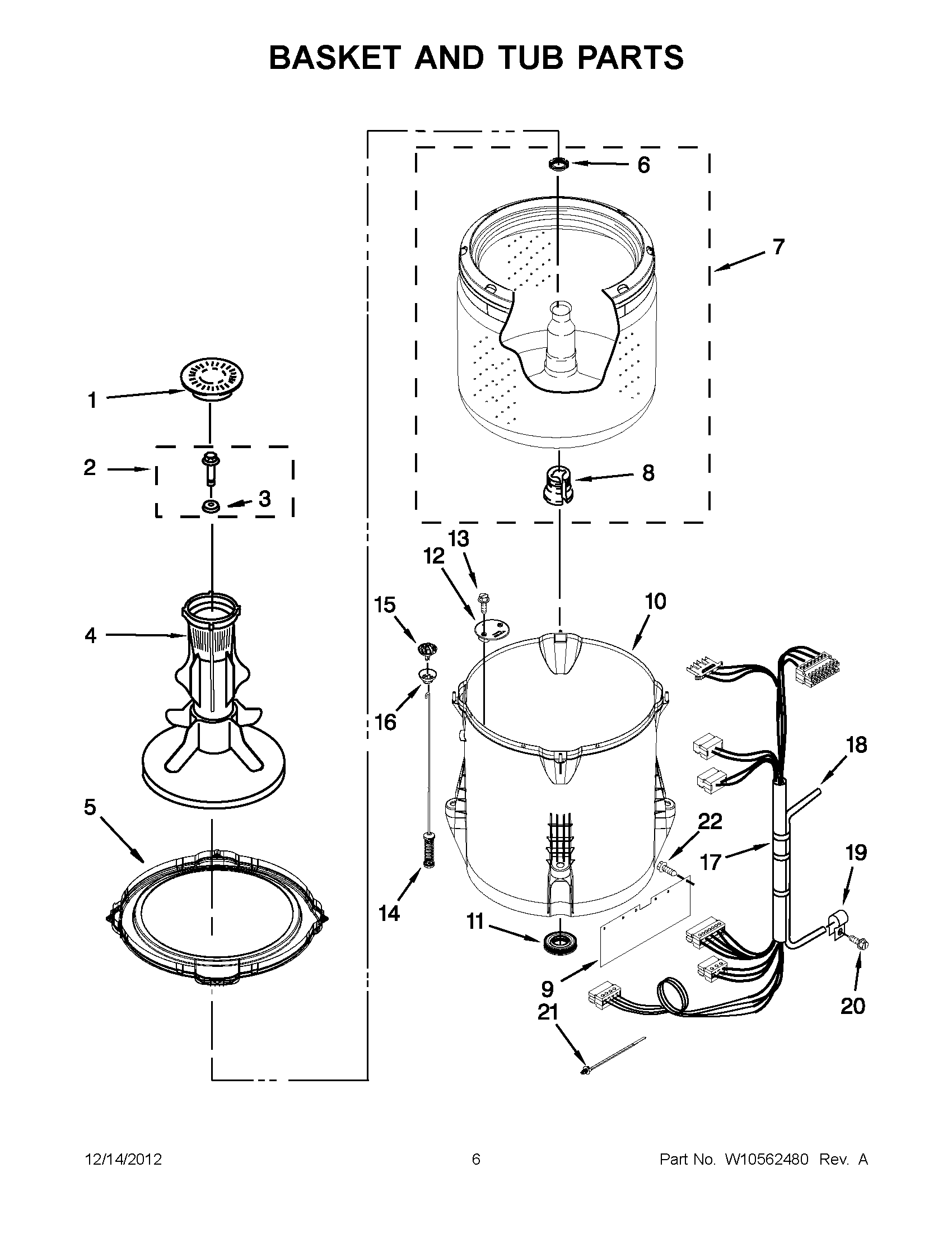

CAW9244BW0 03 – BASKET AND TUB PARTS

Products

Position	Product
1	WP3352483 Whirlpool Cap
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	AGITATOR
5	RING-TUB
6	WP21366 Whirlpool Spanner Nut
7	W10738339 Whirlpool Basket Assembly
8	WP389140 Whirlpool Drive Block or Bell
9	W10339098 Whirlpool Shield
10	W10371566 Whirlpool Outer Tub
11	W10324647 Whirlpool Seal Tub
12	WPW10215093 Whirlpool Filter
13	WP8533928 Whirlpool Refrigerator Screw
14	W10780048 Whirlpool Washer Suspension Rod Assembly
15	BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSIONBUSHINGS)
16	W10440729 Whirlpool Suspension
17	HARNESS, LOWER (INCLUDES PRESSURE HOSE & CABLE TIE)
18	WP353244 Whirlpool Hose
19	W10005430 Whirlpool Clamp
20	WPW10109200 Whirlpool Screw
21	WPW10339879 Whirlpool Wire Tie
22	W10429200 Whirlpool Retainer
