CAW9244DW0 04 – BASKET AND TUB PARTS
Written by
in

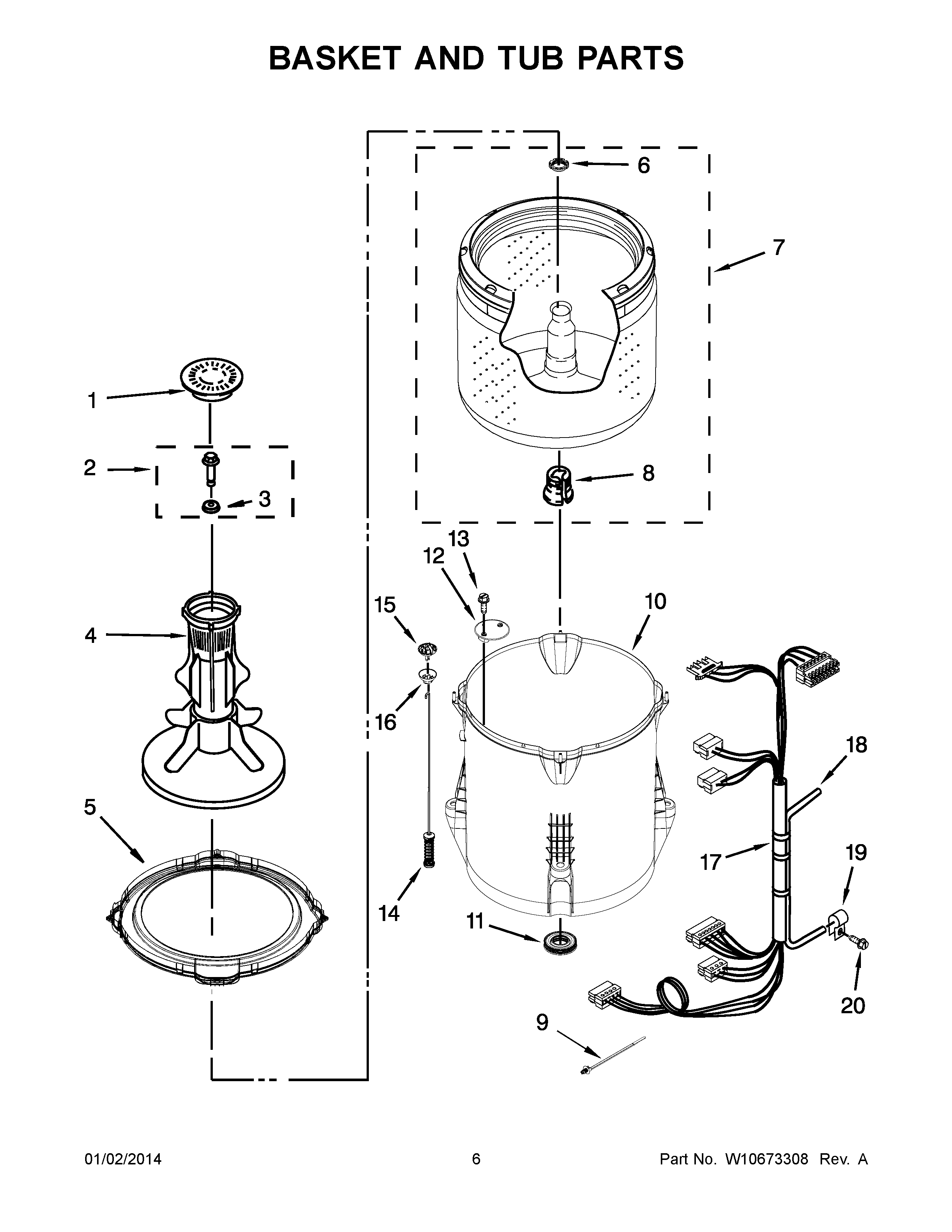

CAW9244DW0 04 – BASKET AND TUB PARTS
Products
Position
Product
1
WP3352483 Whirlpool Cap
2
W10772621 Whirlpool Washplate Screw
3
WP3949550 Whirlpool Gasket Assembly
4
AGITATOR
5
WPW10531289 Whirlpool Tub Ring
6
WP21366 Whirlpool Spanner Nut
7
W10554251 Whirlpool Basket
8
WP389140 Whirlpool Drive Block or Bell
9
WPW10339879 Whirlpool Wire Tie
10
W10371566 Whirlpool Outer Tub
11
W10324647 Whirlpool Seal Tub
12
WPW10215093 Whirlpool Filter
13
WP8533928 Whirlpool Refrigerator Screw
14
W10780045 Whirlpool Suspension Rod
15
BALL, SUSPENSION (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
16
W10440729 Whirlpool Suspension
17
W10548662 Whirlpool Wire Harness
18
W10846364 Whirlpool Hose
19
W10005430 Whirlpool Clamp
20
WPW10109200 Whirlpool Screw
←
