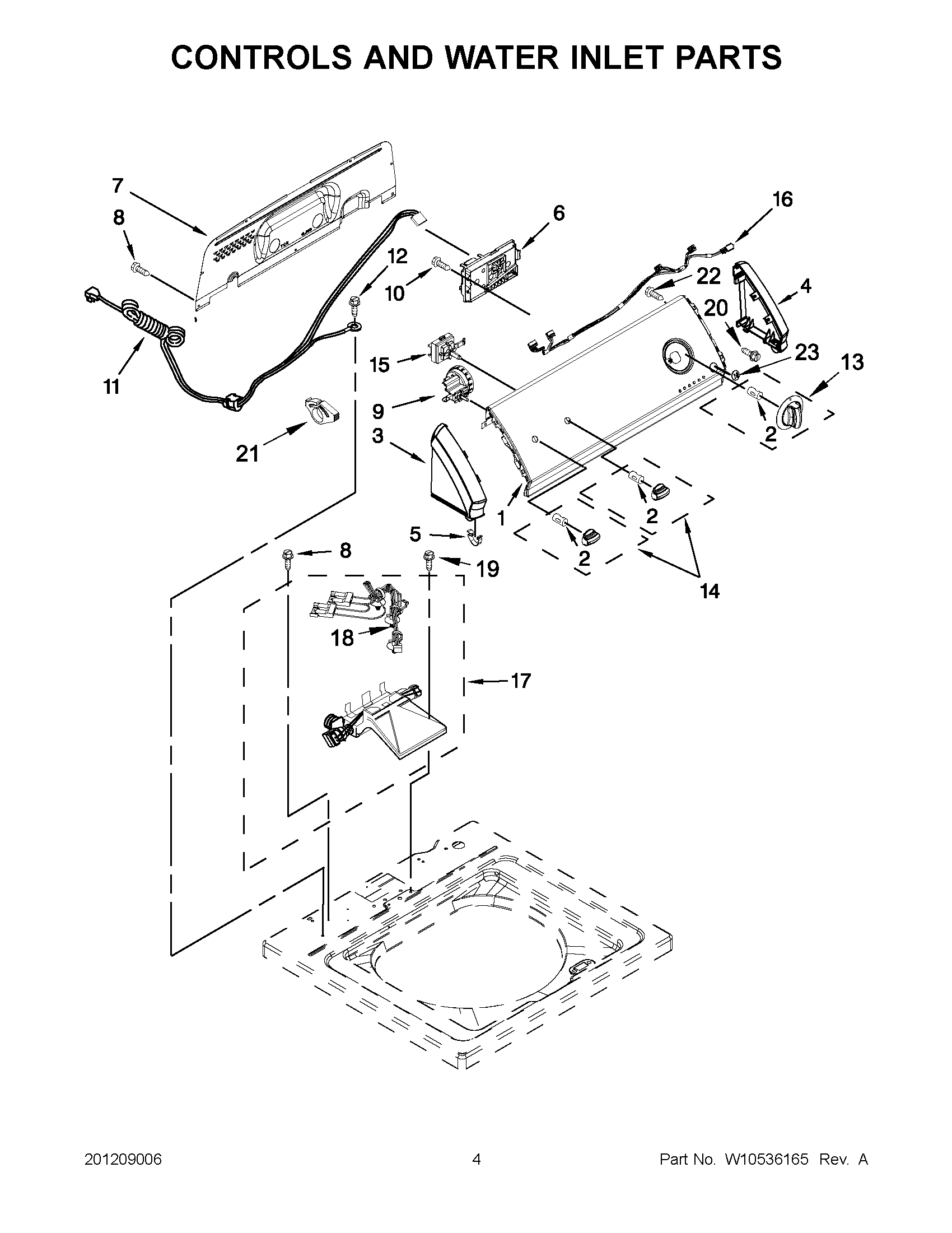

CAW9244XQ4 02 – CONTROLS AND WATER INLET PARTS

Written by

Products

Position	Product
1	MAY W10317195
2	CLIP, SPRING
3	ENDCAP ASSEMBLY, LEFT HAND (WHITE)
4	ENDCAP ASSEMBLY, RIGHT HAND (WHITE)
5	MAY 8312709
6	MAY W10480289
7	MAY W10461159
8	MAY 1157158
9	MAY W10268911
10	SCREW,8-18 X 3/8
11	MAY W10276649
12	Screw, 10-32 x 5/8
13	KNOB ASSEMBLY, TIMER
14	KNOB ASSEMBLY, CONTROL
15	SWITCH, ROTARY ENCODER
16	MAY W10291178
17	MAY W10423125
18	MAY W10423127
19	Screw
20	SCREW
21	CLAMP, HOSE
22	SCREW
23	MAY W10272474
