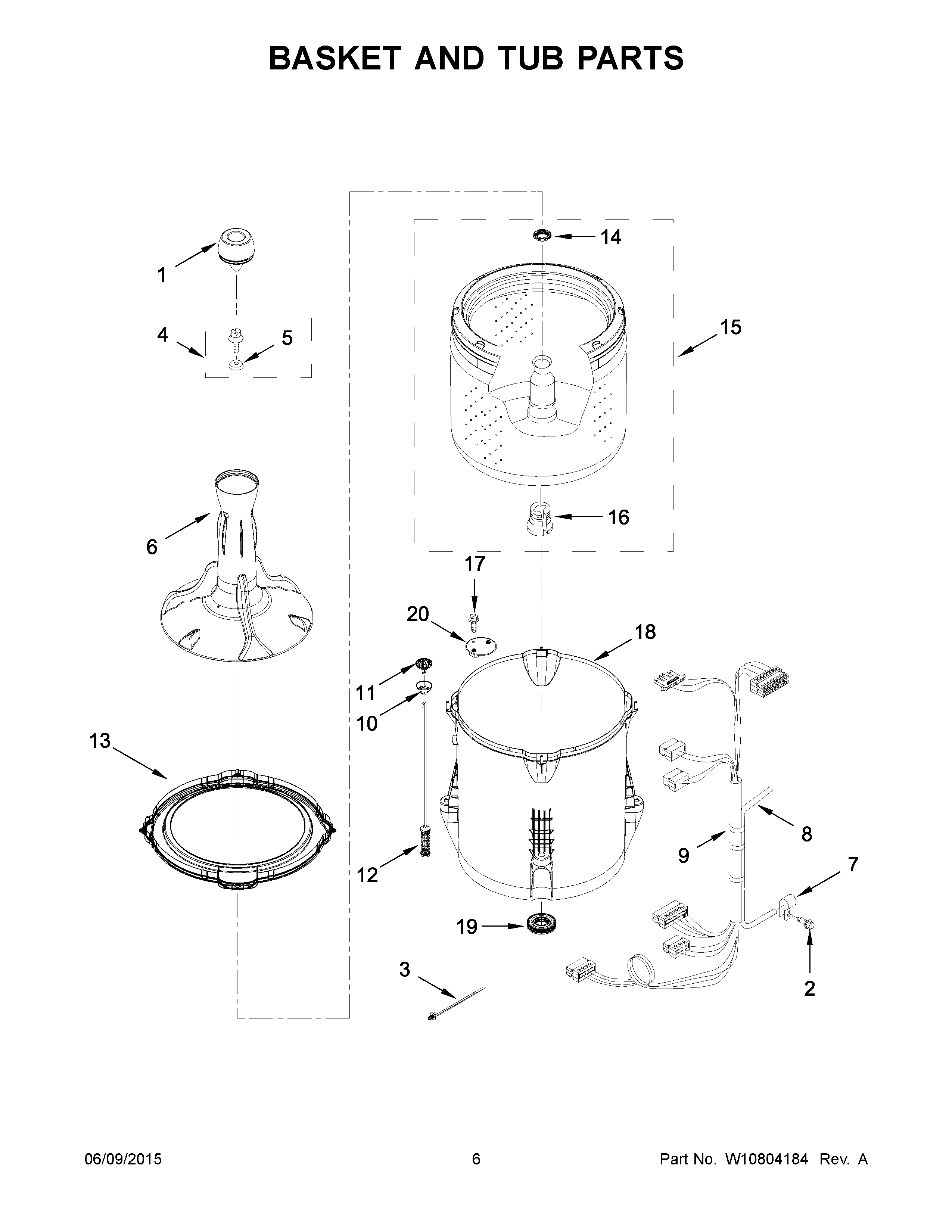

CAW9352EW1 04 – BASKET AND TUB PARTS

CAW9352EW1 04 – BASKET AND TUB PARTS

Written by

in

CAW9352EW1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1DISPENSER, FABRIC SOFTENER
2WPW10109200 Whirlpool Screw
3WPW10339879 Whirlpool Wire Tie
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6AGITATOR
7W10005430 Whirlpool Clamp
8W10846364 Whirlpool Hose
9W10678682 Whirlpool Wire Harness
10W10440729 Whirlpool Suspension
11W10780046 Whirlpool Suspension Rod Kit
12W10780045 Whirlpool Suspension Rod
13WPW10531289 Whirlpool Tub Ring
14WP21366 Whirlpool Spanner Nut
15W10554251 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17WP8533928 Whirlpool Refrigerator Screw
18W10371566 Whirlpool Outer Tub
19W10324647 Whirlpool Seal Tub
20WPW10215093 Whirlpool Filter
