CAW9352EW2 03 – CONTROLS AND WATER INLET PARTS

CAW9352EW2 03 – CONTROLS AND WATER INLET PARTS

Written by

in

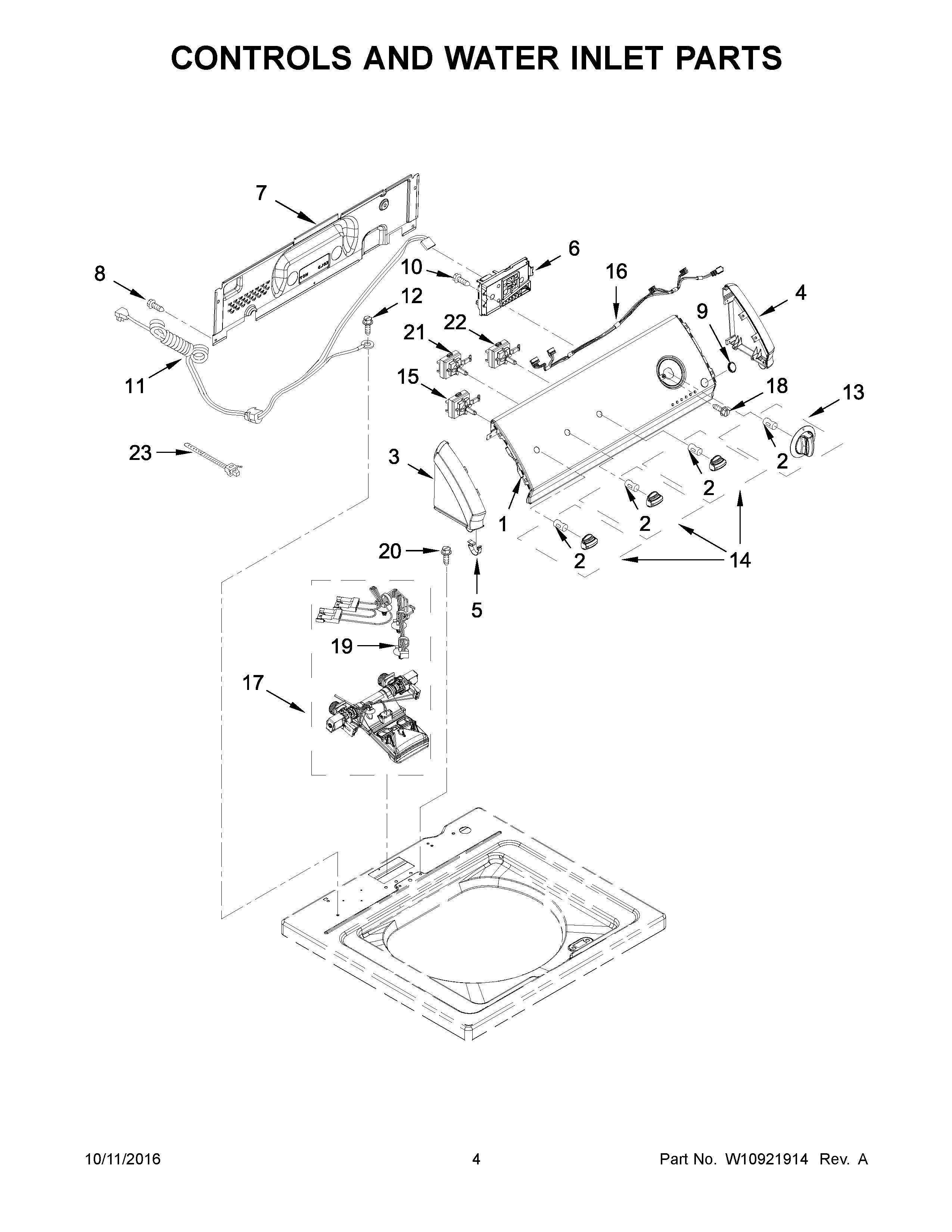

CAW9352EW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WP8559502 Whirlpool Endcap Assembly
4WP8559501 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W11116523-includeCORE Whirlpool W11116523 Refrigerator Electronic Control Board + Core
7WPW10461159 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9W10272474 Whirlpool Push Button
10WP90767 Whirlpool Screw
11W10877409 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W10317457 Whirlpool Knob
14W10317458 Whirlpool Knob
15WPW10285517 Whirlpool Cycle Switch
16HARNESS, UPPER
17VALVE-WATER INLET WASHER
18WP3400818 Whirlpool Screw
19W10678671 Whirlpool Wire Harness
20WPW10213953 Whirlpool Screw
21WPW10285518 Whirlpool Cycle Switch
22WPW10285511 Whirlpool Cycle Switch
23W10339680 Whirlpool Wire Tie
