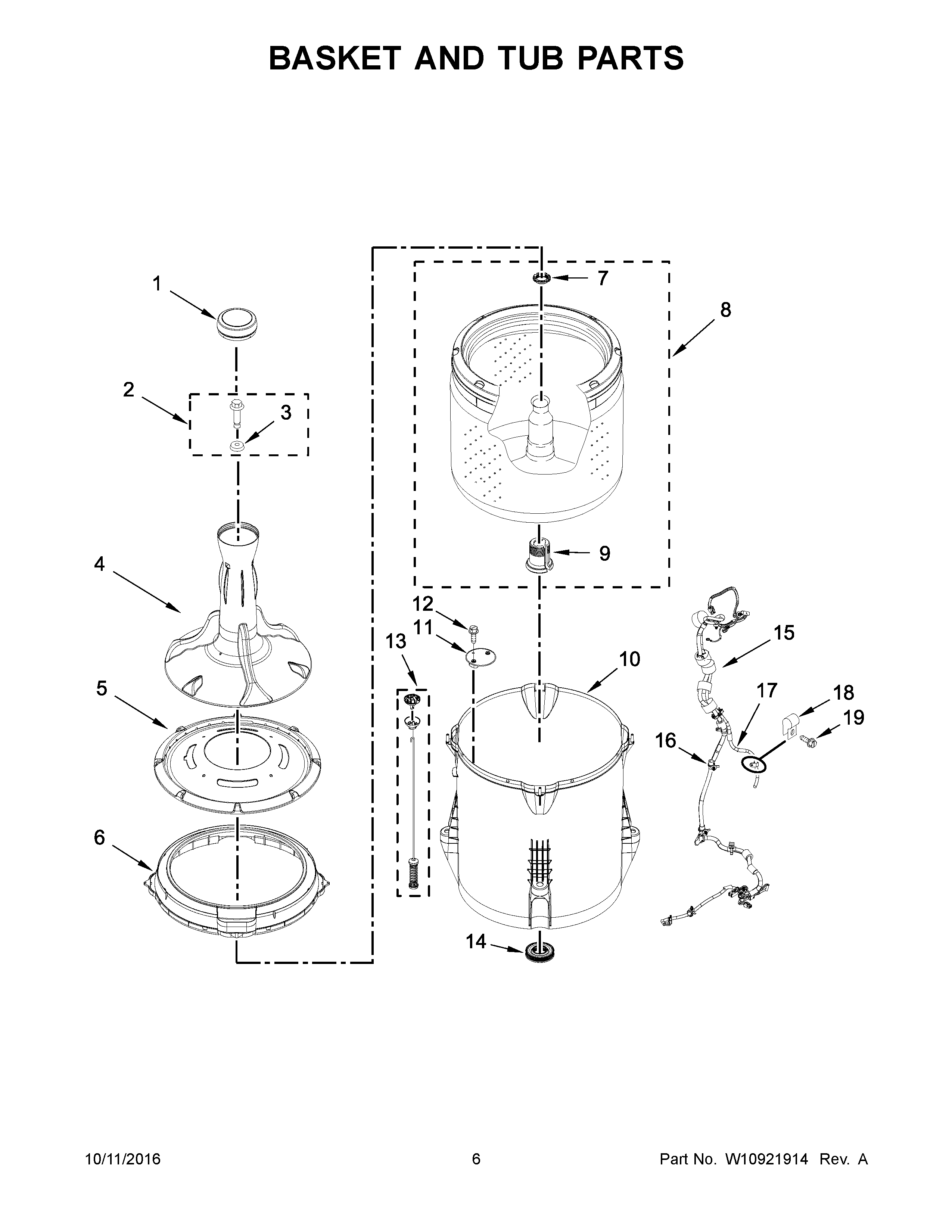

CAW9352EW2 04 – BASKET AND TUB PARTS

Products

Position	Product
1	DISPENSER, FABRIC SOFTENER
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	AGITATOR
5	W11085570 Whirlpool Shield
6	WPW10531289 Whirlpool Tub Ring
7	WP21366 Whirlpool Spanner Nut
8	W10554251 Whirlpool Basket
9	WP389140 Whirlpool Drive Block or Bell
10	W10371566 Whirlpool Outer Tub
11	WPW10215093 Whirlpool Filter
12	WP8533928 Whirlpool Refrigerator Screw
13	W10780045 Whirlpool Suspension Rod
14	W10324647 Whirlpool Seal Tub
15	HARNESS, LOWER
16	WPW10339879 Whirlpool Wire Tie
17	W10846364 Whirlpool Hose
18	W10005430 Whirlpool Clamp
19	WPW10109200 Whirlpool Screw
