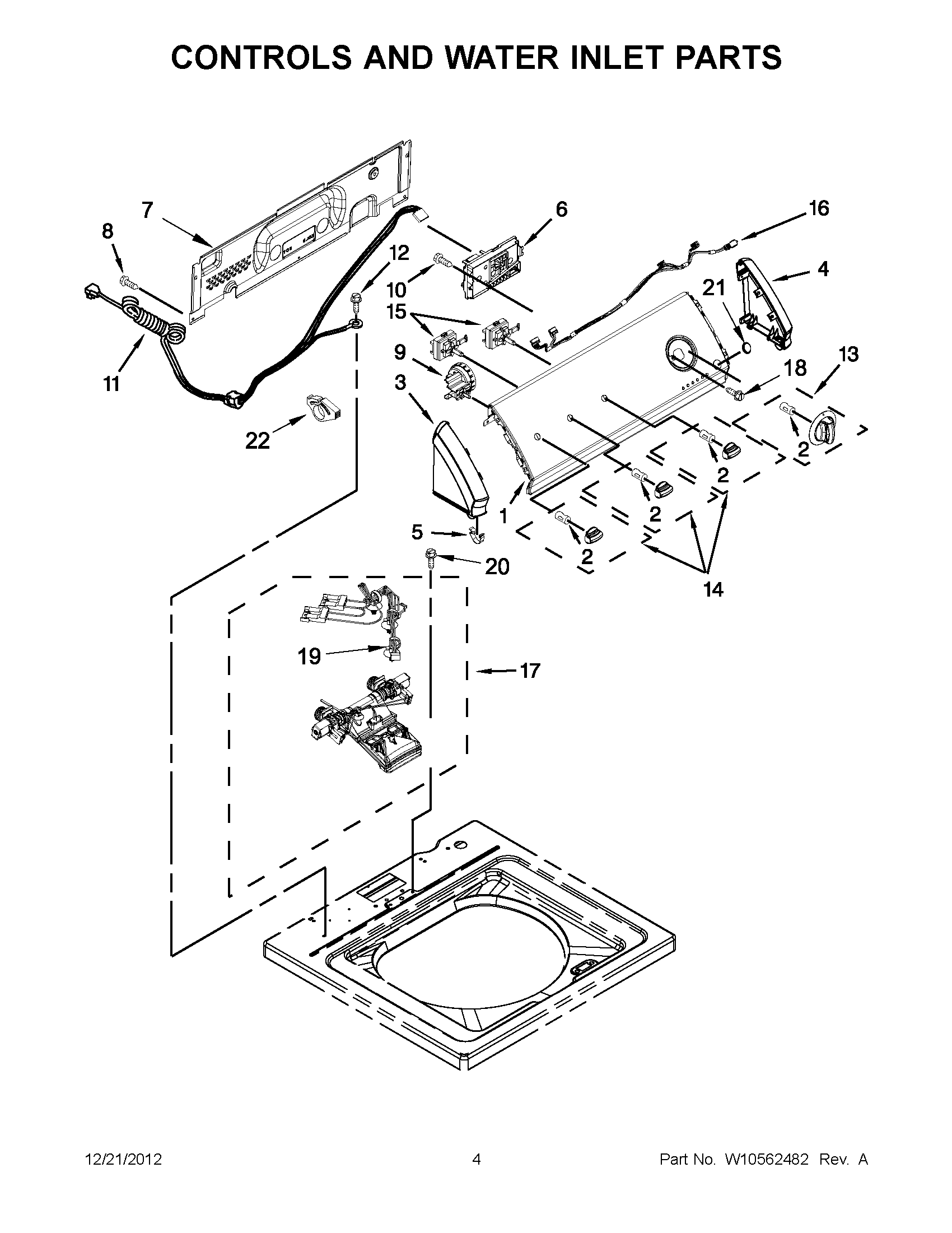

CAW9444BW0 02 – CONTROLS AND WATER INLET PARTS

CAW9444BW0 02 – CONTROLS AND WATER INLET PARTS

Written by

in

CAW9444BW0 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WP8559502 Whirlpool Endcap Assembly
4WP8559501 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W10480291 Whirlpool Electronic Control Board + Core
7WPW10461159 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10268911 Whirlpool Washer Water Level Switch
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W10317457 Whirlpool Knob
14W10317458 Whirlpool Knob
15WPW10285512 Whirlpool Cycle Switch
16W10291174 Whirlpool Wire Harness
17WPW10683603 Whirlpool Dishwasher Water Inlet Valve
18WP3400818 Whirlpool Screw
19W10876654 Whirlpool Wire Harness
20WP8281163 Whirlpool Refrigerator Screw
21W10272474 Whirlpool Push Button
22WPW10663966 Whirlpool Washer Water Level Switch
