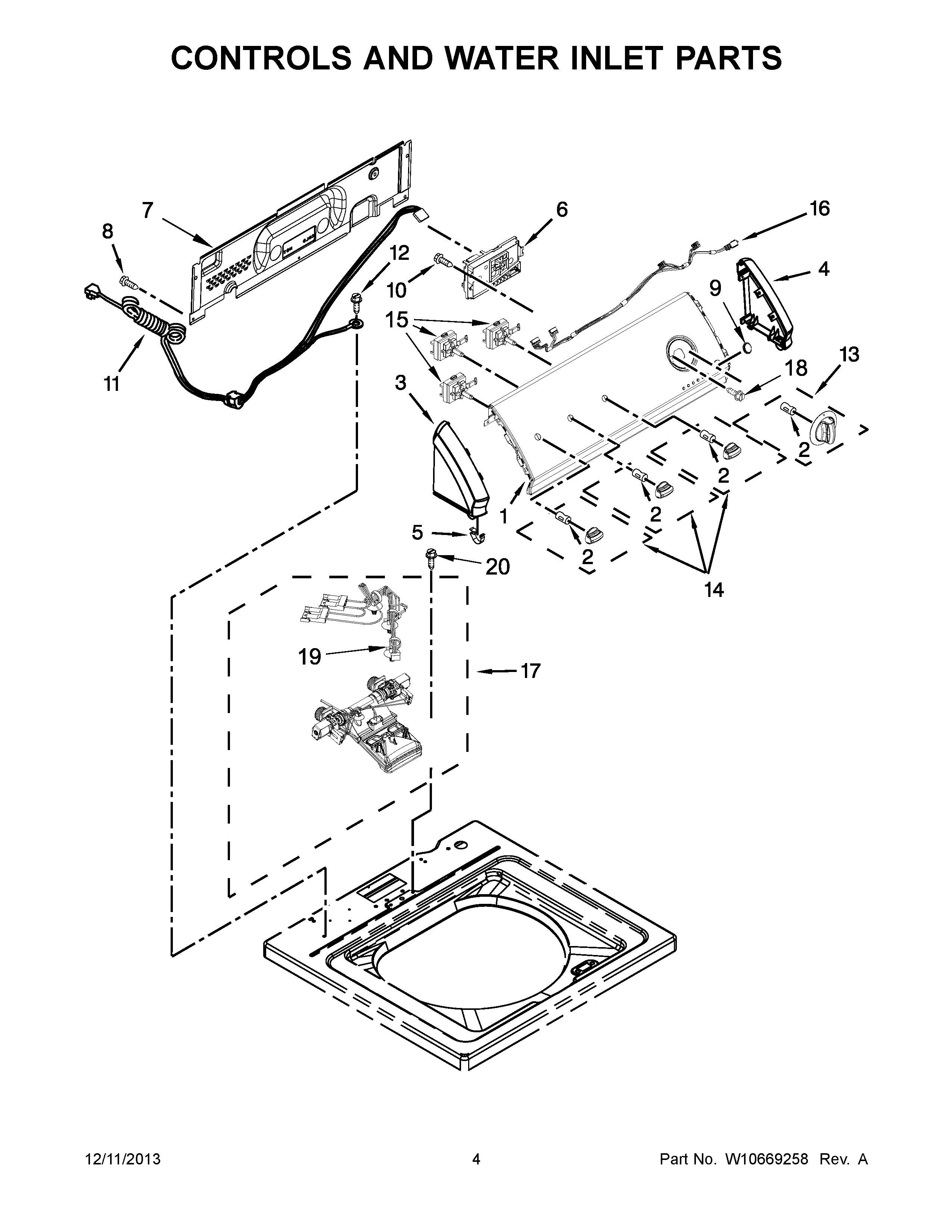

CAW9444DW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	WP8536939 Whirlpool Spring Clip
3	WP8559502 Whirlpool Endcap Assembly
4	WP8559501 Whirlpool Endcap
5	WP8312709 Whirlpool Endcap Clip
6	W10632924 Whirlpool Electronic Control Board + Core
7	WPW10461159 Whirlpool Rear Panel
8	WP489069 Whirlpool Compactor Screw
9	W10272474 Whirlpool Push Button
10	WP90767 Whirlpool Screw
11	WPW10525194 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	W10317457 Whirlpool Knob
14	W10317458 Whirlpool Knob
15	WPW10285512 Whirlpool Cycle Switch
16	W10291183 Whirlpool Wire Harness
17	WPW10683603 Whirlpool Dishwasher Water Inlet Valve
18	WP3400818 Whirlpool Screw
19	W10876654 Whirlpool Wire Harness
20	WP8281163 Whirlpool Refrigerator Screw
