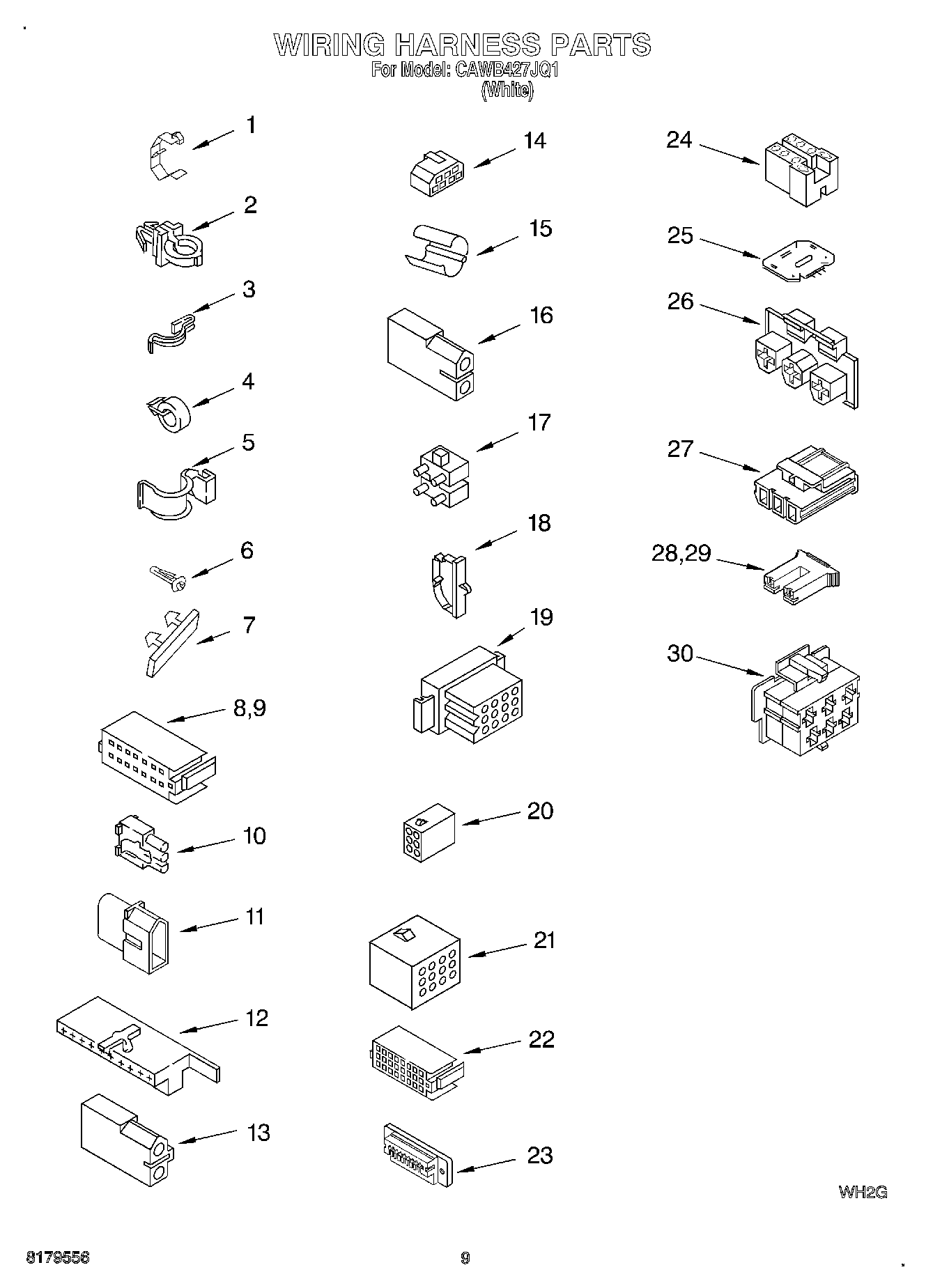

CAWB427JQ1 06 – WIRING HARNESS

Products

Position	Product
1	Clip, Harness
2	Clip, Harness
3	8528351 Whirlpool Clip
4	8559320 Whirlpool Clip
5	WP90016 Whirlpool Clip
6	Clip, Harness
7	WP389379 Whirlpool Retainer
8	Timer, Block Disconnect (White)
9	W10876590 Whirlpool Connector
10	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
11	353424 Whirlpool Connector
12	WP62505 Whirlpool Connector
13	Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614)
14	Block, Disconnect
15	Protector, Harness
16	Receptacle, Latching (2-Way) (Uses Terminal 94614)
17	Plug, Terminal (4-Way) (Power Cord) (Use M3 Screws)
18	Clip, Harness
19	Block, Disconnect (12-Way) (Timer) (Use Term. 94613)
20	Receptacle, (6-Way) (Use Term. 94613)
21	Plug, Terminal (12-Way) (Use Term. 94613 Or 94614)
22	Timer, Block Disconnect (Black) (Amp) (Use Term. 3369365)
23	Connector, Etc
24	Connector, Relay (Use Term. 308569)
25	E.T.C. Control
26	WP2172937 Whirlpool Connector
27	WP3360056 Whirlpool Connector
28	3354925 Whirlpool Connector
29	WPL 3354926
30	WPL 3948615
