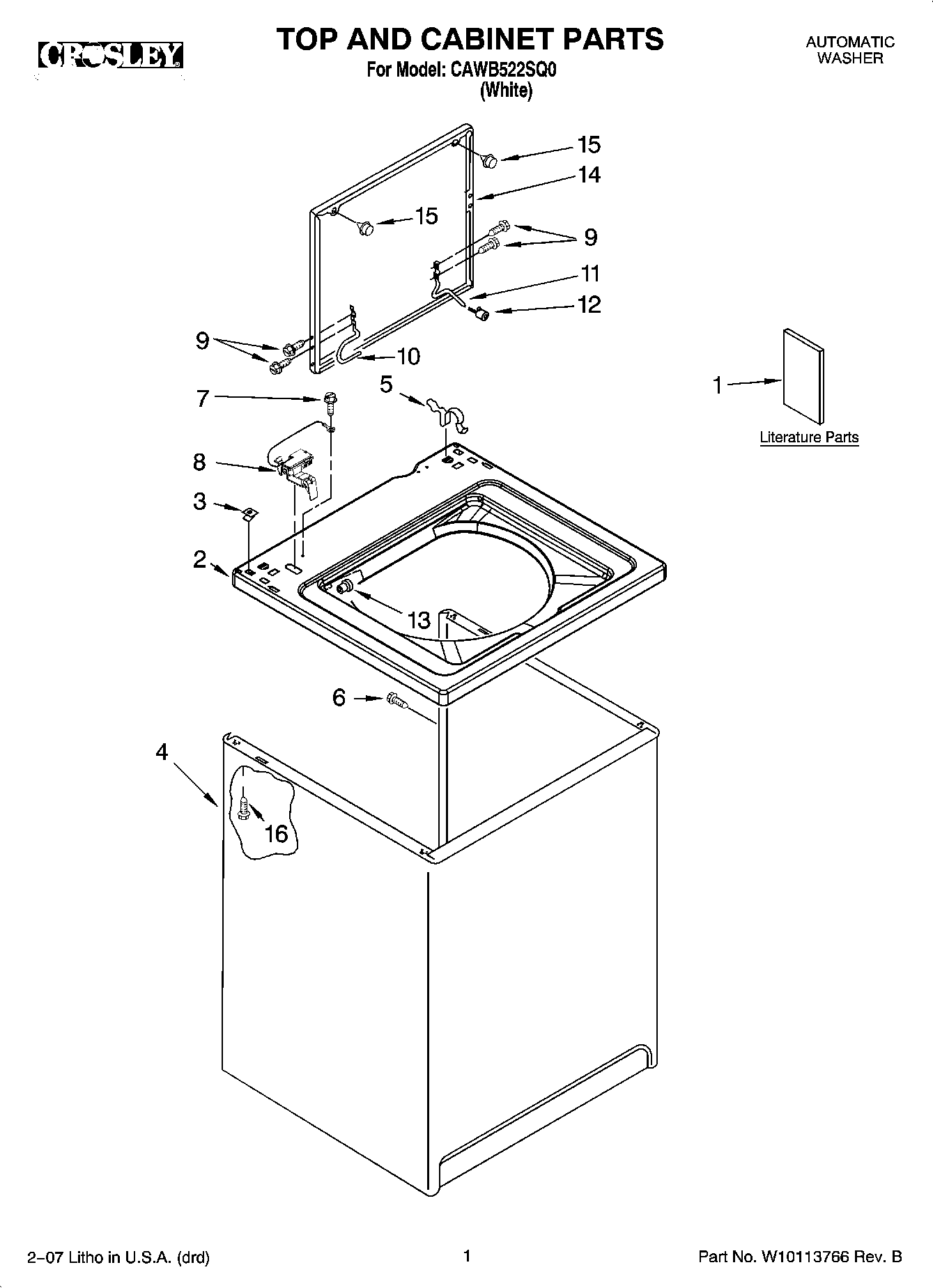

CAWB522SQ0 01 – TOP AND CABINET PARTS

CAWB522SQ0 01 – TOP AND CABINET PARTS

Written by

in

CAWB522SQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
1Feature Sheet
1Wiring Diagram
1Installation Instructions
2Top
3WP357213 Whirlpool Hinge Stopper
4Cabinet (White)
5WP62780 Whirlpool Cabinet Clip
6WP308685 Whirlpool Microwave Screw
7WP3351614 Whirlpool Screw
8WP8318084 Whirlpool Washer Lid Switch Assembly
9SCREW
108318088 Whirlpool Hinge Assembly
11WP54583 Whirlpool Hinge
12Bumper, Lid Hinge
13WP21258 Whirlpool Washer Lid Hinge Bearing
14WPW10193857 Whirlpool Lid Assembly
15WP9724509 Whirlpool Bumper
16WP3390631 Whirlpool Screw
