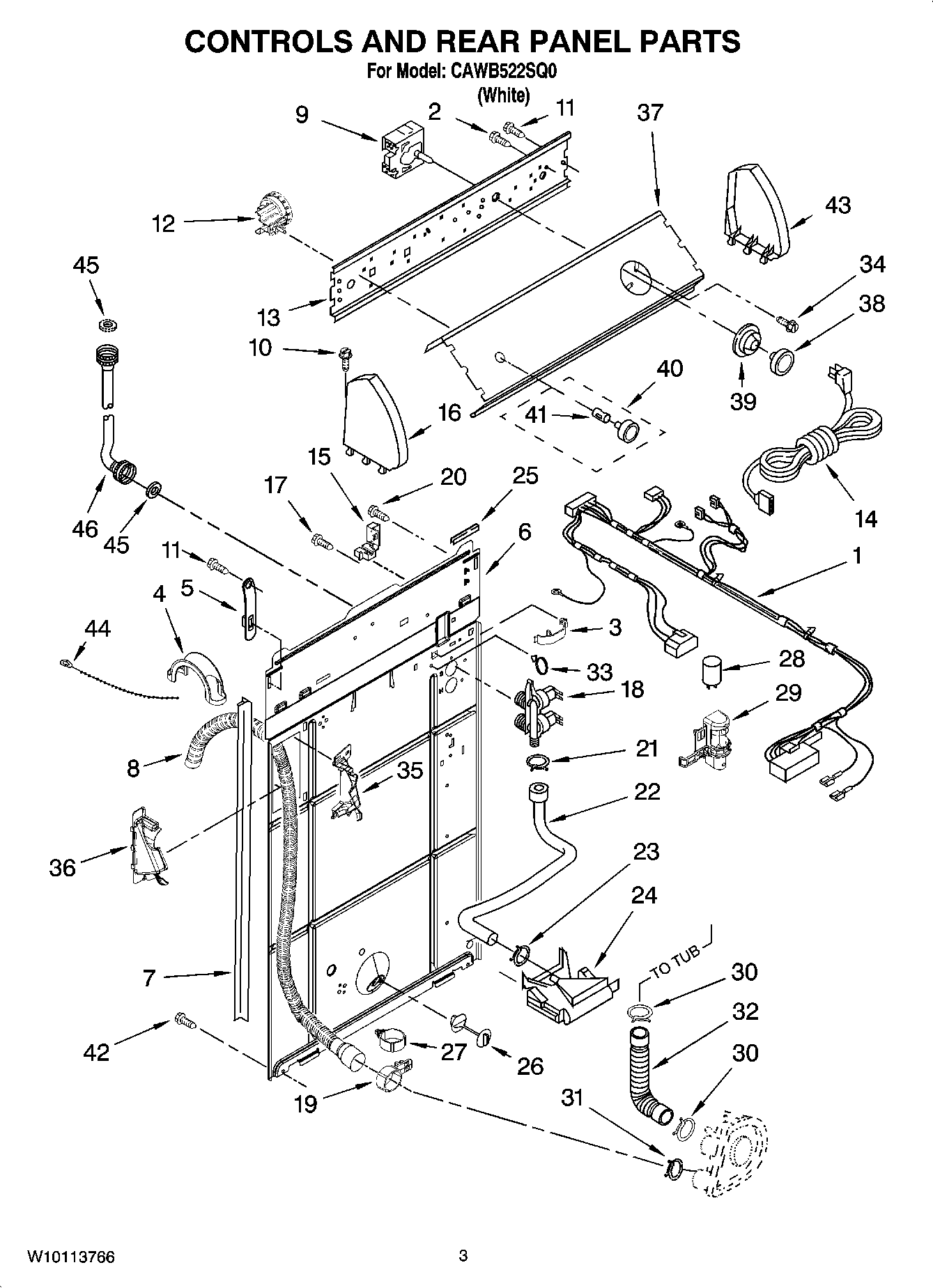

CAWB522SQ0 02 – CONTROLS AND REAR PANEL PARTS

CAWB522SQ0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

CAWB522SQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1Harness, Wiring (For Detail See Pages 9 & 10)
23400073 Whirlpool Screw
3Clip, Harness
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9Timer, Control (60 Hz.) (Motor Not A Service Part)
10WP388326 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339334 Whirlpool Washer Water Level Control Switch
13Bracket, Control
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
17WP9740848 Whirlpool Dishwasher Screw
18WPW10113122 Whirlpool Water Valve
198541668 Whirlpool Washer Clamp
20WP3351614 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25Edge Protector
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28CAPACITOR
29Clip, Capacitor
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
338559320 Whirlpool Clip
34WP3400818 Whirlpool Screw
36WPW10096921 Whirlpool Hose
37Panel, Console
38W10807860 Whirlpool White Control Knob
39Dial, Timer
40WP8557460 Whirlpool Knob
41WP8536939 Whirlpool Spring Clip
42WP3390631 Whirlpool Screw
43W10820038 Whirlpool Endcap
44WPW10339879 Whirlpool Wire Tie
45WP16123 Whirlpool Washer
46WP89503 Whirlpool Washer Fill Hose
46FILL HOSE 5' W/WASHER
