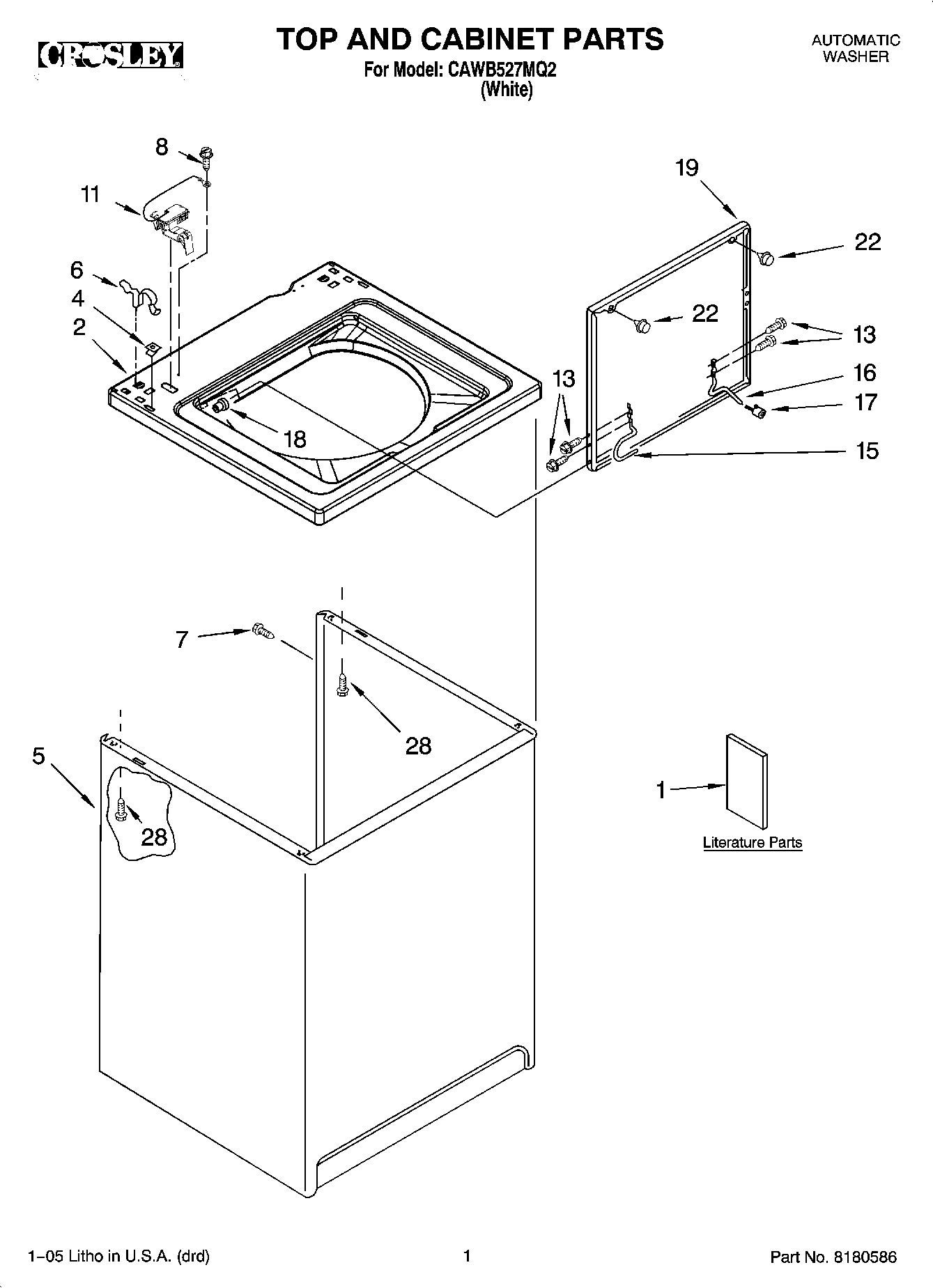

CAWB527MQ2 01 – TOP AND CABINET PARTS

CAWB527MQ2 01 – TOP AND CABINET PARTS

Written by

in

CAWB527MQ2 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Feature Sheet
1Use & Care Guide
1Wiring Diagram
1Installation Instructions
2Top
4WP357213 Whirlpool Hinge Stopper
5Cabinet (White)
6WP62780 Whirlpool Cabinet Clip
7WP308685 Whirlpool Microwave Screw
8WP3351614 Whirlpool Screw
11WP8318084 Whirlpool Washer Lid Switch Assembly
13SCREW
158318088 Whirlpool Hinge Assembly
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WPW10193857 Whirlpool Lid Assembly
22WP9724509 Whirlpool Bumper
28WP3390631 Whirlpool Screw
