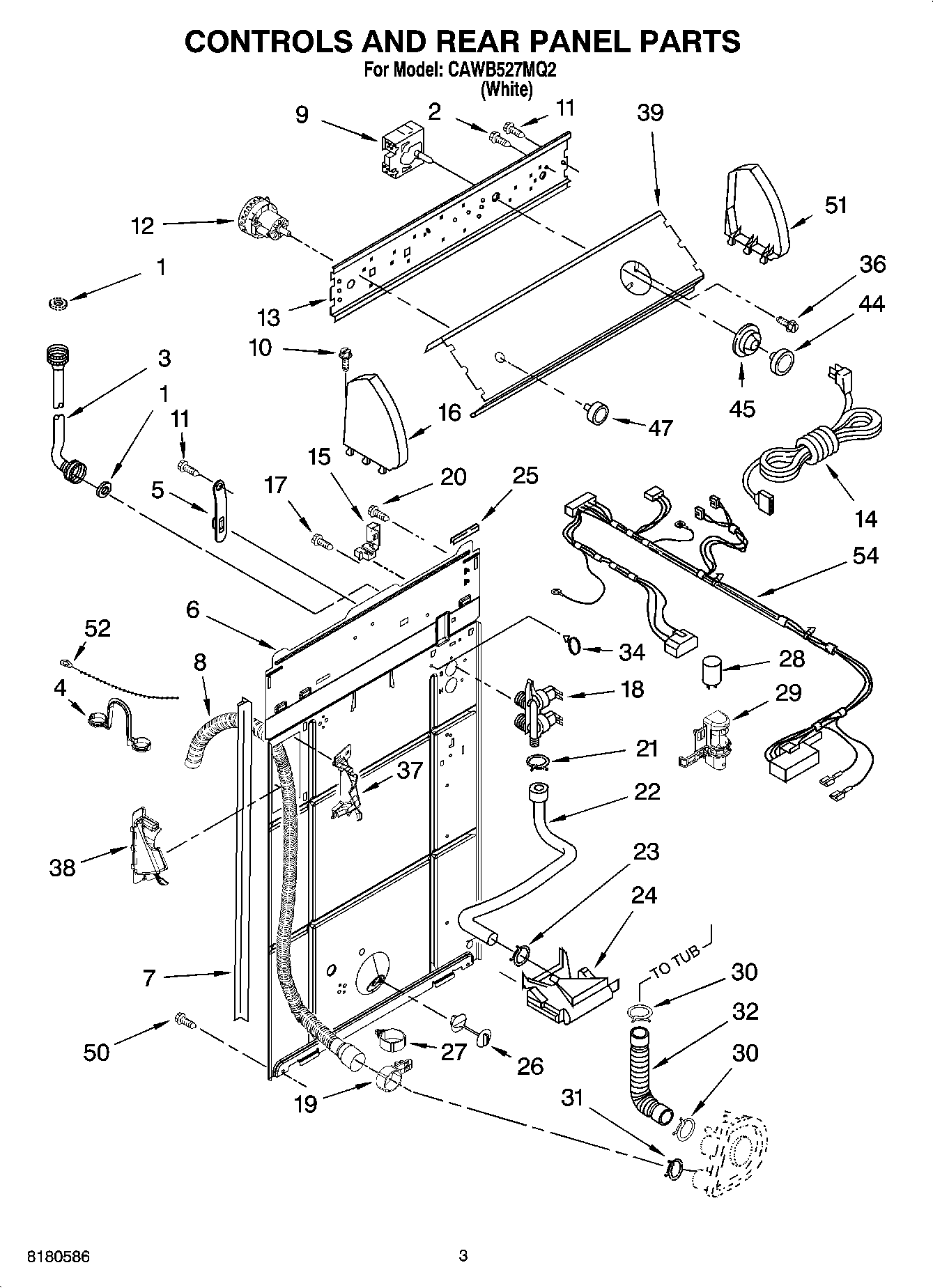

CAWB527MQ2 02 – CONTROL AND REAR PANEL PARTS

CAWB527MQ2 02 – CONTROL AND REAR PANEL PARTS

Written by

in

CAWB527MQ2 02 – CONTROL AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3954563 Whirlpool Timer Assembly
10WP388326 Whirlpool Screw
11WP90767 Whirlpool Screw
12SWITCH-WL
13Bracket, Control
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
17WP9740848 Whirlpool Dishwasher Screw
18285805 Whirlpool Washer Water Inlet Valve
198541668 Whirlpool Washer Clamp
20WP3351614 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25Edge Protector
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28CAPACITOR
29Clip, Capacitor
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
348559320 Whirlpool Clip
36WP3400818 Whirlpool Screw
37(Left Half)
38(Right Half)
38WPW10096921 Whirlpool Hose
39Panel, Console
44W10807860 Whirlpool White Control Knob
45WP3957841 Whirlpool Dial
47WP3957796 Whirlpool Knob
50WP3390631 Whirlpool Screw
51279960 Whirlpool Endcap Assembly
52WPW10339879 Whirlpool Wire Tie
54Harness, Wiring (For Detail See Page 9 & 10)
