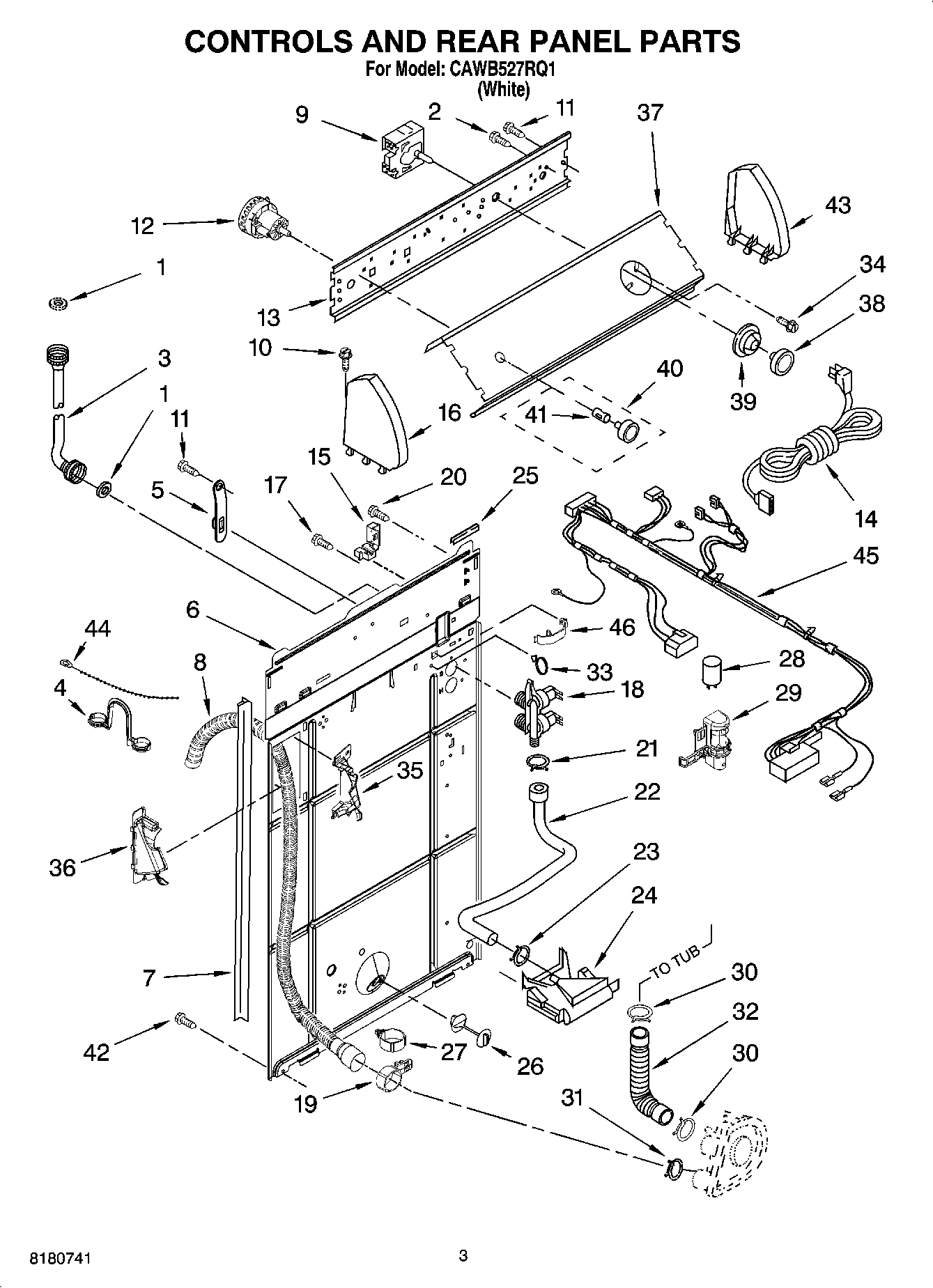

CAWB527RQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	3400073 Whirlpool Screw
3	WP89503 Whirlpool Washer Fill Hose
3	FILL HOSE 5' W/WASHER
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP3954563 Whirlpool Timer Assembly
10	WP388326 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	Bracket, Control
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
17	WP9740848 Whirlpool Dishwasher Screw
18	285805 Whirlpool Washer Water Inlet Valve
19	8541668 Whirlpool Washer Clamp
20	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	Edge Protector
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	CAPACITOR
29	Clip, Capacitor
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	8559320 Whirlpool Clip
34	WP3400818 Whirlpool Screw
35	(Left Half)
36	WPW10096921 Whirlpool Hose
36	(Right Half)
37	Panel, Console
38	W10807860 Whirlpool White Control Knob
39	Dial, Timer
40	WP8557460 Whirlpool Knob
41	WP8536939 Whirlpool Spring Clip
42	WP3390631 Whirlpool Screw
43	W10820038 Whirlpool Endcap
44	WPW10339879 Whirlpool Wire Tie
45	Harness, Wiring (For Detail See Page 9 & 10)
46	Miscellaneous Parts Bag
46	Clip, Harness
46	FOLLOWING PARTS NOT ILLUSTRA
