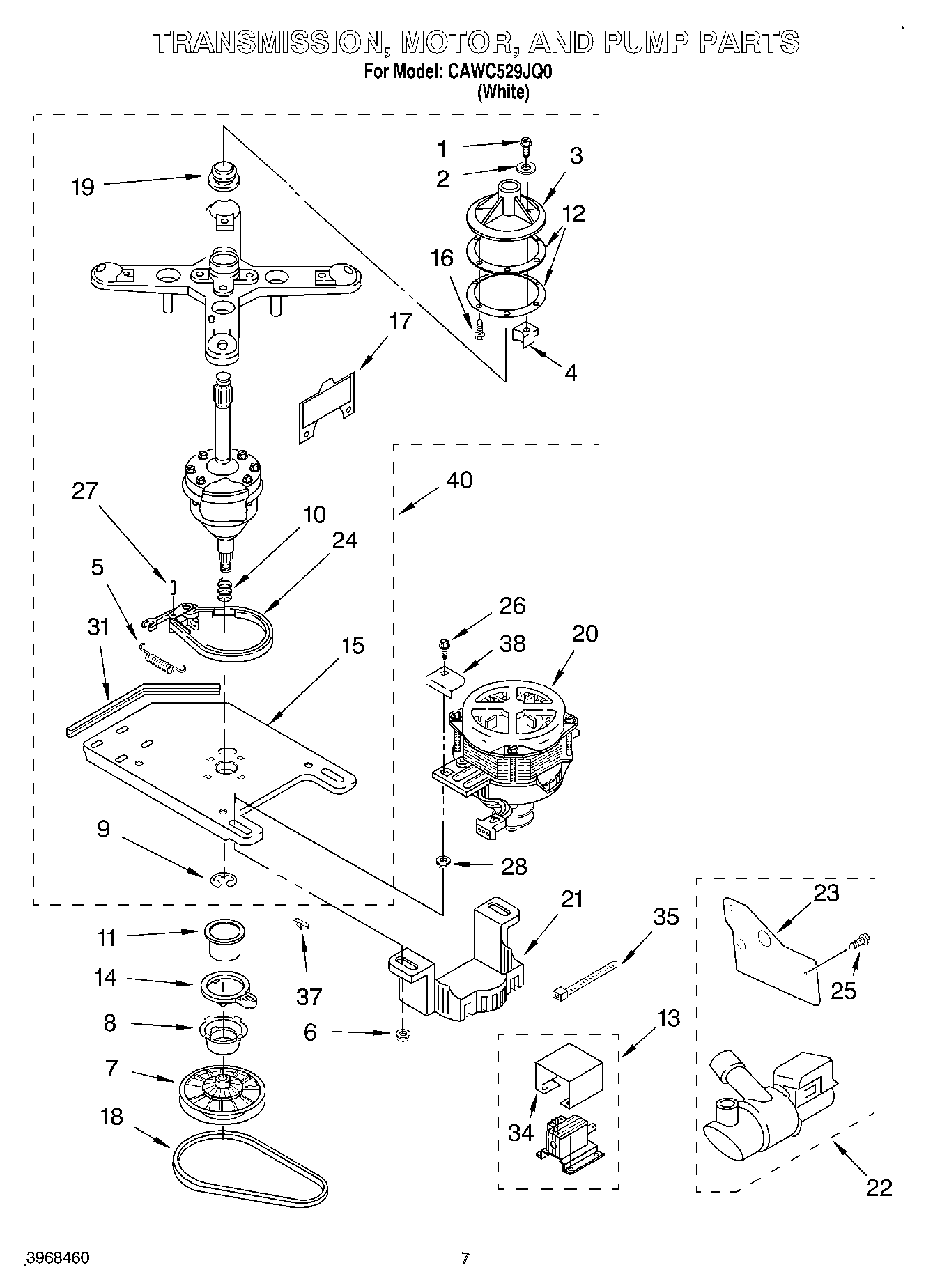

CAWC529JQ0 04 – TRANSMISSION, MOTOR AND PUMP

Products

Position	Product
1	Screw
2	Washer
3	Hub, Drive
4	Saddle Block
5	Spring, Brake
6	Nut, Washer Locking (2)
7	Pulley, Splutch
8	Cam, Splutch
9	WP354987 Whirlpool C-Clip
10	Spring, Splutch
11	Slider, Splutch
12	Gasket, Hub (2)
13	Solenoid
14	Cam Ring, Splutch
15	Plate, Motor Mount
16	Screw, 1/4 (6)
17	Shield & Warning Motor Splash
18	Drive Belt
19	WP3968381 Whirlpool Tub Seal
20	Motor, Main Drive (Includes Items 33, 17, & 6)
21	Shield, Pulley
22	Pump (Complete)
23	Shield, Pump
24	Brake Band
25	Screw
26	Bolt, Motor Mounting (2)
27	Pin, Brake Band
28	90984 Whirlpool Nut
31	Protector, Edge
34	Shield, Solenoid
35	WP2205813 Whirlpool Refrigerator Wire Tie
37	Lock, Solenoid
38	Shield, Motor Connector
40	Transmission Kit
