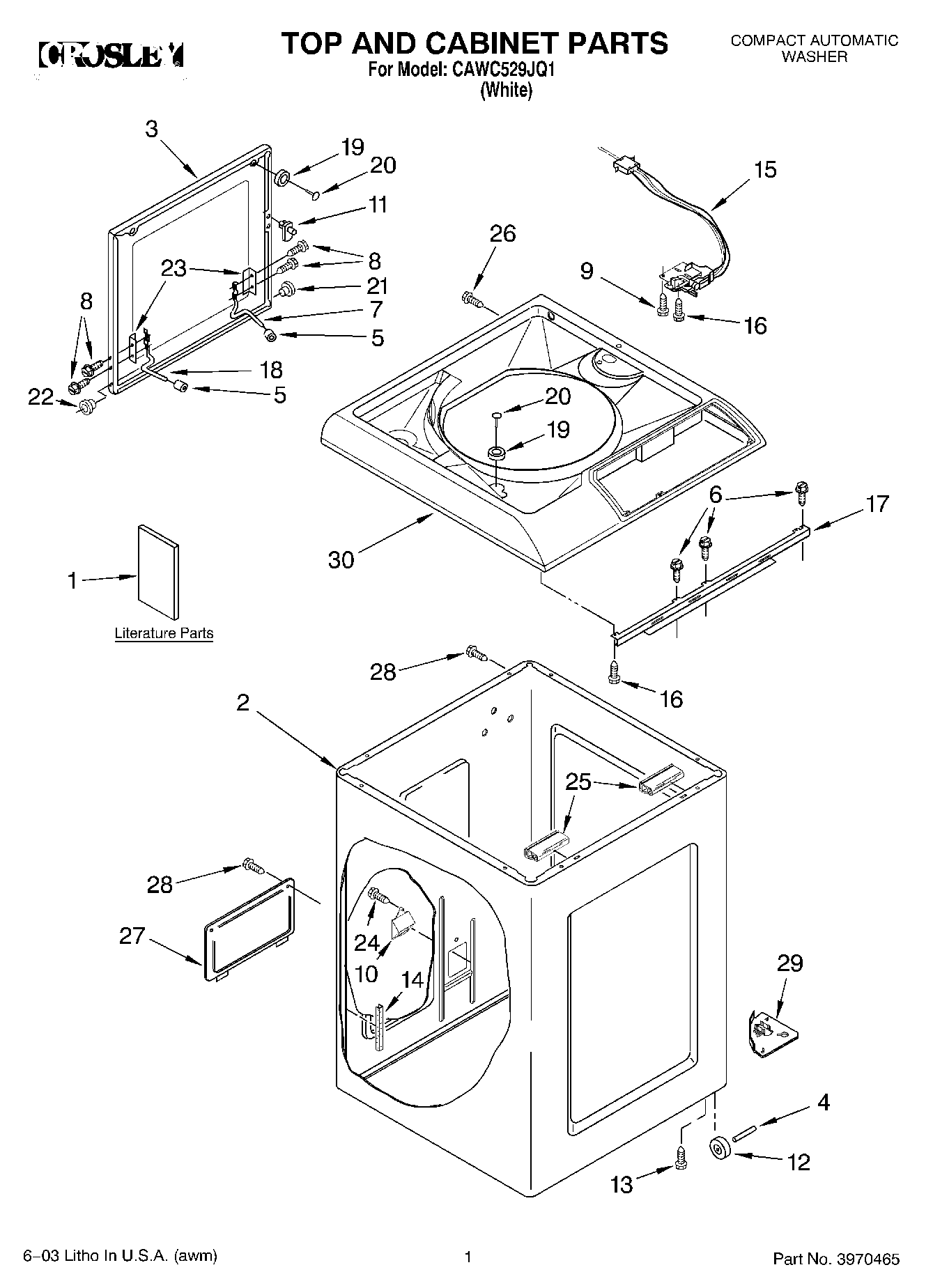

CAWC529JQ1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Energy Guide)
1	Installation Instructions
1	Literature Parts (Wiring Diagram & Tech Sheet Asm)
2	Cabinet
3	Lid (White)
4	Pin, Wheel
5	Bumper, Lid Hinge
6	WP3400872 Whirlpool Screw
7	Hinge, Lid (R.H.)
8	SCREW
9	Screw
10	Cover, Pump
11	WP358684 Whirlpool Strike Assembly
12	Caster (4)
13	Screw
14	Protector, Edge
15	285935 Whirlpool Lid Switch
16	Screw, Switch Mtg.
17	Bracket-Cabinet To Top
18	Hinge, Lid (L.H.)
19	Bumper
20	Rivet
21	Bearing, Hinge (RH)
22	Bearing, Hinge (LH)
23	WP21097 Whirlpool Pad
24	Screw, Pump Mtg. (2)
25	Extrude-Top
26	Screw, Console Cover (4)
27	Panel-Cabinet
28	WP3351614 Whirlpool Screw
29	Gusset (Lower (L.H.))
29	Gusset (Lower (R.H.))
30	Top
