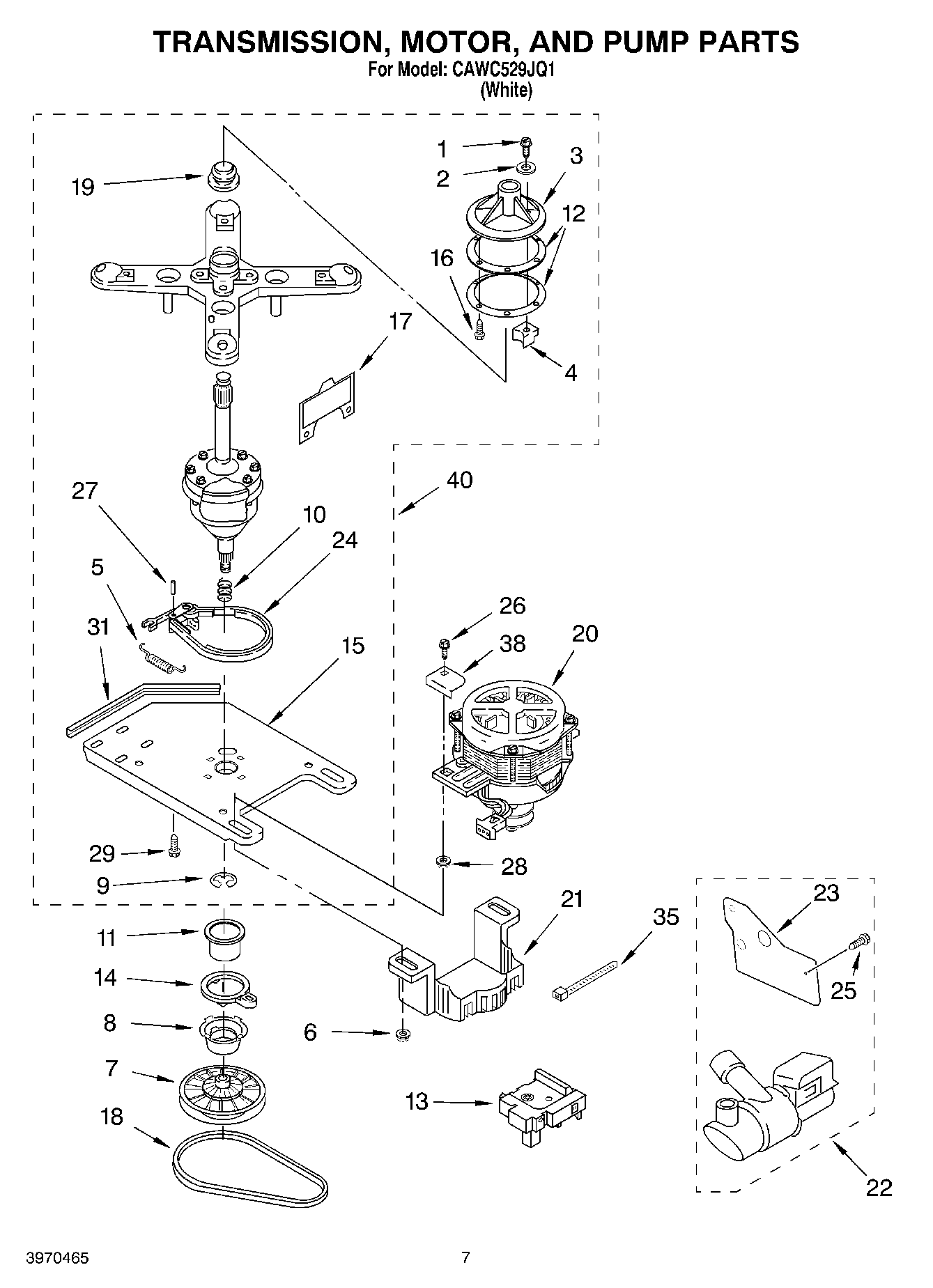

CAWC529JQ1 04 – TRANSMISSION, MOTOR, AND PUMP PARTS

Products

PositionProduct
1Screw
2Washer
3Hub, Drive
4Saddle Block
5Spring, Brake
6Nut, Washer Locking (2)
7Pulley, Splutch
8Cam, Splutch
9WP354987 Whirlpool C-Clip
10Spring, Splutch
11Slider, Splutch
12Gasket, Hub (2)
13Brake Actuator
14Cam Ring, Splutch
15Motor Plate & Bearing Asm
16Screw, 1/4 (6)
17Shield, Motor Splash
18Drive Belt
19WP3968381 Whirlpool Tub Seal
20Motor, Main Drive (Includes Items 33, 17, & 6)
21Shield, Pulley
22Pump (Complete)
23Shield, Pump
24Brake Band
25Screw
26Bolt, Motor Mounting (2)
27Pin, Brake Band
2890984 Whirlpool Nut
29Bolt, Motor Plate (4)
31Protector, Edge
35WP2205813 Whirlpool Refrigerator Wire Tie
38Shield, Motor Connector
40Transmission Kit
