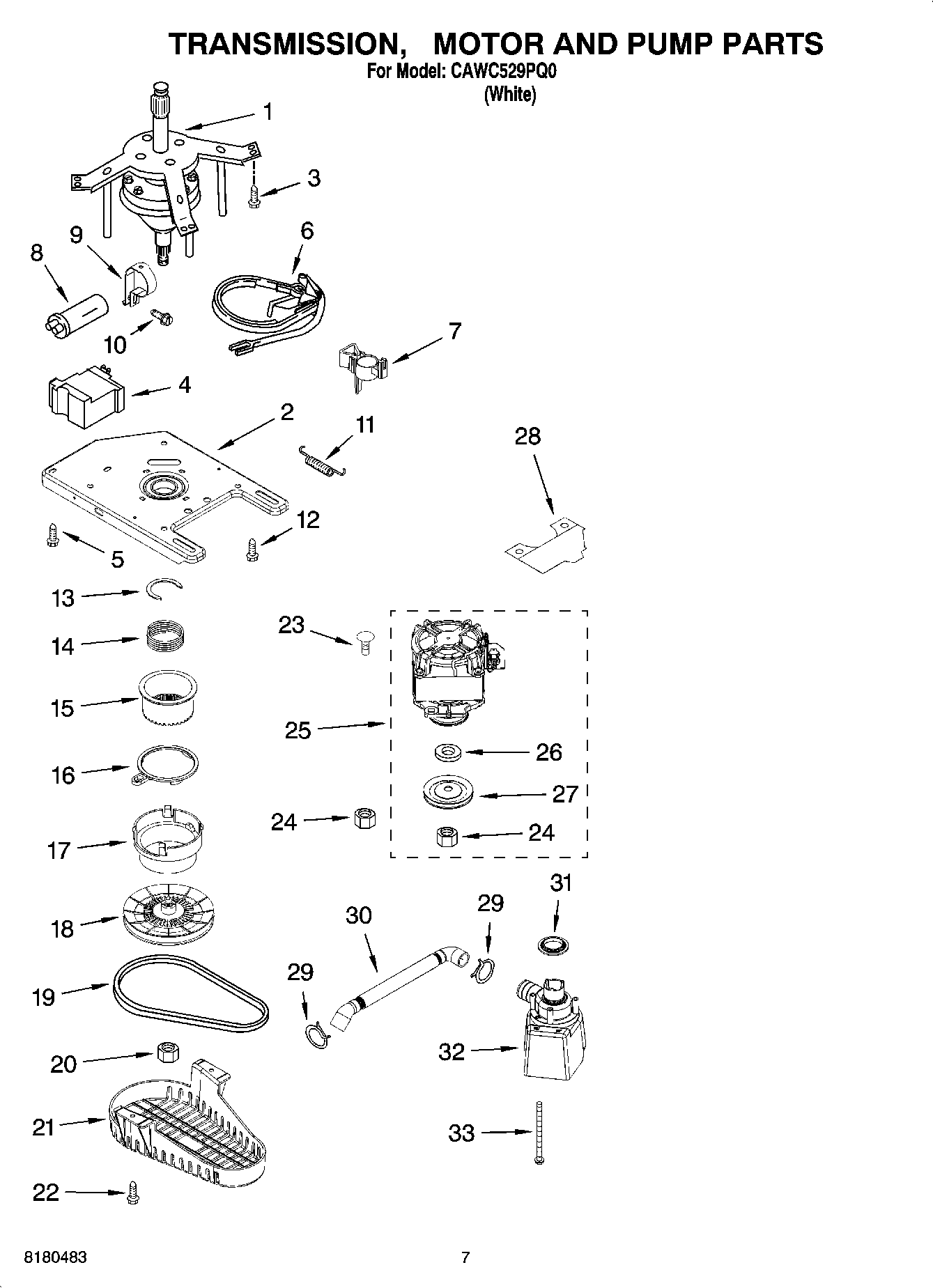

CAWC529PQ0 04 – TRANSMISSION, MOTOR AND PUMP PARTS

CAWC529PQ0 04 – TRANSMISSION, MOTOR AND PUMP PARTS

Written by

in

CAWC529PQ0 04 – TRANSMISSION, MOTOR AND PUMP PARTS

Products

PositionProduct
1Gearcase & Tub Support Asm
2Motor Plate & Bearing Assembly
3Screw, Tub Support (5)
4Brake Actuator
5Screw (3)
6280121 Whirlpool Brake Board
7Support, Brake Band
8W10793290 Whirlpool Capacitor
9Clamp, Capacitor
12Screw, Gearcase to Motor Plate (4)
13Clip
148182269 Whirlpool Spring
15Slider, Splutch
16Cam Ring, Splutch
17Cam, Splutch
18Pulley, Splutch
19Drive Belt
20NUT
21Shield, Pulley
22Screw (4)
23Bolt, Motor Mounting (2)
2490984 Whirlpool Nut
25Motor, Main Drive
26WASHER
27Pulley, Motor
28Shield, Motor
29WP285655 Whirlpool Hose Clamp
30Hose, Pump to Tub
31Seal, Pump to Tub
32Pump (Complete)
33Screw, Pump (3)
