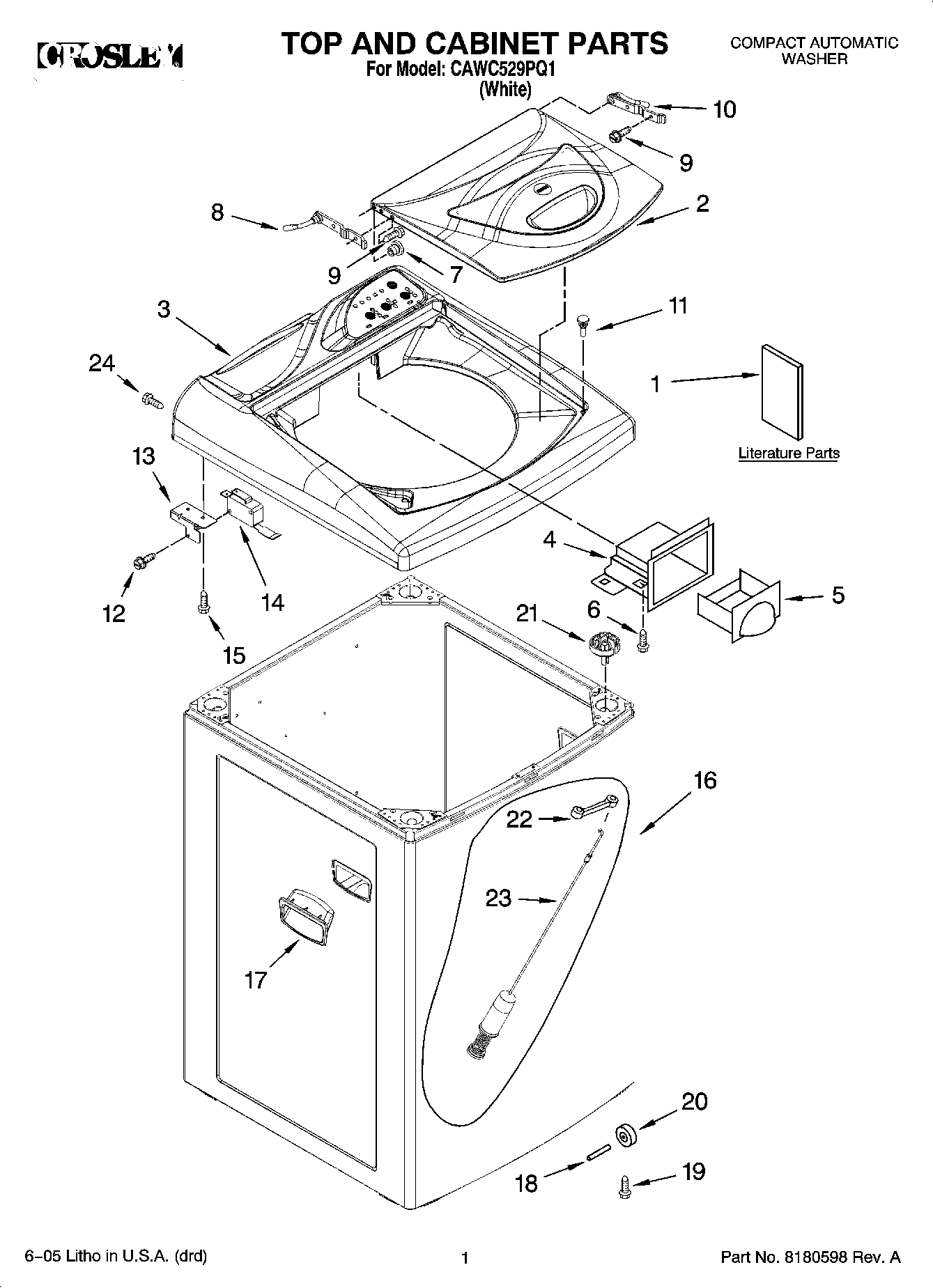

CAWC529PQ1 01 – TOP AND CABINET PARTS

CAWC529PQ1 01 – TOP AND CABINET PARTS

Written by

in

CAWC529PQ1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Wiring Diagram & Tech Sheet Assy
2Lid
3Top
4Housing, Dispenser
5Drawer, Dispenser
7Bearing, Hinge
8Hinge, Lid (LH)
9Screw, Lid Hinge (4)
10Hinge, Lid (RH)
11BUMPER
12489392 Whirlpool Refrigerator Screw
13Bracket, Lid Switch
14Switch, Lid
15Screw (2)
16Cabinet (Includes 17)
17Handle, Cabinet
18Shaft, Wheel (4)
19Screw (4)
20Wheel (4)
21W10764578 Whirlpool Suspension
22Strap, Snubber
24WP3400094 Whirlpool Screw
