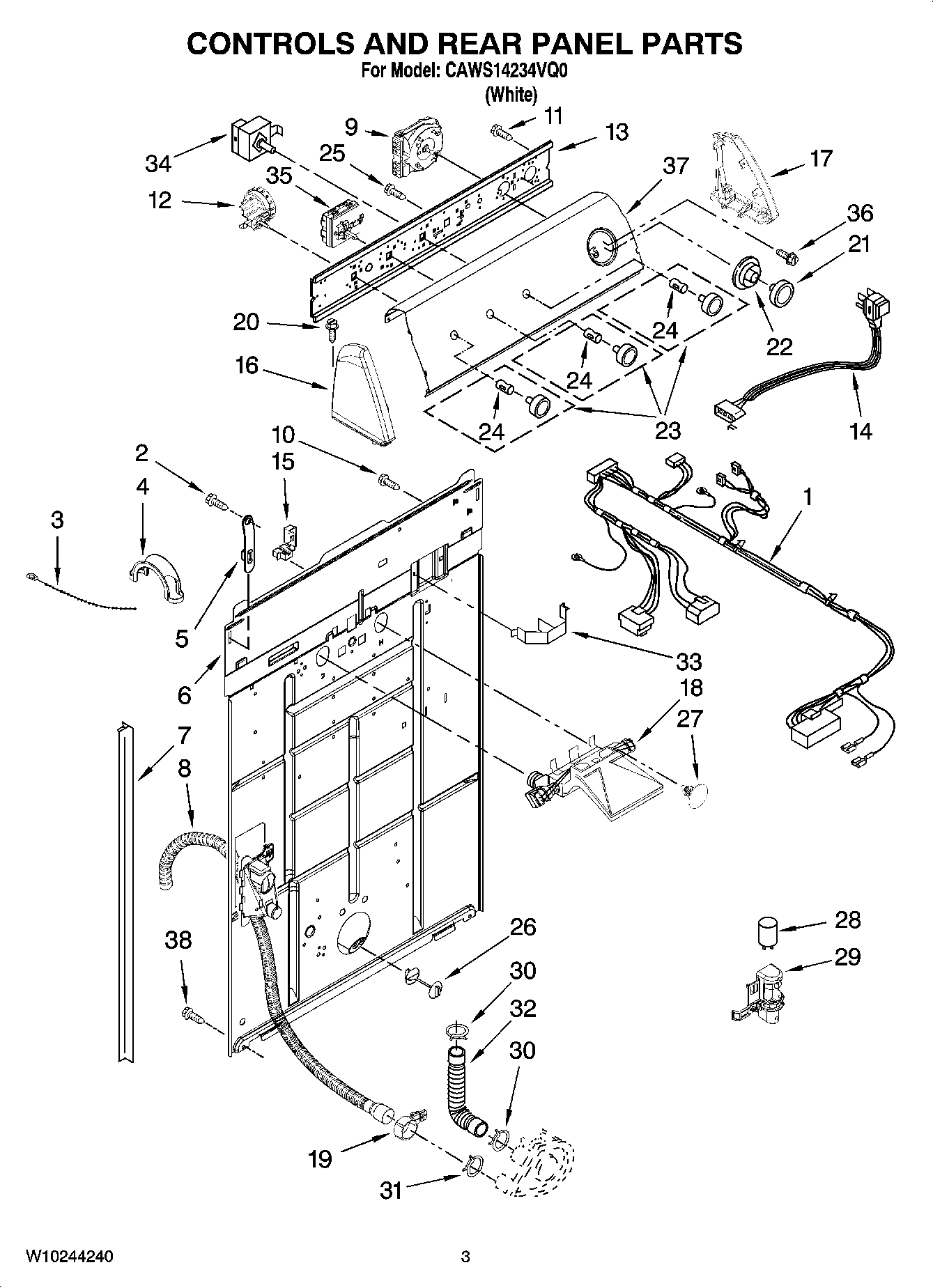

CAWS14234VQ0 02 – CONTROLS AND REAR PANEL PARTS

CAWS14234VQ0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

CAWS14234VQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1W10215082 Whirlpool Wire Harness
2WP9740848 Whirlpool Dishwasher Screw
3WPW10339879 Whirlpool Wire Tie
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6WPW10194450 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8WPW10189267 Whirlpool Drain Hose
9WPW10175553 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339251 Whirlpool Washer Water Level Control Pressure Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
17W10820038 Whirlpool Endcap
18WPW10144820 Whirlpool Washer Water Inlet Valve
198541668 Whirlpool Washer Clamp
20WP388326 Whirlpool Screw
21WP8538949 Whirlpool Knob
22WP8538955 Whirlpool Dial
23KNOB
24WP8536939 Whirlpool Spring Clip
253400073 Whirlpool Screw
26WP8519200 Whirlpool Support Assembly
27Clip, Push-In Retainer
28CAPACITOR
29Clip, Capacitor
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
34W10851055 Whirlpool Cycle Switch
35WPW10112532 Whirlpool Temperature Control Switch
36WP3400818 Whirlpool Screw
37Panel, Console
38WP3390631 Whirlpool Screw
