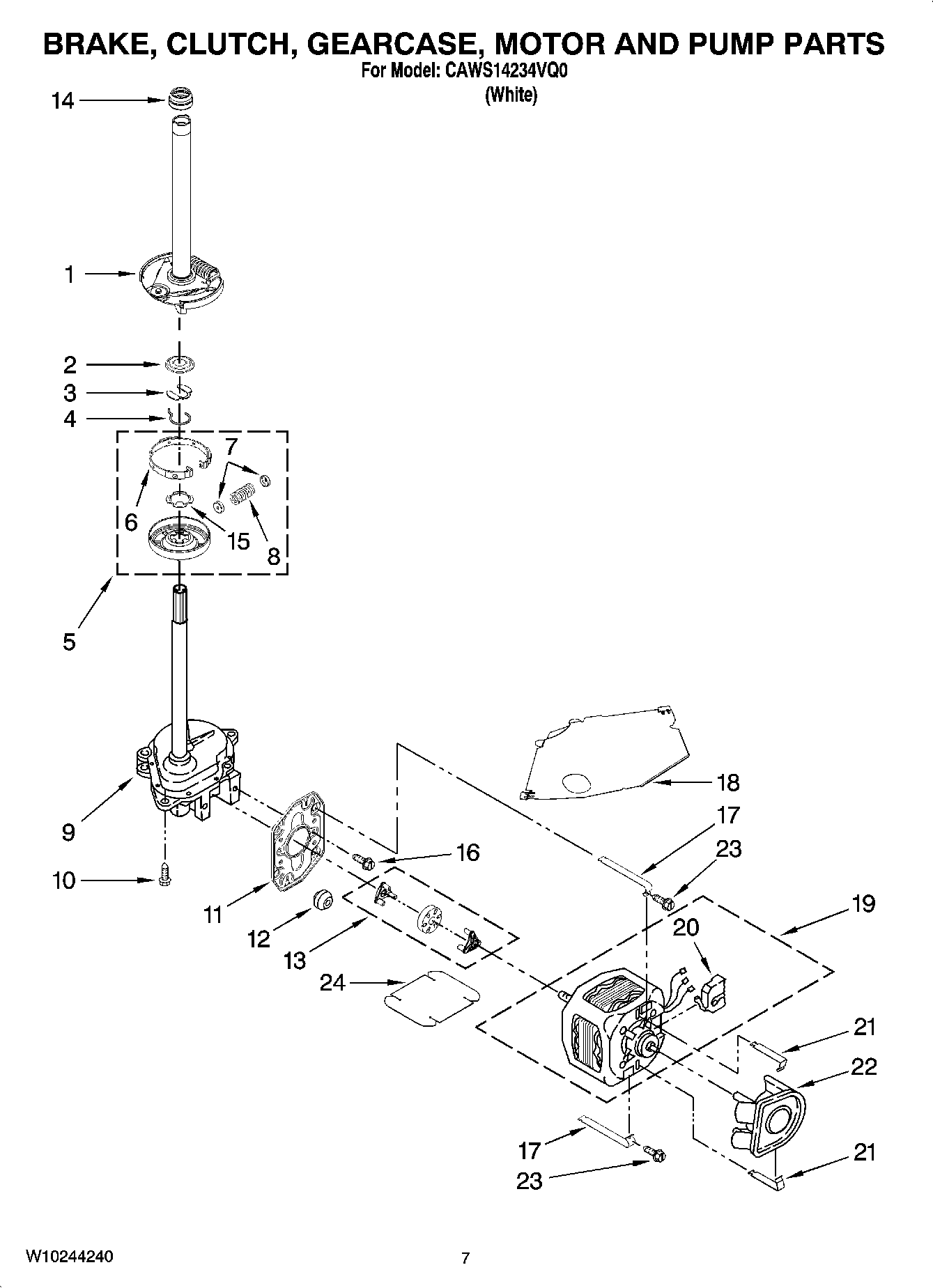

CAWS14234VQ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

CAWS14234VQ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Written by

in

CAWS14234VQ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2WP63292 Whirlpool Washer
3WPW10080230 Whirlpool Ring
4285353 Whirlpool Ring
5285785 Whirlpool Washer Direct Drive Clutch
6285790 Whirlpool Washer Clutch Band and Lining Kit
7WP62646 Whirlpool Cap
8WP3946792 Whirlpool Spring
93360629 Whirlpool Washer Gearcase Transmission
10WP3400516 Whirlpool Screw
11WP62611 Whirlpool Plate
12WP62691 Whirlpool Grommet
13285753A Whirlpool Washer Direct Drive Motor Coupling
14WP8577374 Whirlpool Seal Shaft
15Clip, Anti-Rattle
17WPW10086010 Whirlpool Motor Retainer Clip
18W10838408 Whirlpool Motor Shield
19WP661600 Whirlpool Drive Motor
21WP8546127 Whirlpool Retainer Clip
22WP3363394 Whirlpool Washer Drain Pump
23WP273556 Whirlpool Screw
24WP3946532 Whirlpool Shield
