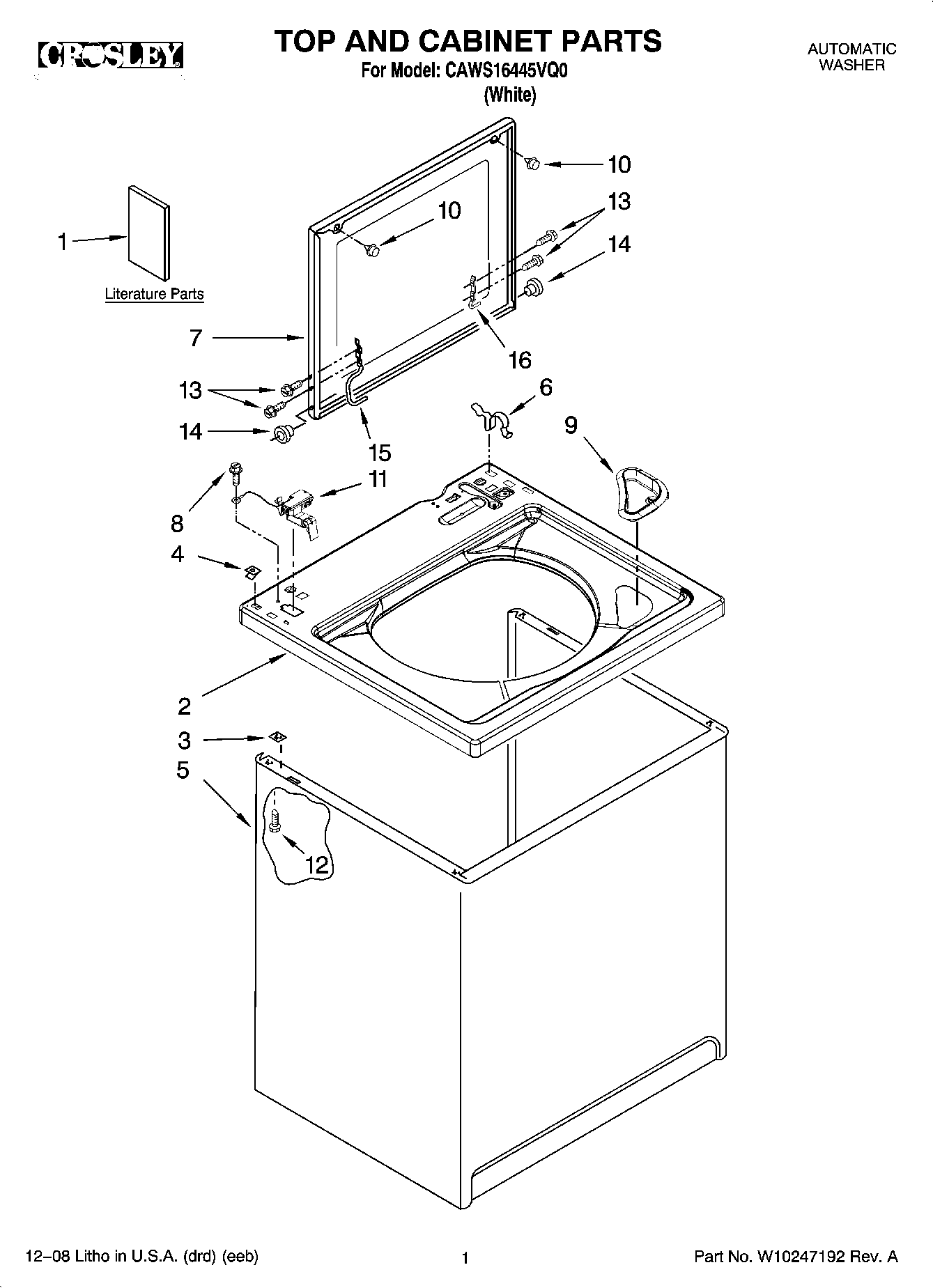

CAWS16445VQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Use & Care Guide
1	Feature Sheet
1	Wiring Diagram
1	Installation Instructions (Spanish)
1	Installation Instructions (English/French)
2	Top
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	Lid
8	WP3351614 Whirlpool Screw
9	WPW10192089 Whirlpool Washer Bleach Dispenser
10	WP9724509 Whirlpool Bumper
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	WP3390631 Whirlpool Screw
13	SCREW
14	Bearing, Lid Hinge (2)
15	Hinge, Lid (L.H.)
16	WP91770 Whirlpool Hinge
