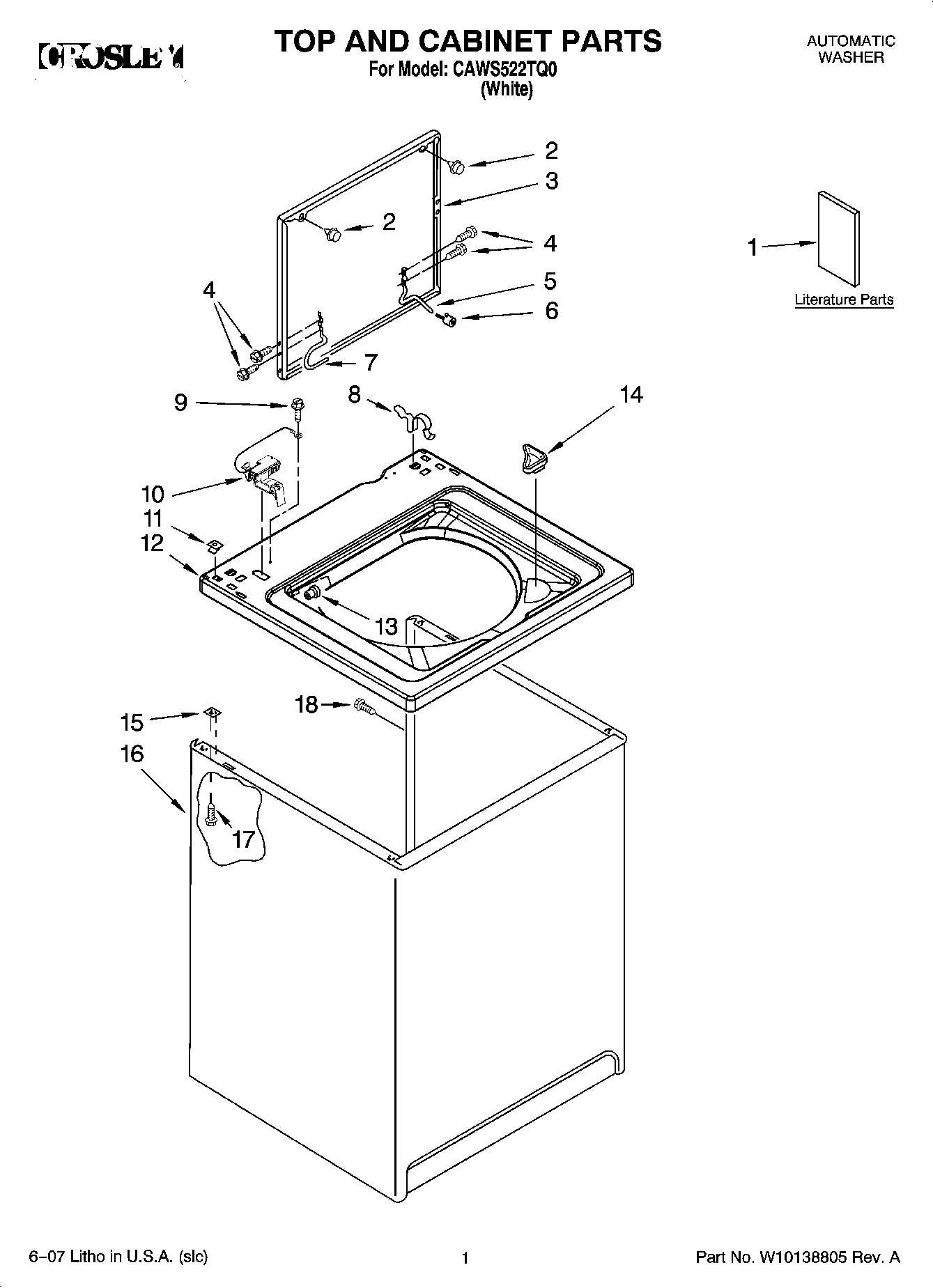

CAWS522TQ0 01 – TOP AND CABINET PARTS

CAWS522TQ0 01 – TOP AND CABINET PARTS

Written by

in

CAWS522TQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
1Feature Sheet
1Wiring Diagram
1Installation Instructions
2WP9724509 Whirlpool Bumper
3WPW10193857 Whirlpool Lid Assembly
4SCREW
5WP54583 Whirlpool Hinge
6Bumper, Lid Hinge
78318088 Whirlpool Hinge Assembly
8WP62780 Whirlpool Cabinet Clip
9WP3351614 Whirlpool Screw
10WP8318084 Whirlpool Washer Lid Switch Assembly
11WP357213 Whirlpool Hinge Stopper
12Top (White)
13WP21258 Whirlpool Washer Lid Hinge Bearing
14WP3362952 Whirlpool Bezel
15WP62750 Whirlpool Spacer
1663424 Whirlpool Cabinet Assembly
17WP3390631 Whirlpool Screw
18WP308685 Whirlpool Microwave Screw
