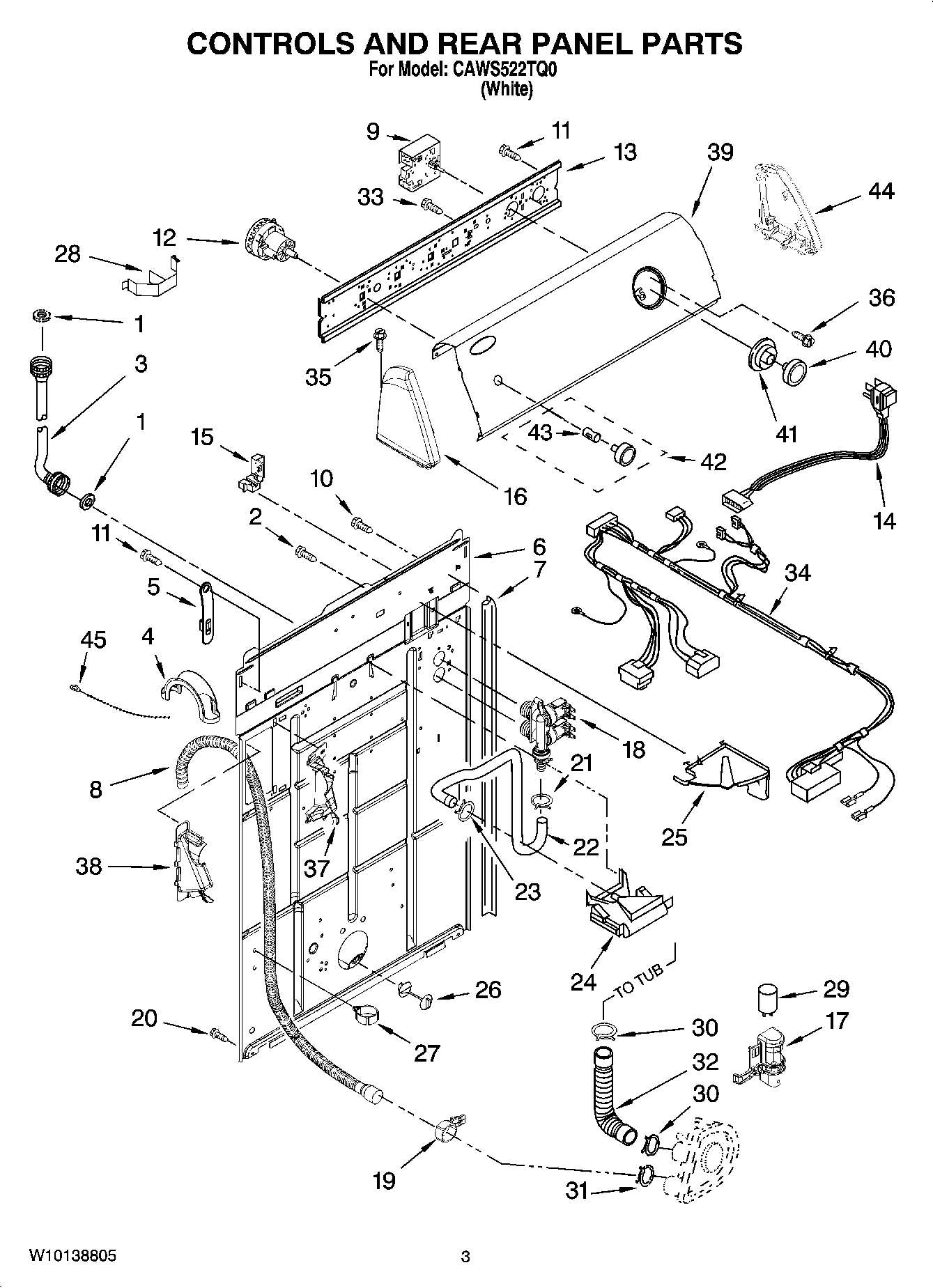

CAWS522TQ0 02 – CONTROLS AND REAR PANEL PARTS

CAWS522TQ0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

CAWS522TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9Timer, Control (60 Hz.) (Motor Not A Service Part)
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339334 Whirlpool Washer Water Level Control Switch
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Item 15)
15Strain Relief, Power Cord
17Clip, Capacitor
18WPW10113122 Whirlpool Water Valve
198541668 Whirlpool Washer Clamp
20WP3390631 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25WPL 8539874
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28Clip, Harness & Pressure Hose
29CAPACITOR
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
333400073 Whirlpool Screw
34Harness, Wiring (For Details See Page 9 & 10)
35WP388326 Whirlpool Screw
36WP3400818 Whirlpool Screw
38WPW10096921 Whirlpool Hose
39Panel, Console
40W10807860 Whirlpool White Control Knob
41Dial, Timer
42WP8557460 Whirlpool Knob
43WP8536939 Whirlpool Spring Clip
44W10820038 Whirlpool Endcap
45WPW10339879 Whirlpool Wire Tie
