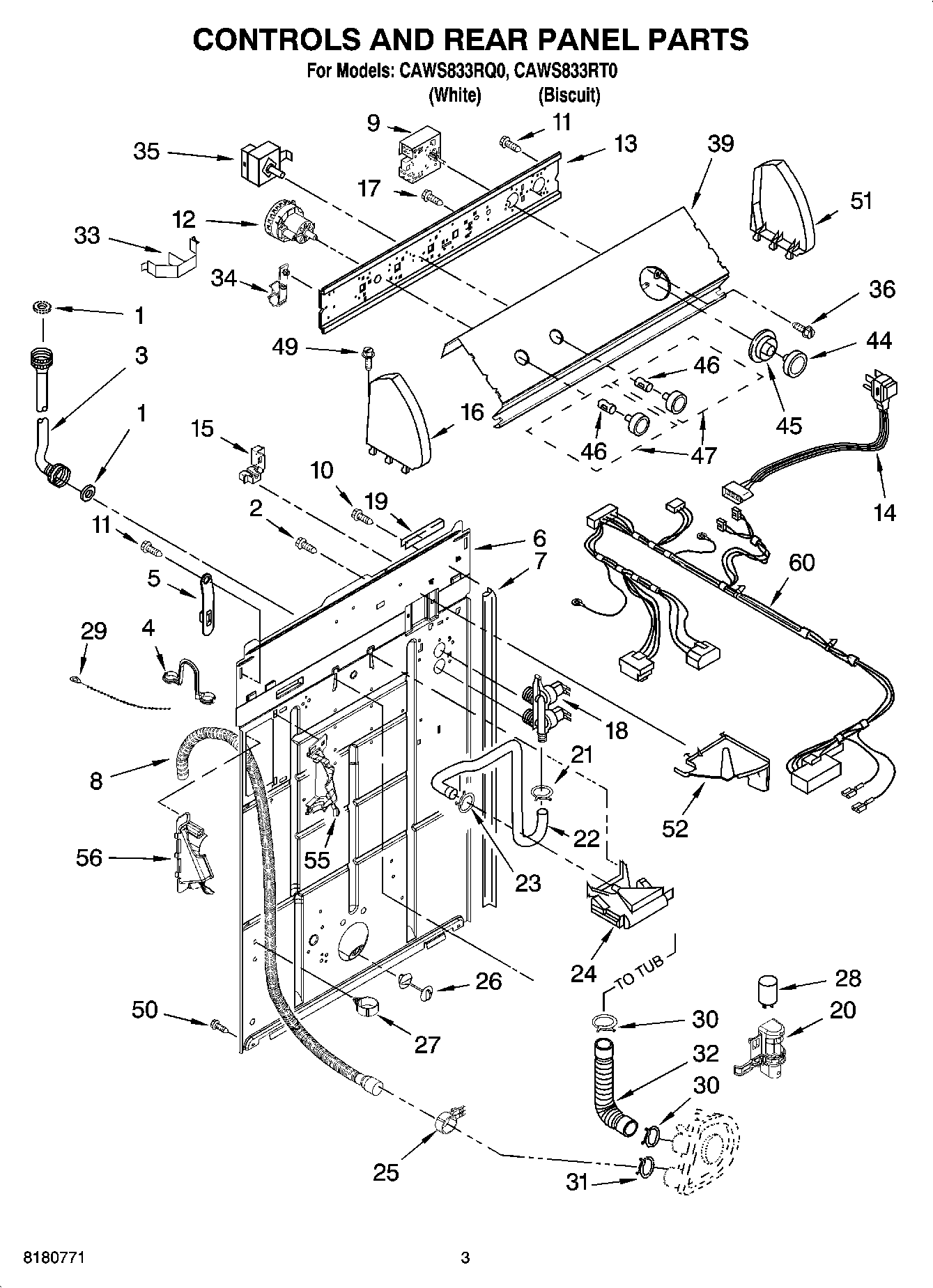

CAWS833RT0 02 – CONTROL AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10337780 Whirlpool Pressure Switch
13	WP3948608 Whirlpool Bracket
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (BIscuit)
17	3400073 Whirlpool Screw
18	285805 Whirlpool Washer Water Inlet Valve
19	Edge Protector
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	8541668 Whirlpool Washer Clamp
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	CAPACITOR
29	WPW10339879 Whirlpool Wire Tie
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	Retainer, Harness
35	WPW10168256 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
39	Panel, Console (Biscuit)
39	Panel, Console (White)
44	Knob, Timer ((For LSQ9010LG0))
44	W10807860 Whirlpool White Control Knob
45	Dial, Timer
45	WPL 8538956
46	WP8536939 Whirlpool Spring Clip
47	WPL 8538958
47	WP8557460 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
51	WPL 8271362
52	WPL 8539874
56	WPW10096921 Whirlpool Hose
60	WPL 3958071
