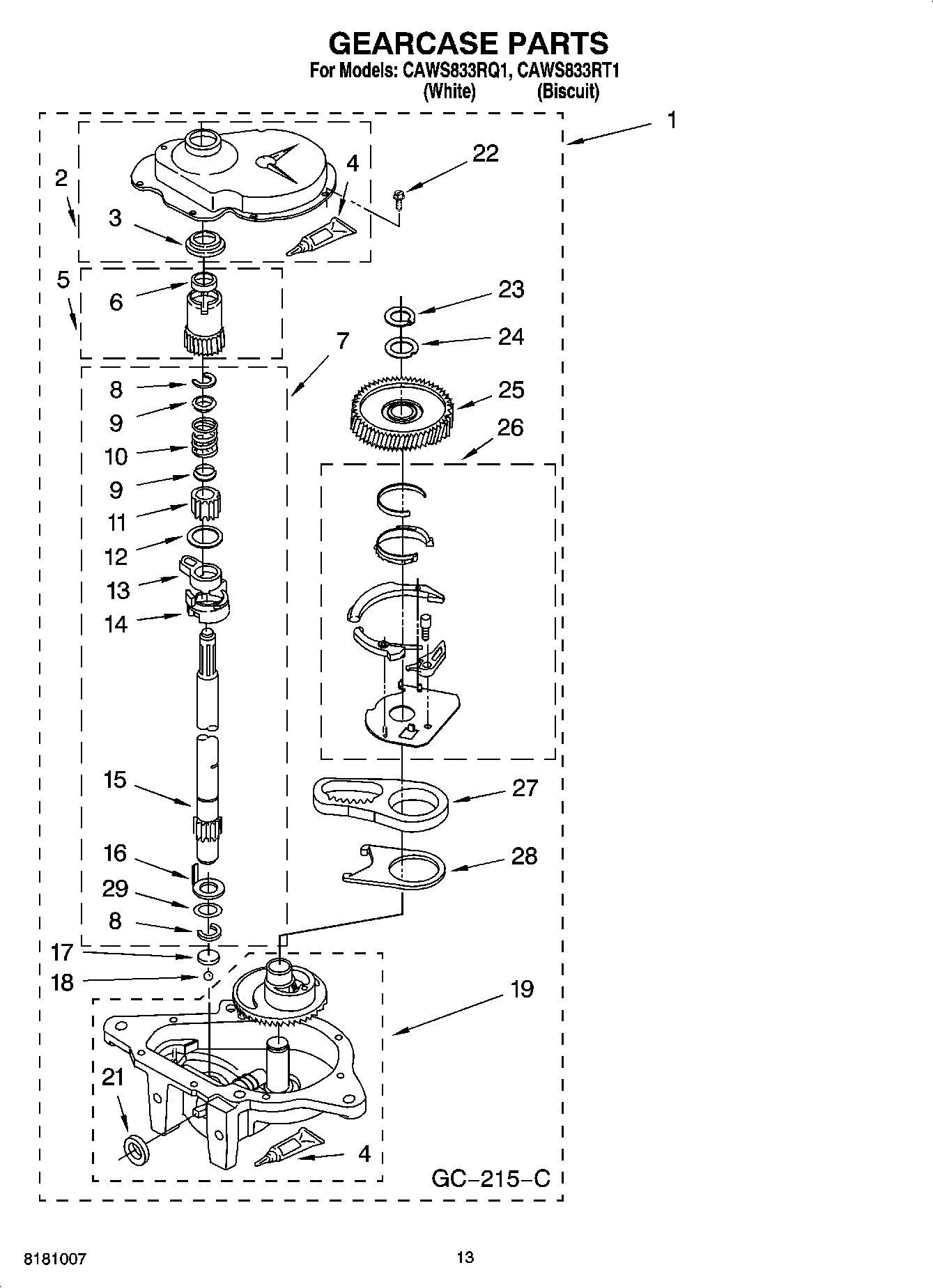

CAWS833RT1 09 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

CAWS833RT1 09 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

CAWS833RT1 09 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
WPL ARI144606A
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WP285195 Whirlpool Sealer Assembly
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL ARI144603A
WPL ARI144604A
WPL ARI144605A
350572 Whirlpool Oil Transmission 15 Oz
Drain Protector (Not Included)
285320 Whirlpool Washer Siphon Break Kit
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
2285202 Whirlpool Cover Assembly
3WP3349985 Whirlpool Shaft Seal
6WP356427 Whirlpool Shaft Seal
8Ring, Retaining (2)
962677 Whirlpool Retainer
10Spring, Agitator
1262619 Whirlpool Washer
15WP389387 Whirlpool Agitator Shaft
16Washer, Cam Thrust
17285205 Whirlpool Bearing
19Bottom and Pinion, Gearcase
21285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22WP3351614 Whirlpool Screw
23Ring, Retaining
24Washer Kit, Thrust
26NEUTRL-PAK
273360629 Whirlpool Washer Gearcase Transmission
29WP388815 Whirlpool Washer
