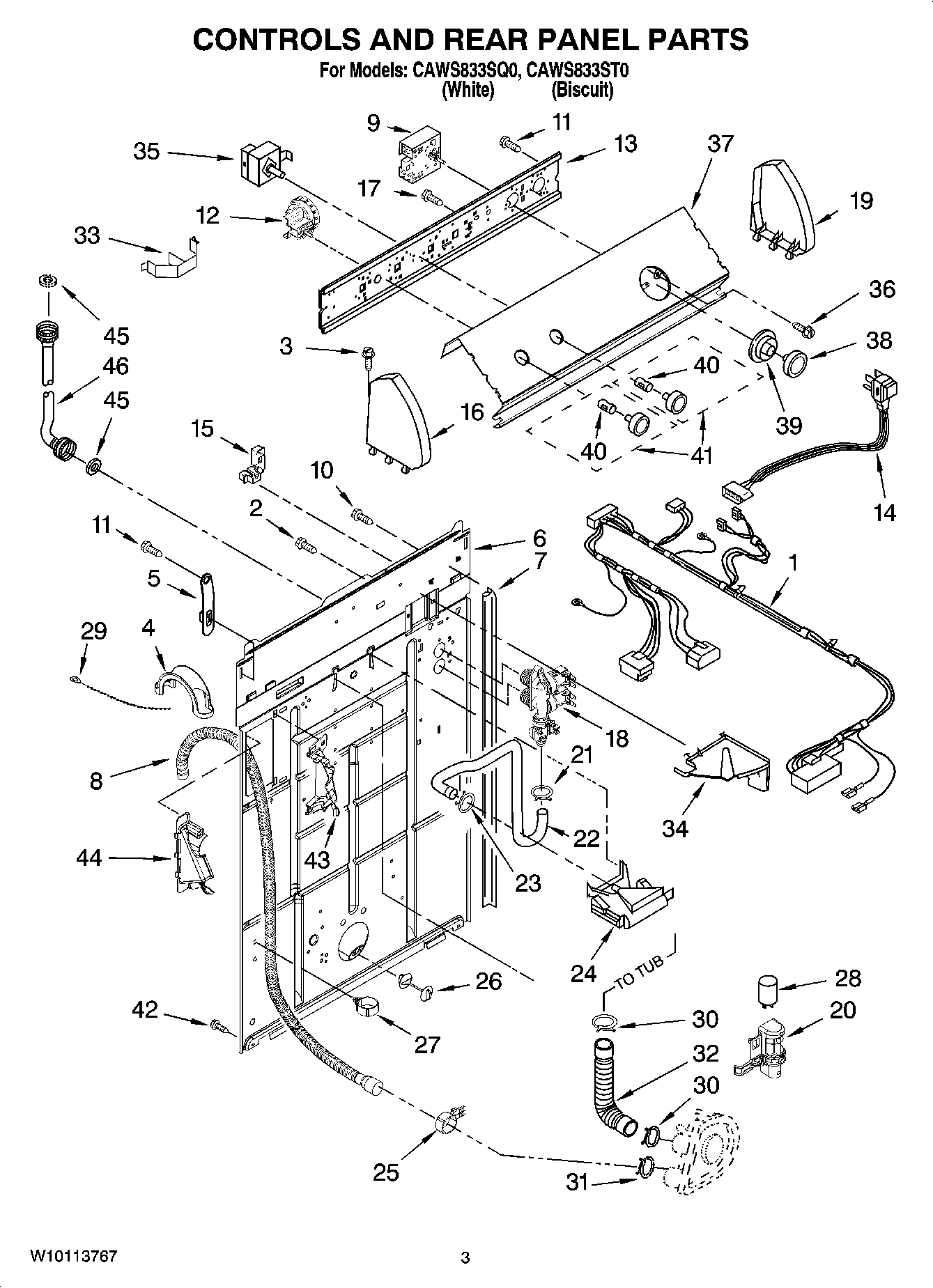

CAWS833SQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1Wiring Harness (For Detail See Pages 9 & 10
2WP9740848 Whirlpool Dishwasher Screw
3WP388326 Whirlpool Screw
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8546685 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339251 Whirlpool Washer Water Level Control Pressure Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
173400073 Whirlpool Screw
18WP8578340 Whirlpool Valve
19WPL 8271362
19W10820038 Whirlpool Endcap
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
258541668 Whirlpool Washer Clamp
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28CAPACITOR
29WPW10339879 Whirlpool Wire Tie
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
34WPL 8539874
35WP8578337 Whirlpool Water Temperature Switch
36WP3400818 Whirlpool Screw
37Panel, Console (Biscuit)
37Panel, Console (White)
38WP8538949 Whirlpool Knob
38Knob, Timer ((For LSQ9010LG0))
39WP8538955 Whirlpool Dial
39WPL 8538956
40WP8536939 Whirlpool Spring Clip
41WPL 8538958
41KNOB
42WP3390631 Whirlpool Screw
44WPW10096921 Whirlpool Hose
45WP16123 Whirlpool Washer
46FILL HOSE 5' W/WASHER
46WP89503 Whirlpool Washer Fill Hose
