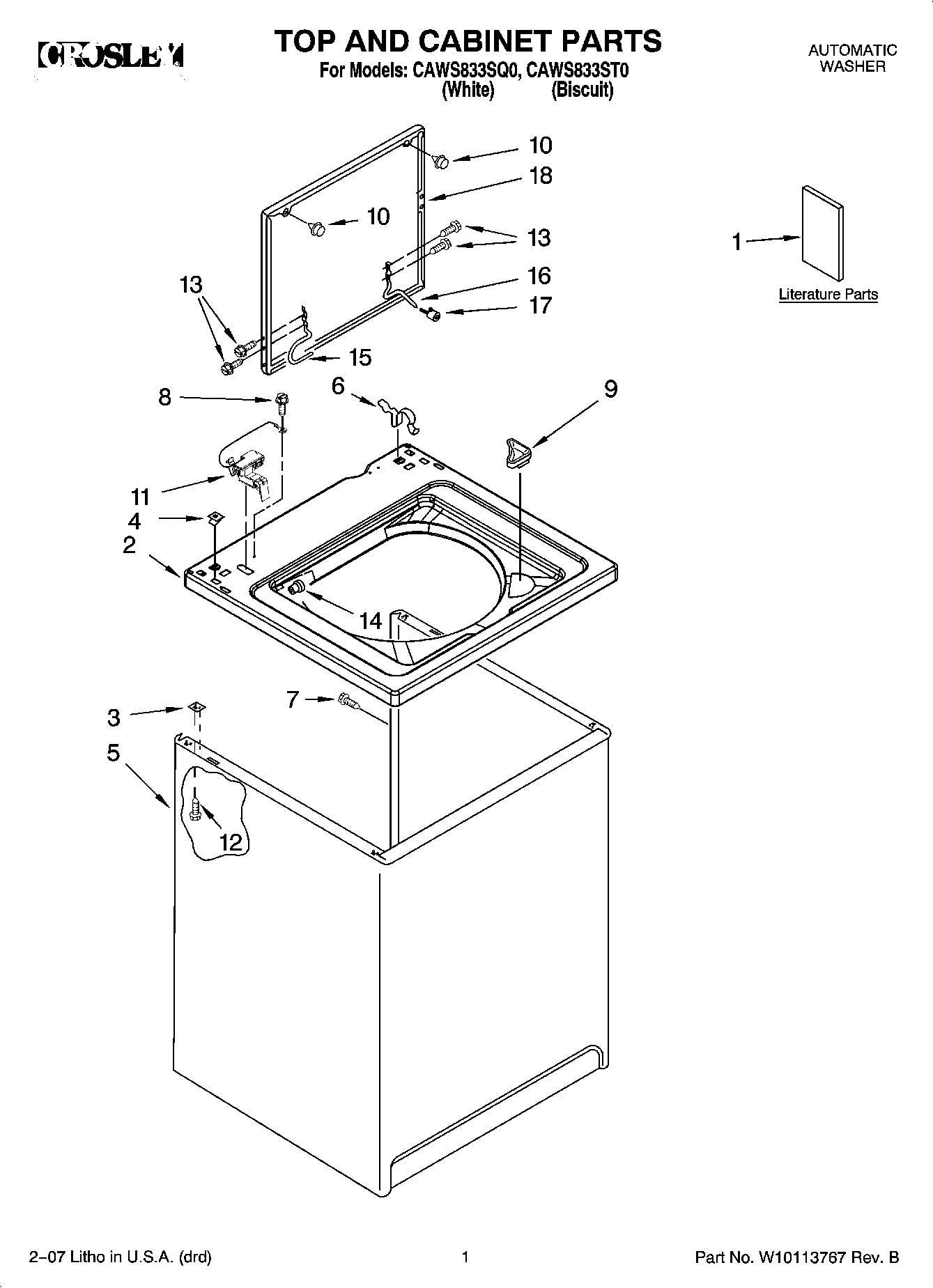

CAWS833ST0 01 – TOP AND CABINET PARTS

CAWS833ST0 01 – TOP AND CABINET PARTS

Written by

in

CAWS833ST0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
1Feature Sheet
1Wiring Diagram
1Installation Instructions
2Top (Biscuit)
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
5Cabinet (Biscuit)
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP308685 Whirlpool Microwave Screw
8WP3351614 Whirlpool Screw
9WP3362952 Whirlpool Bezel
10WP9724509 Whirlpool Bumper
11WP8318084 Whirlpool Washer Lid Switch Assembly
12WP3390631 Whirlpool Screw
13SCREW
14WP21258 Whirlpool Washer Lid Hinge Bearing
158318088 Whirlpool Hinge Assembly
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WPW10193857 Whirlpool Lid Assembly
18LID
