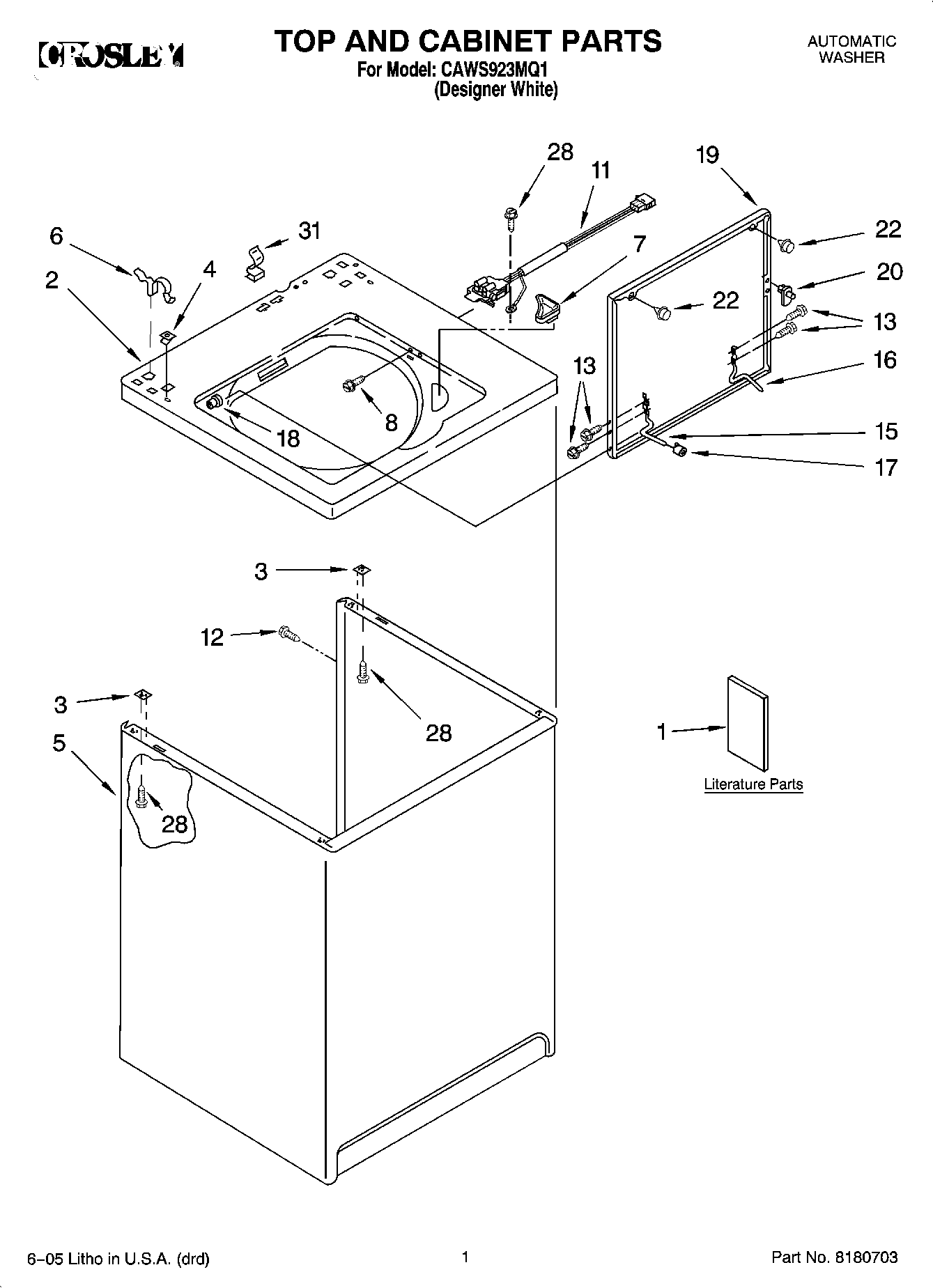

CAWS923MQ1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF REPAIR MANUALS
1Installation Instructions
1Wiring Diagram
1Use & Care Guide
1Feature Sheet
1Energy Guide
1Following May Be Purchased
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP3362952 Whirlpool Bezel
8WP3356311 Whirlpool Screw
113949247V Whirlpool Washer Lid Switch Assembly
12WP308685 Whirlpool Microwave Screw
13SCREW
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
28WP3390631 Whirlpool Screw
31WP90016 Whirlpool Clip
