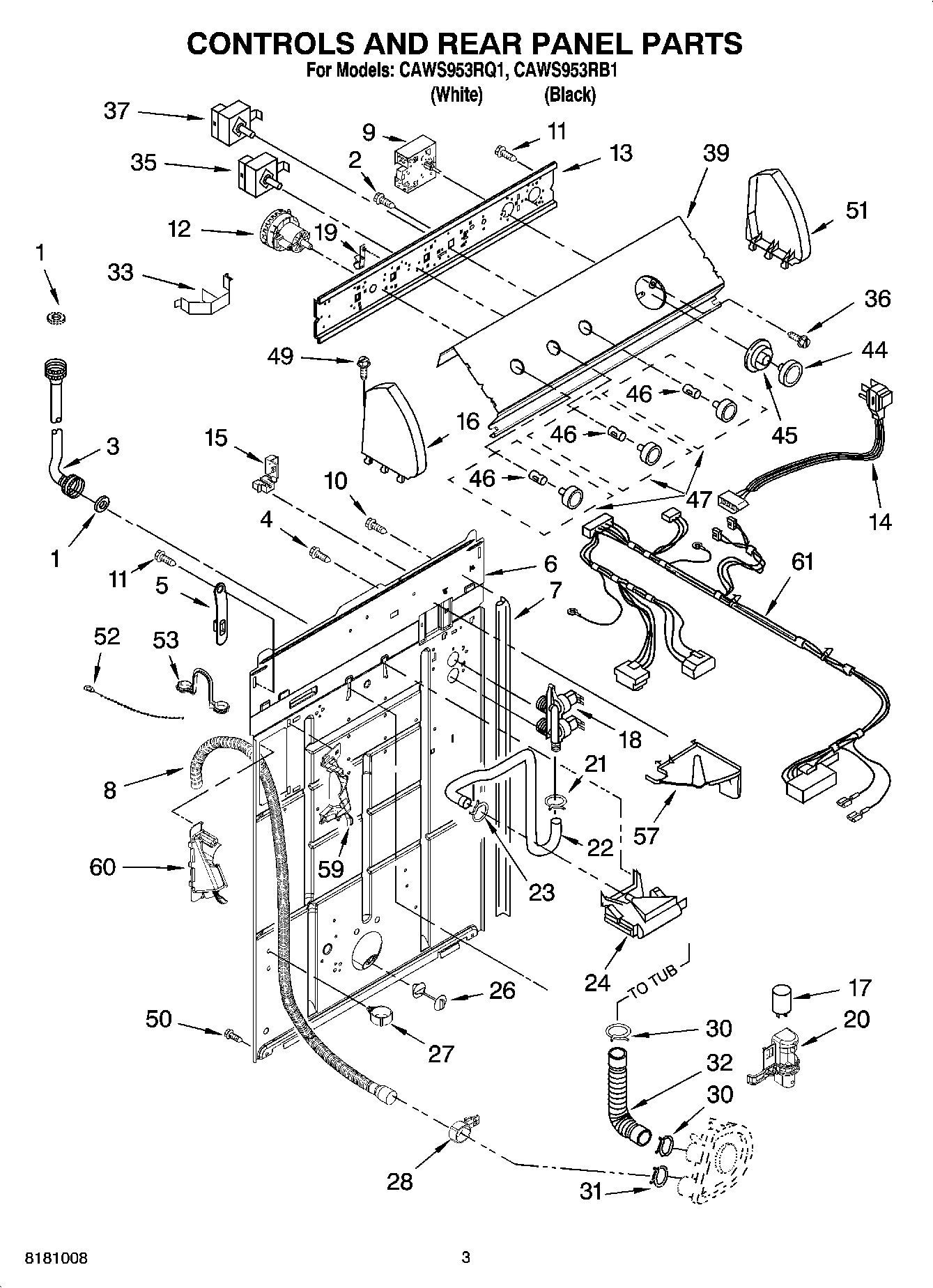

CAWS953RB1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3FILL HOSE 5' W/WASHER
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3951702 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339326 Whirlpool Washer Water Level Switch
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
16Cap, End (L.H.)
17CAPACITOR
18285805 Whirlpool Washer Water Inlet Valve
19Retainer, Harness
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
288541668 Whirlpool Washer Clamp
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
37W10851055 Whirlpool Cycle Switch
39Panel, Console
44WP8538949 Whirlpool Knob
45WP8538955 Whirlpool Dial
46WP8536939 Whirlpool Spring Clip
47KNOB
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51Cap, End (R.H.)
51W10820038 Whirlpool Endcap
52WPW10339879 Whirlpool Wire Tie
53WP8577378 Whirlpool Retainer
57WPL 8539874
60WPW10096921 Whirlpool Hose
61Miscellaneous Parts Bag
61WPL ARI144636A
61WPL 3958072
