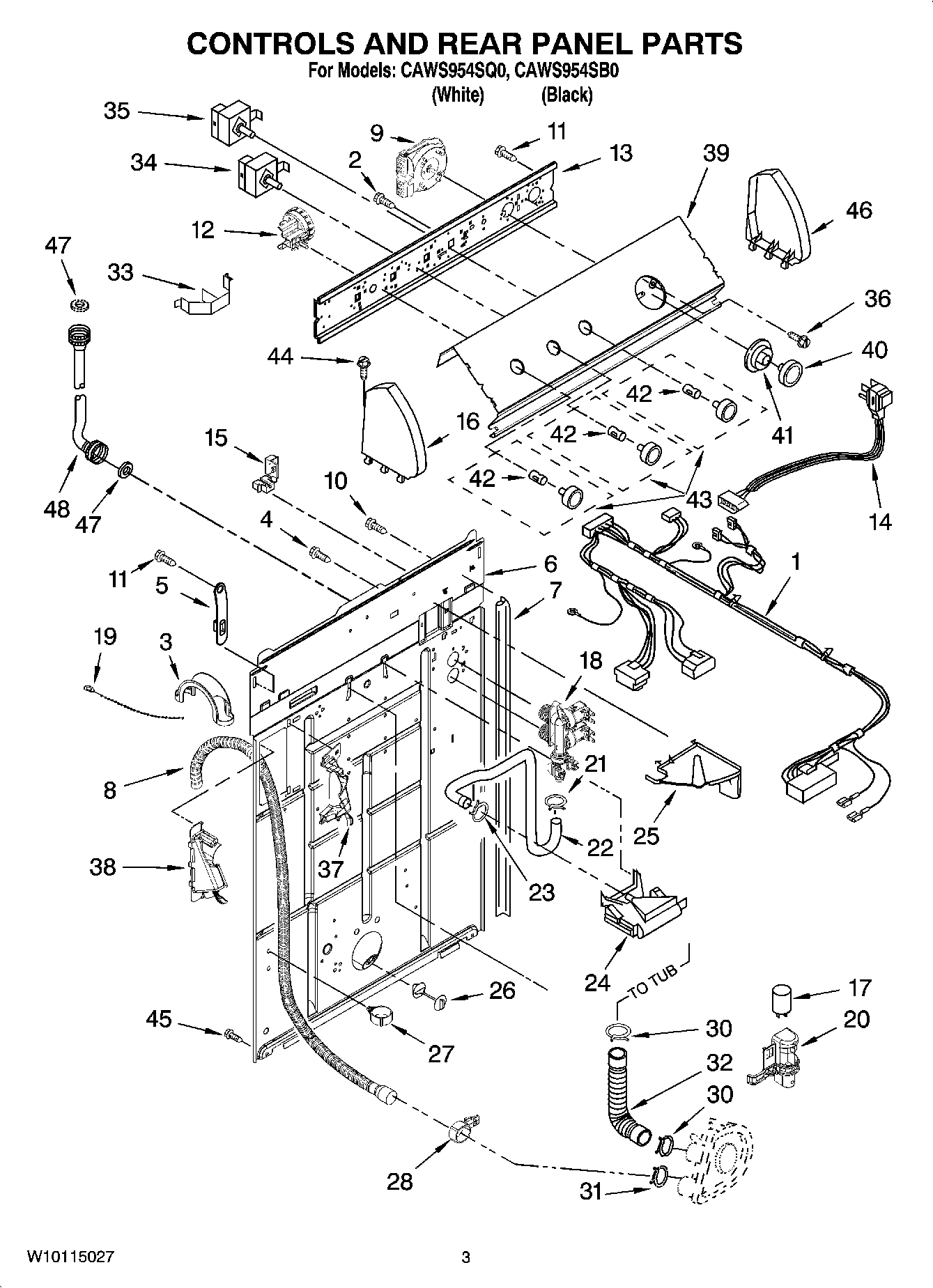

CAWS954SB0 02 – CONTROLS AND REAR PANEL PARTS

CAWS954SB0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

CAWS954SB0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WPL 3958077
23400073 Whirlpool Screw
3WP8577378 Whirlpool Retainer
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8577356 Whirlpool Washer Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339250 Whirlpool Washer Water Level Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.)
17CAPACITOR
18WP8578343 Whirlpool Valve
19WPW10339879 Whirlpool Wire Tie
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WPL 8539874
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
288541668 Whirlpool Washer Clamp
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
34WP8578338 Whirlpool Dishwasher Temperature Switch
35W10851055 Whirlpool Cycle Switch
36WP3400818 Whirlpool Screw
38WPW10096921 Whirlpool Hose
39Panel, Console (White Model)
39Panel, Console (Black Model)
40WP8538949 Whirlpool Knob
41WP8538955 Whirlpool Dial
42WP8536939 Whirlpool Spring Clip
43KNOB
44WP388326 Whirlpool Screw
45WP3390631 Whirlpool Screw
46W10820038 Whirlpool Endcap
46Cap, End (R.H.)
47WP16123 Whirlpool Washer
48FILL HOSE 5' W/WASHER
48WP89503 Whirlpool Washer Fill Hose
