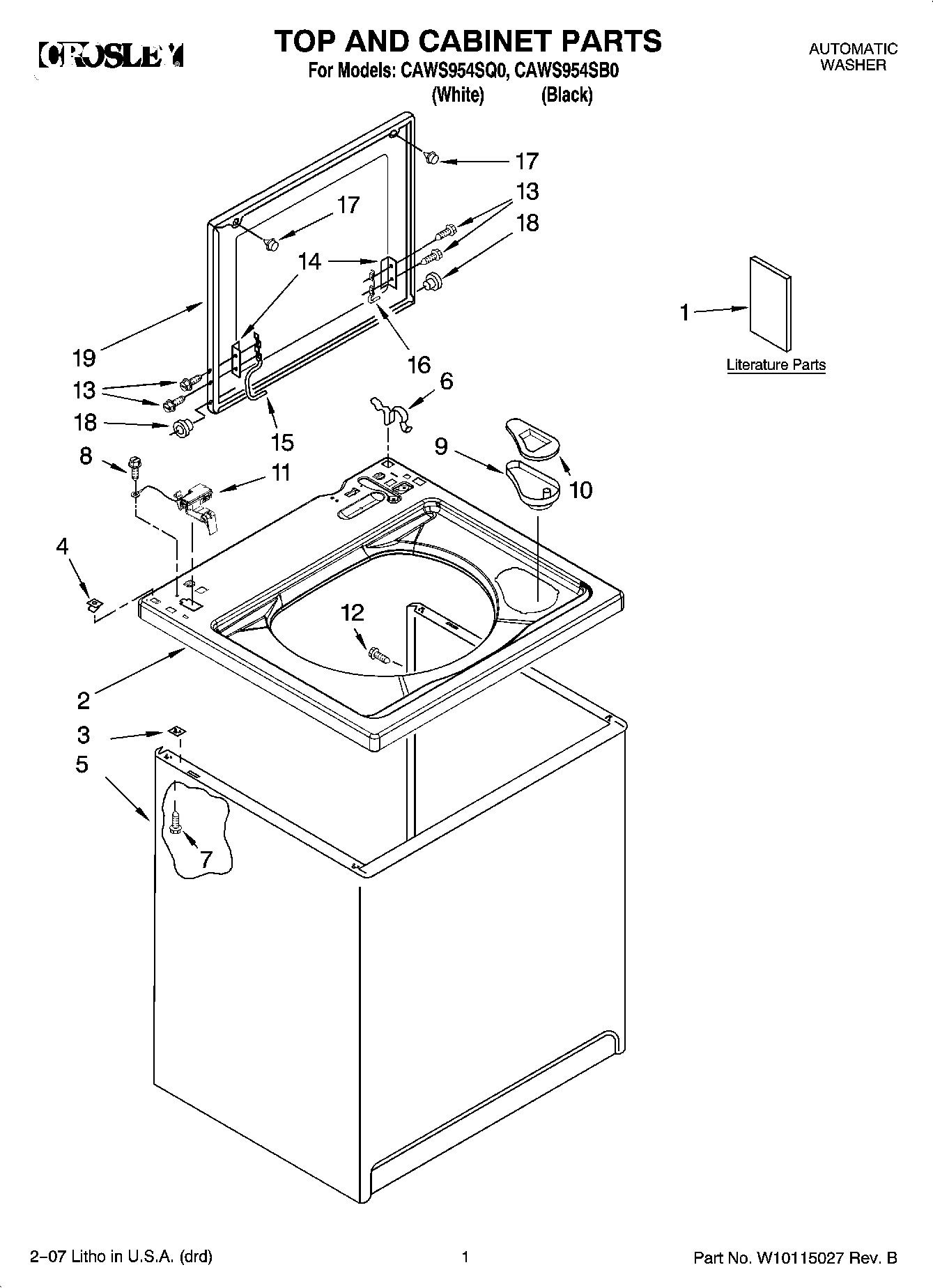

CAWS954SQ0 01 – TOP AND CABINET PARTS

CAWS954SQ0 01 – TOP AND CABINET PARTS

Written by

in

CAWS954SQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
1Feature Sheet
1Wiring Diagram
1Installation Instructions
2Top (Black)
2Top
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
5Cabinet (Black)
6WP62780 Whirlpool Cabinet Clip
7WP3390631 Whirlpool Screw
8WP3351614 Whirlpool Screw
9Dispenser, Bleach
10Cover, Dispenser
11WP8318084 Whirlpool Washer Lid Switch Assembly
12WP308685 Whirlpool Microwave Screw
13SCREW
14WP21097 Whirlpool Pad
15Hinge, Lid (L.H.)
16WP91770 Whirlpool Hinge
17WP9724509 Whirlpool Bumper
18Bearing, Lid Hinge (2)
19Lid (White)
19Lid (Black)
