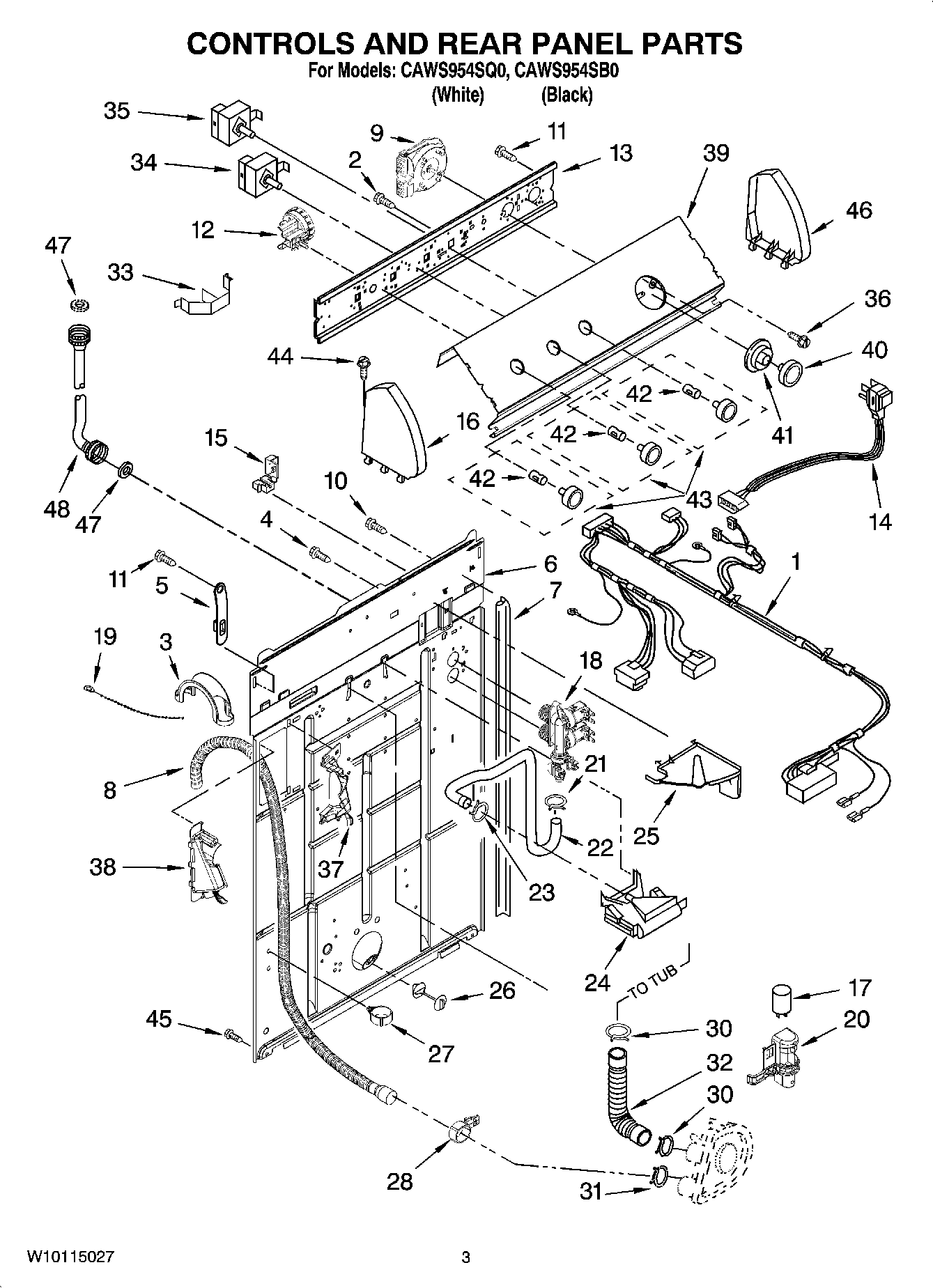

CAWS954SQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WPL 3958077
2	3400073 Whirlpool Screw
3	WP8577378 Whirlpool Retainer
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8577356 Whirlpool Washer Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339250 Whirlpool Washer Water Level Switch
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
17	CAPACITOR
18	WP8578343 Whirlpool Valve
19	WPW10339879 Whirlpool Wire Tie
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WPL 8539874
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	8541668 Whirlpool Washer Clamp
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	WP8578338 Whirlpool Dishwasher Temperature Switch
35	W10851055 Whirlpool Cycle Switch
36	WP3400818 Whirlpool Screw
38	WPW10096921 Whirlpool Hose
39	Panel, Console (White Model)
39	Panel, Console (Black Model)
40	WP8538949 Whirlpool Knob
41	WP8538955 Whirlpool Dial
42	WP8536939 Whirlpool Spring Clip
43	KNOB
44	WP388326 Whirlpool Screw
45	WP3390631 Whirlpool Screw
46	W10820038 Whirlpool Endcap
46	Cap, End (R.H.)
47	WP16123 Whirlpool Washer
48	FILL HOSE 5' W/WASHER
48	WP89503 Whirlpool Washer Fill Hose
